8. Battery, Charging System

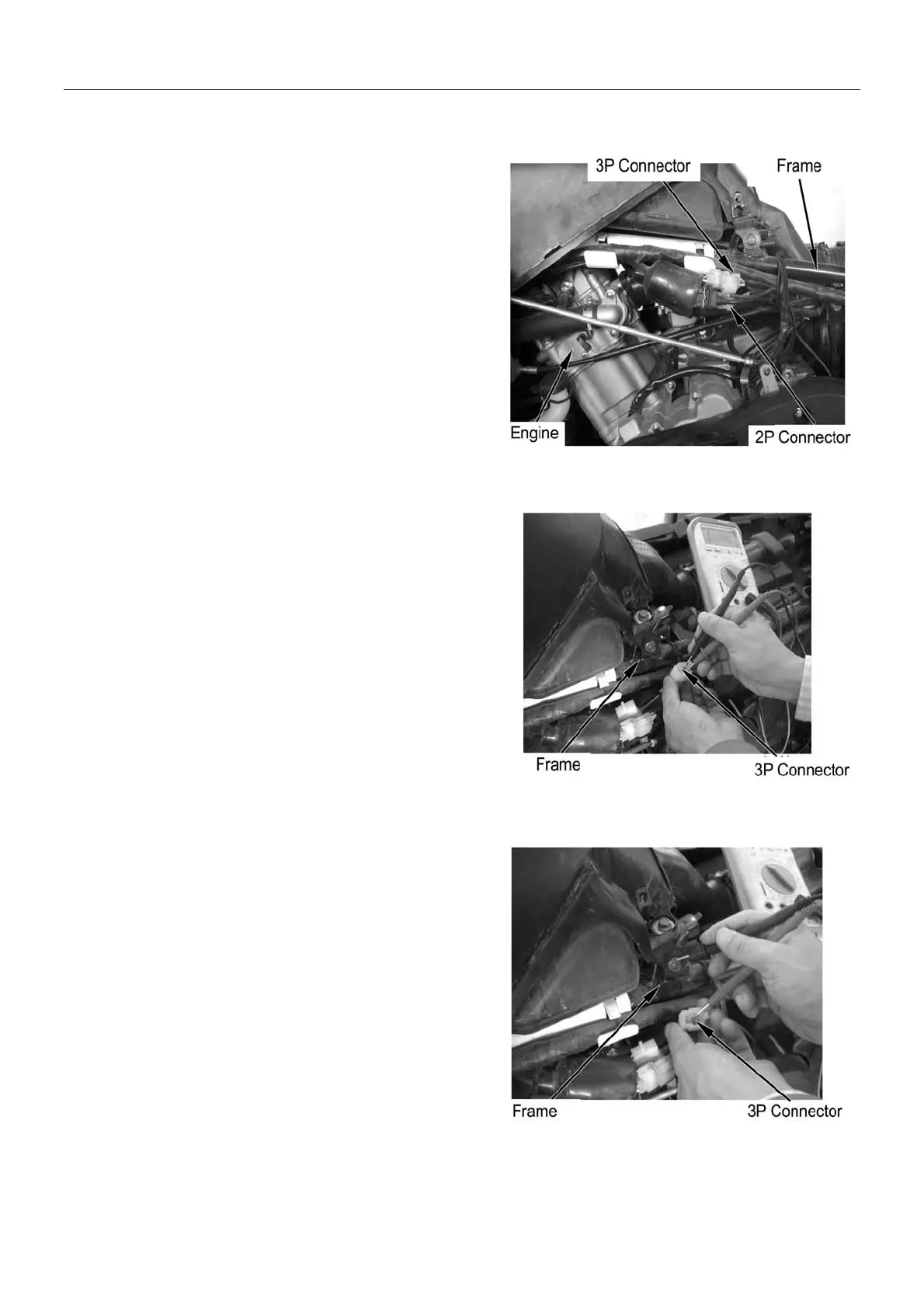

Inspection of AC magneto
Remove left side panel (→2-6)
Disconnect connectors of AC magneto (yellow, yellow,
yellow) and pickup coil (black/white/green).
Measure the resistance between the yellow terminals of
the AC magneto 3P connector.
Resistance: 0.2-0.3Ω ( at 20℃)
Make sure the yellow terminal of AC magneto 3P
connector is not connected with frame body earth wire.
Replace with a new AC magneto in case of any faults
found in above check. (→Engine maintenance manual)
