CG Drives & Automation, 01-5326-01r5 Options 225
13. Options
The standard options available are described here briefly.
Some of the options have their own instruction or
installation manual. For more information please contact
your supplier. See also in “Technical catalogue AC drives”
for more info.

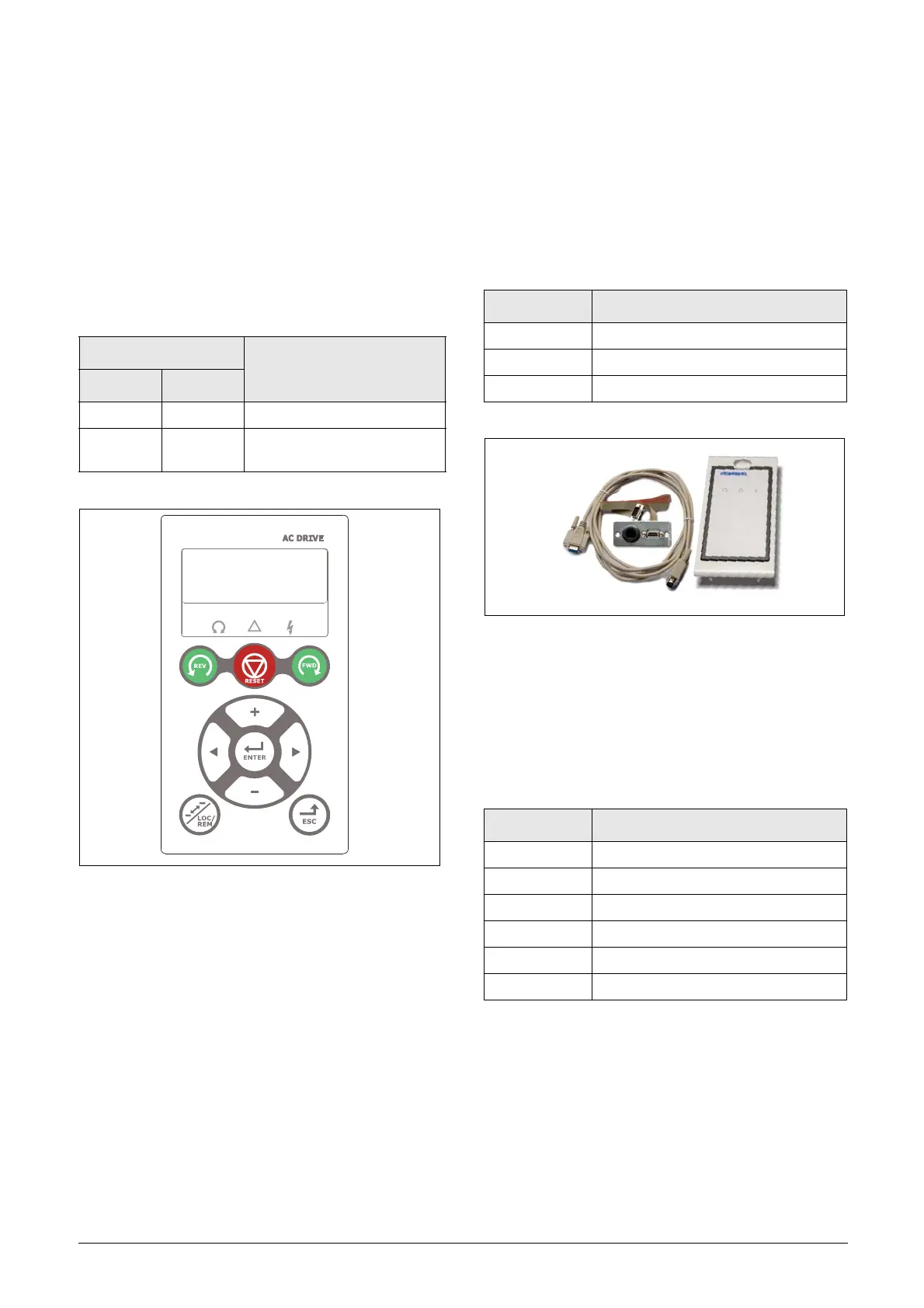

13.1 Control panel
Control panel with a 4-line display.
Fig. 151 Control panel with 4-line display.
The display is back lit and consists of 4 rows, each with
space for 20 characters. The Control panel is equipped with
real time clock function. This means that actual date and
time will be shown at e.g. a trip condition.
There is also an optional Control panel with Bluetooth
communication available for connection with cellphone or
tablet.
13.2 External control panel
kits (4-line)
13.2.1 Control panel kit, including
blank panel
Fig. 152 Control panel kit, including blank panel.
External control panel IP54 suitable for mounting on a
cabinet door. This option is to be used in combination with
an AC drive module ordered with a built-in control panel.
13.2.2 Control panel kit, including
control panel
Part number
Description
IP54 IP20/21
01-6520-00 01-6521-00 4-line PPU (standard)
01-6520-10 01-6521-10
4-line PPU with Bluetooth
(optional)
Part number Description
01-6878-40 Control panel kit (size B)
01-6879-40 Control panel kit (size C)
01-6880-40 Control panel kit (size D and up)
Part number Description
01-6878-00 Standard PPU (size B)
01-6878-10 PPU with Bluetooth (size B)
01-6879-00 Standard PPU (size C)
01-6879-10 PPU with Bluetooth (size C)
01-6880-00 Standard PPU (size D and up)
01-6880-10 PPU with Bluetooth (size D and up)
