CG Drives & Automation,01-5326-01r5 Functional Description 87
11. Functional Description
This chapter describes the menus and parameters in the
software. It also briefly describes how menus and parameters
are shown in the LCD windows in the two different Control
panels that are available for Emotron AC drives versions
IP54 and IP20/21.
There are two models of Control panels available with
different LCD displays and layout.
11.1 2-line LCD display
See chapter “10.3 Control panel with 2-line display”
on page 80 for detailed information.
Preferred View [100]
This menu is displayed at every power-up. During
operation, the menu [100] will automatically be displayed
when the keyboard is not operated for 5 minutes. The
automatic return function will be switched off when the
Toggle and Stop key is pressed simultaneously. As default it
displays the reference and torque values.
Menu “[100] Preferred View” displays the settings made in
menu “[110], 1st line”, and “[120], 2nd line”. See Fig. 92.

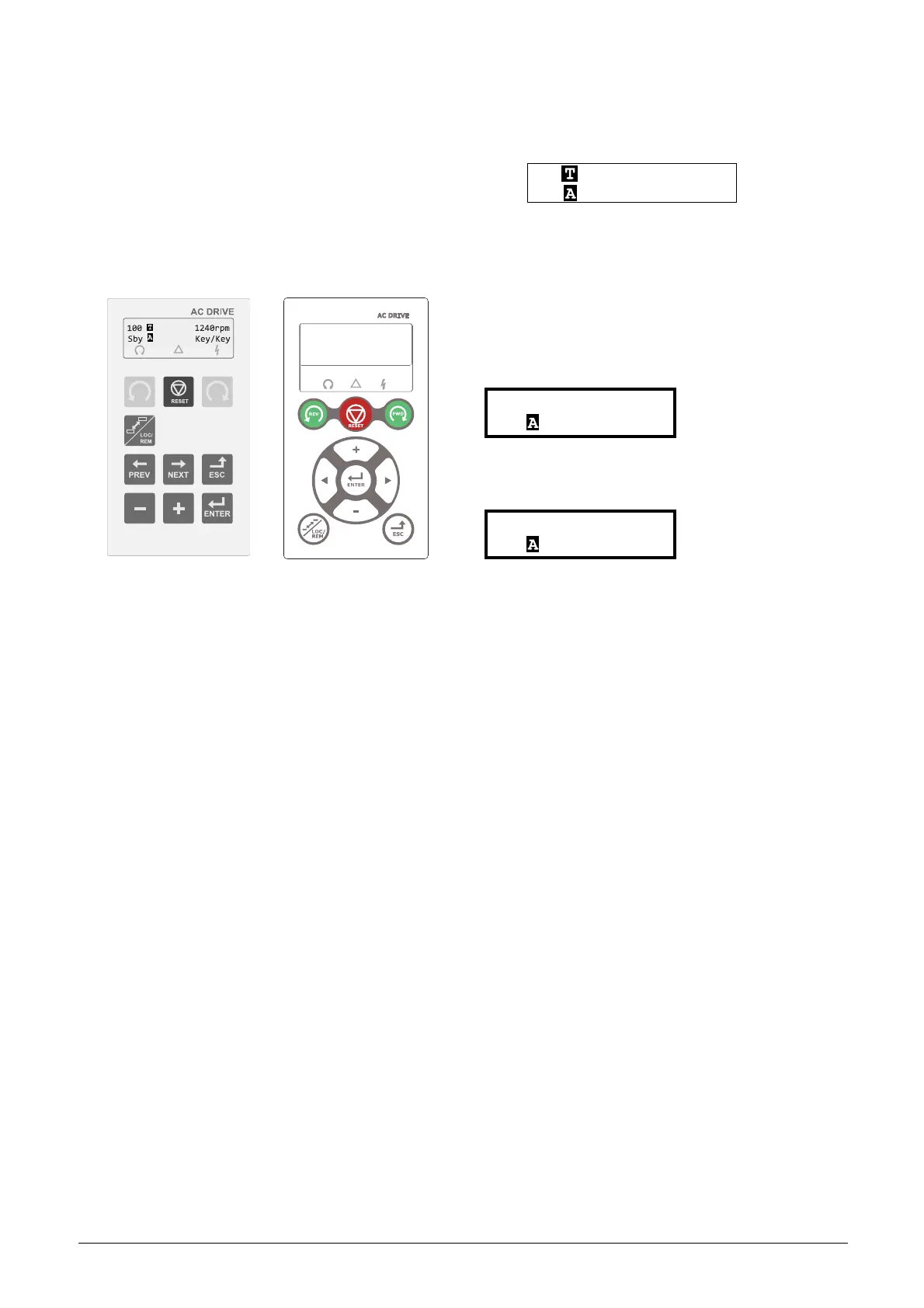

Fig. 92 Display functions
4-line display
2-line display
100 (1st Line)
Stp (2nd Line)
