CN3 (AUX-IN):
The connector is responsible for connecting devices such
as the TV tuner, CD-ROM or MPEG card to receive
sound signals.

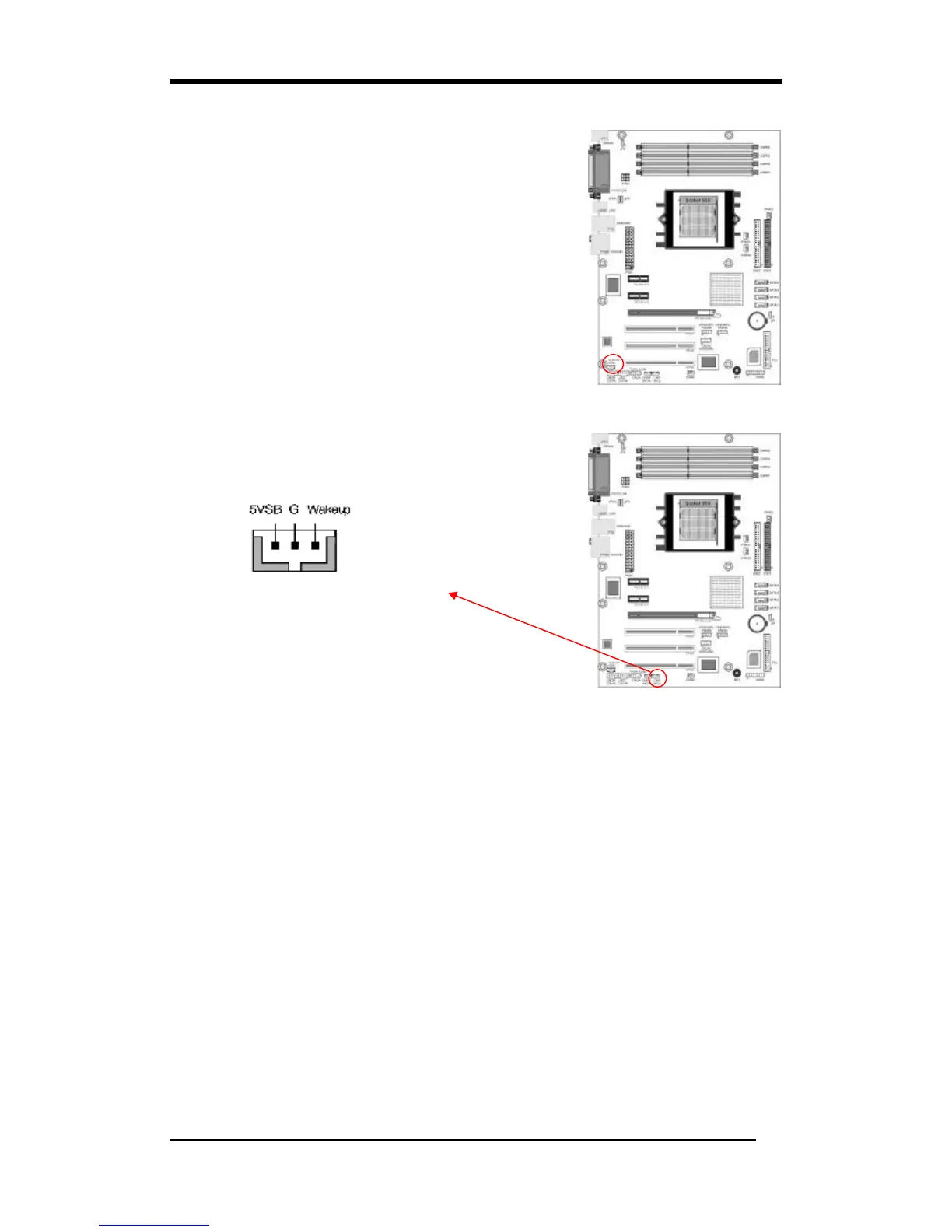

CN5 [WOL (Wake-on-LAN) Connector]:
Enable Wake On LAN in the BIOS's Power Management Menu to use this function.
The capability to remotely manage PCs over networks is a significant factor in
reducing administrative and ownership costs. Magic Packet technology is designed
with WOL ability to LAN controllers. This header is used to connect an add-in NIC
(Network Interface Card) that provides WOL function to the motherboard.
