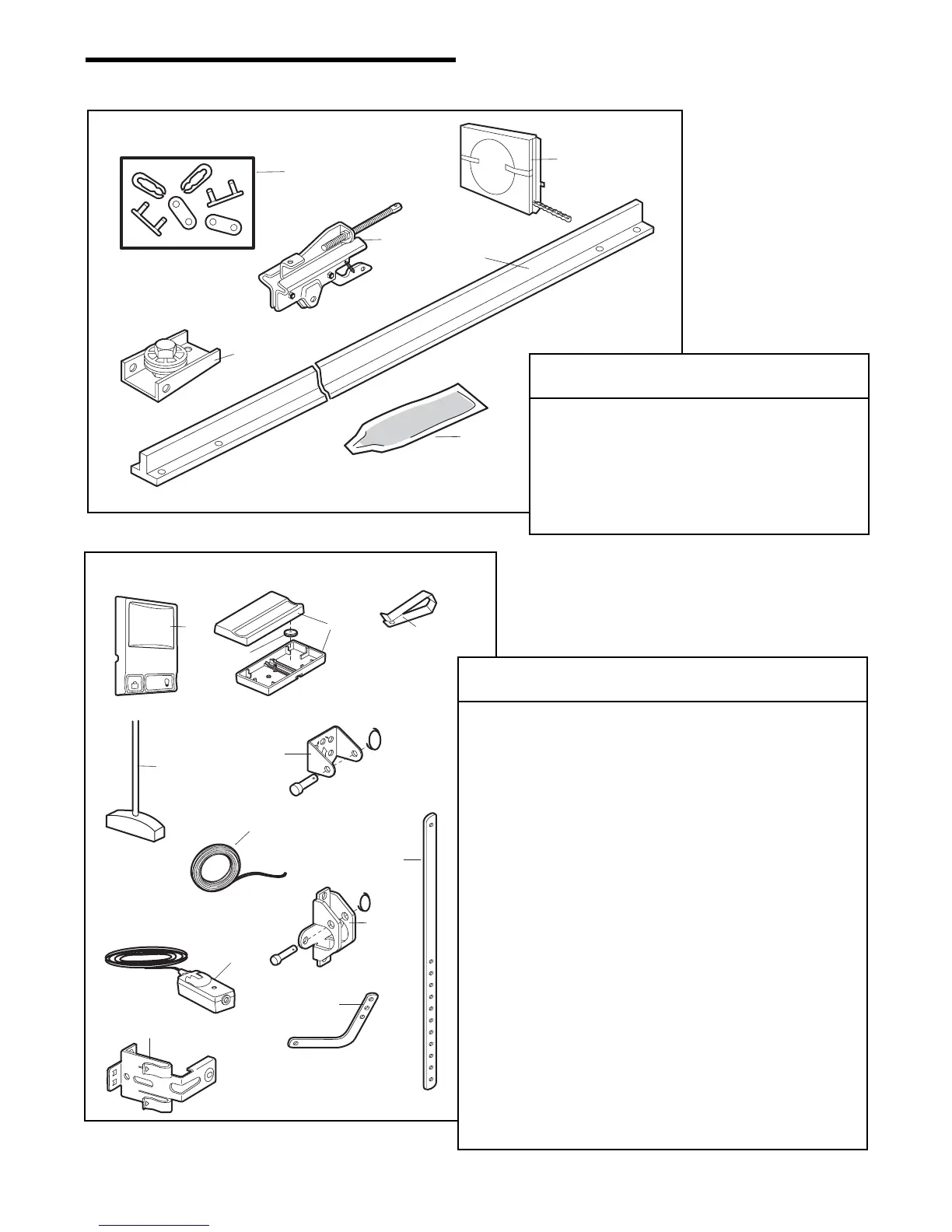

REPAIR PARTS
Rail Assembly Parts
KEY PART
NO. NO. DESCRIPTION
1 4A1008 Master link kit
2 41A4813 Chain pulley bracket
3 41A3489 Complete trolley assembly
4 1707LM One-piece rail
5 41D3484 Full chain assembly
6 83A11-2 Rail grease
7
U
P
C
E
I
L
I
N
G
M
O
U
N
T
O
N
L
Y
9
10
NOTICE
5
6
8
4
11
12
3
2
1
L
O
C
K
L
IG
H
T
Installation Parts
KEY PART
NO. NO. DESCRIPTION
1 41A5273-1 Multi-function door control panel
2 371LM 1 Button remote control
3 10A20 3V2032 Lithium battery
4 29B137 Remote control visor clip
5 41A2828 Emergency release rope and handle
assembly
6 41B4494-1 2-Conductor bell wire, white and
white/red
7 41A4353 Header bracket with clevis pin and
fastener
8 41A5047 Door bracket with clevis pin and
fastener
9 178B35 Curved door arm section
10 178B34 Straight door arm section
11 41A5034 Safety sensor kit (receiving and
sending eyes) with 3' (.9 m)
2-conductor bell wire
12 41A5266-1 Safety sensor brackets (2)
NOT SHOWN
41A2770-6 Installation hardware bag
(includes hardware listed on page 5)
114A3080 Owner’s manual
114A3080SP Owner’s manual – Spanish
