Chamberlain 3265 - Motor Unit Assembly Parts

34
DN
UP

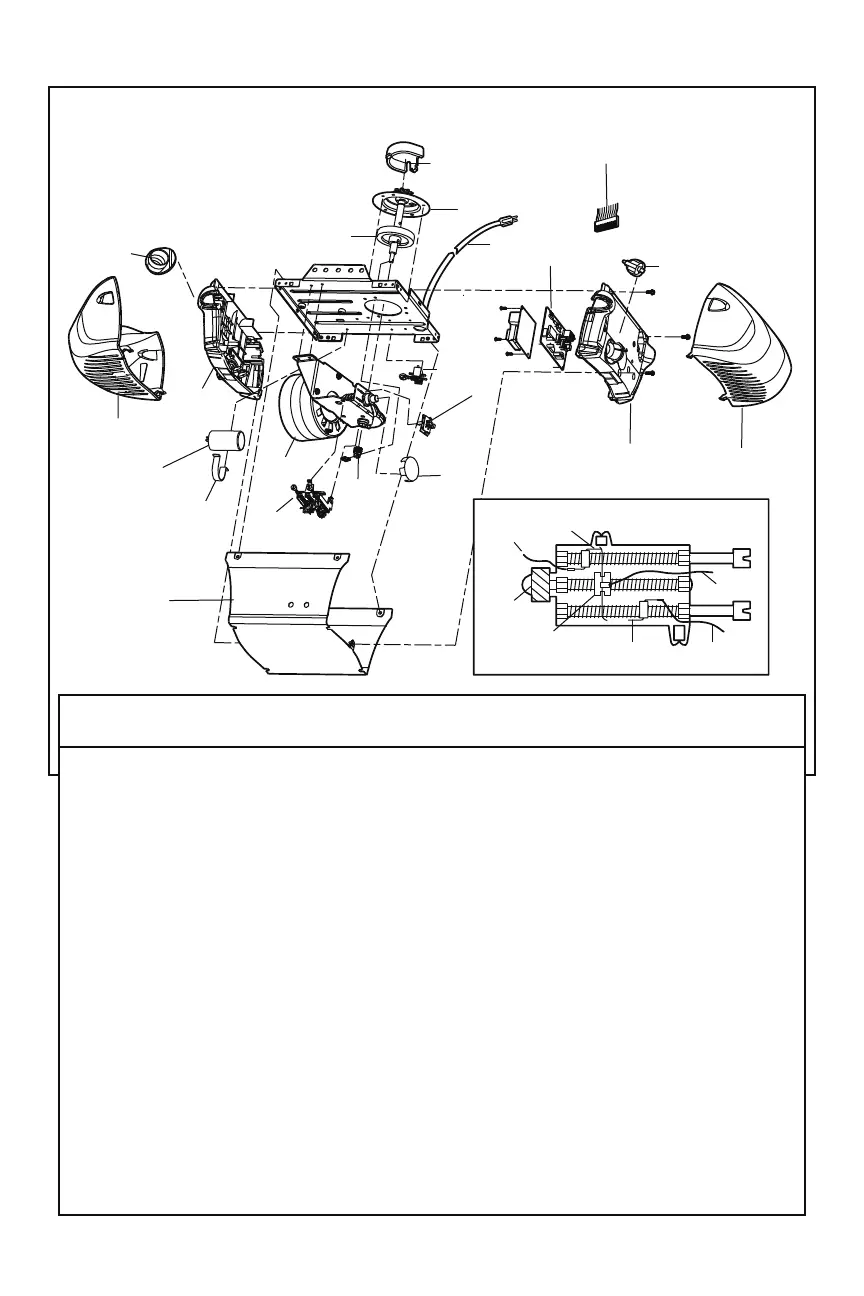

Motor Unit Assembly Parts
KEY PART
NO. NO. DESCRIPTION
1 31D380 Sprocket cover
2 41C4220A Gear and sprocket assembly
Complete with: Spring washer,
thrust washer, retaining ring,
bearing plate, roll pins (2), drive
gear and worm gear, helical
gear w/retainer and grease
3 41A2817 Drive/worm gear kit w/grease,
roll pins (2)
4 41B4245 Line cord
5 41A5484-1 End panel w/all labels
6 4A1344 Light socket
7 108D79 Lens
8 30B532 Capacitor - 1/2 HP
9 12A373 Capacitor bracket
10 41A3150 Terminal block w/screws
11 41D3058 Universal replacement motor &
bracket assembly
Complete with: Motor, worm,
bracket, bearing assembly, RPM
sensor
KEY PART
NO. NO. DESCRIPTION
12 41A5525-1 Cover
13 41A2818 Limit switch drive & retainer
14 41D3452 Limit switch assembly
15 41A2822-1 Interrupter cup assembly
16 41C4398A RPM sensor assembly
17 41AC050-2M Receiver logic board assembly
Complete with: Logic board,
end panel w/all labels, light
socket
18 41C5498 Low voltage wire harness
assembly
41C5497 High voltage wire harness
assembly.
19 41D180-1 End panel w/all labels
NOT SHOWN
41A2826 Motor shaft bearing kit
41A2825 Opener assembly hardware kit
(includes screws not designated
by a number in illustration)
(Up)
Contact
(Down)
Contact
Center Limit
Contact
Yellow Wire
Brown
Wire
Drive
Gear
LIMIT SWITCH
ASSEMBLY
Grey Wire
1
2
3
4
5
6
6
7
7
10
12
11
13
14
15
16
17
19
18
9
8
