Chamberlain 8065 - Power; Connect Power

24
Power
1 Connect Power
To prevent possible SERIOUS INJURY or DEATH from electrocution or fire:
l Be sure power is NOT connected to the opener, and disconnect power to circuit
BEFORE removing cover to establish permanent wiring connection.
l Garage door installation and wiring MUST be in compliance with ALL local
electrical and building codes.
l NEVER use an extension cord, 2-wire adapter, or change plug in ANY way to
make it fit outlet. Be sure the opener is grounded.
To avoid installation difficulties, do not activate the garage door opener at this
time.
To reduce the risk of electric shock, your garage door opener has a grounding type plug
with a third grounding pin. This plug will only fit into a grounding type outlet. If the plug
doesn’t fit into your outlet, contact a qualified electrician to install the proper outlet.

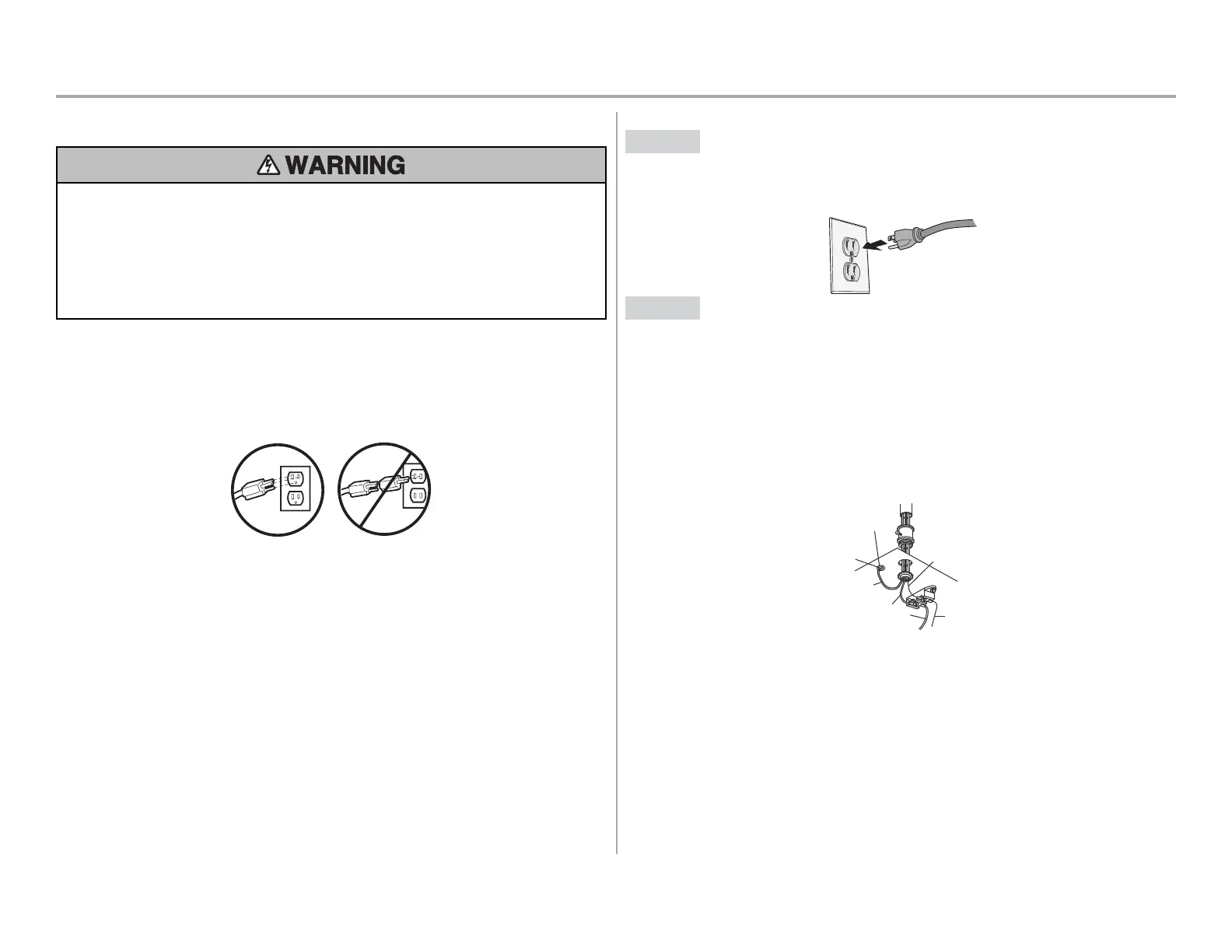

THERE ARE TWO OPTIONS FOR CONNECTINGPOWER:
OPTION A TYPICAL WIRING
1. Plug in the garage door opener into a grounded outlet.
2. DO NOT run garage door opener at this time.
TYPICAL WIRING
OPTION B PERMANENT WIRING
If permanent wiring is required by your local code, refer to the following procedure. To
make a permanent connection through the 7/8 inch hole in the top of the motor unit
(according to local code):
1. Remove the motor unit cover screws and set the cover aside.
2. Remove the attached 3-prong cord.
3. Connect the black (line) wire to the screw on the brass terminal; the white
(neutral) wire to the screw on the silver terminal; and the ground wire to the green
ground screw. The opener must be grounded.
4. Reinstall the cover.
Ground Tab
Gr
een
Ground
Screw
Ground
Wire
White Wire
PERMANENT WIRING
Black
Wire
Black
Wire
