Chamberlain 8587 - Install the Protector System; Protector System Introduction; Safety Reversing Sensors Information

17
Introduction
Be sure power is NOTconnected to the garage
door opener BEFORE installing the safety
reversing sensor.
To preventSERIOUS INJURY or DEATH from
closing garage door:
• Correctly connect and align the safety
reversing sensor.Thisrequired safety
device MUST NOT be disabled.
• Install the safetyreversing sensor so beam
is NO HIGHER than 6" (15 cm) above
garage floor.
Install the Protector System
®
IMPORTANTINFORMATIONABOUTTHESAFETYREVERSINGSENSORS
The safety reversingsensors must be connected andaligned correctly before the garage dooropener will move in the down direction.
The sending sensor (with an amber LED) transmitsan invisible light beam to the receiving sensor (with a green LED).Ifan obstruction breaksthe light
beam while the door is closing,the door will stop and reverse to the full open position, and the garage door opener lights will flash 10 times.
NOTE: For energy efficiency the garage door opener will enter sleep mode when the door is fully closed. The sleep mode shuts the garage door
opener down until activated. The sleep mode is sequenced with the garage door opener light bulb; as the light bulb turns off the sensor LEDs will turn
off and whenever the garage door opener lights turn on the sensor LEDs will light. The garage door opener will not go into the sleep mode until the
garage door opener has completed 5 cycles upon power up.
When installingthe safety reversingsensors check the following:
• Sensors are installed inside the garage,one on either side ofthe door.
• Sensors are facing each other with the lenses aligned and the receiving sensor lensdoesnotreceive directsunlight.
• Sensors are no more than 6 inches (15 cm) above the floor and the lightbeam is unobstructed.

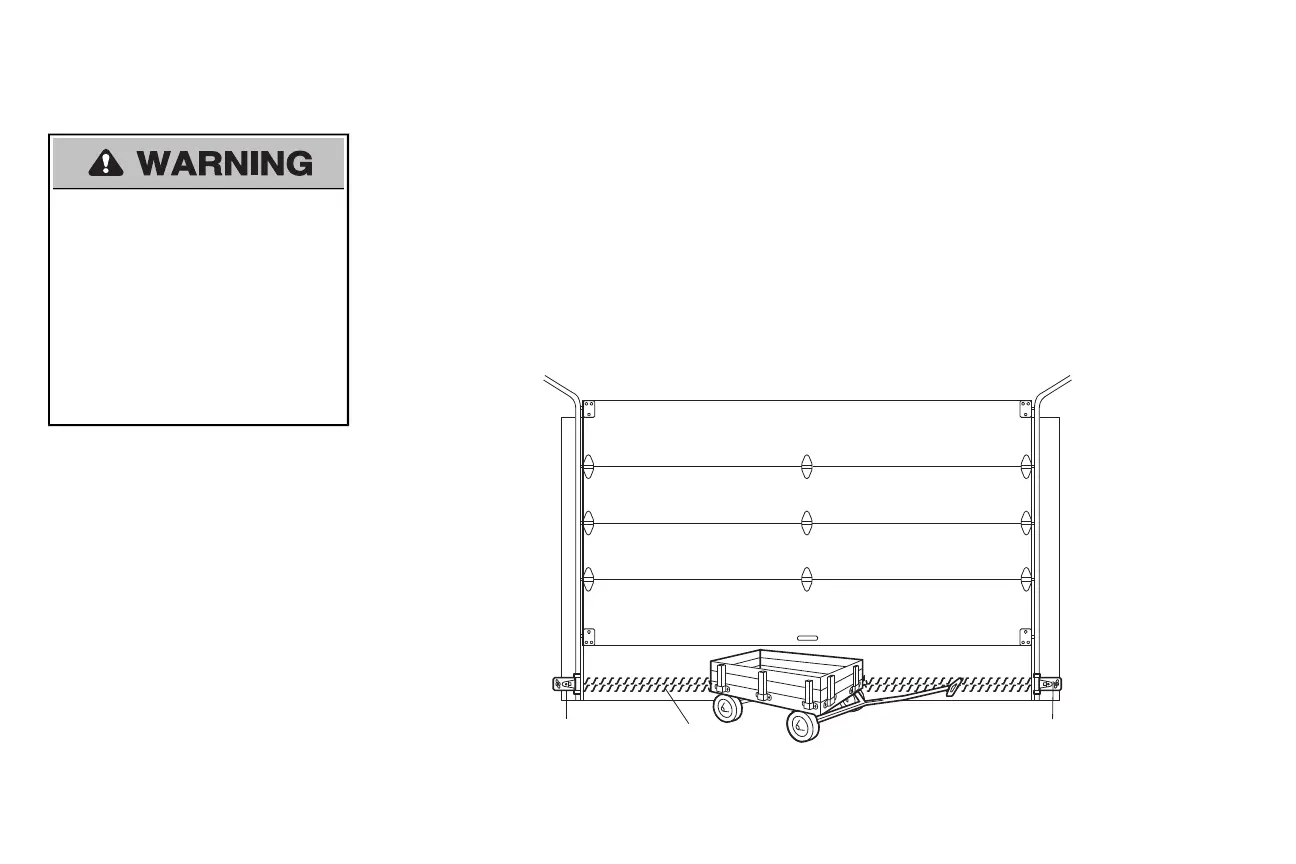

Invisible Light Beam
Protection Area
Safety Reversing Sensor
6" (15 cm) max. above floor
Safety Reversing Sensor
6" (15 cm) max. above floor
