General Information

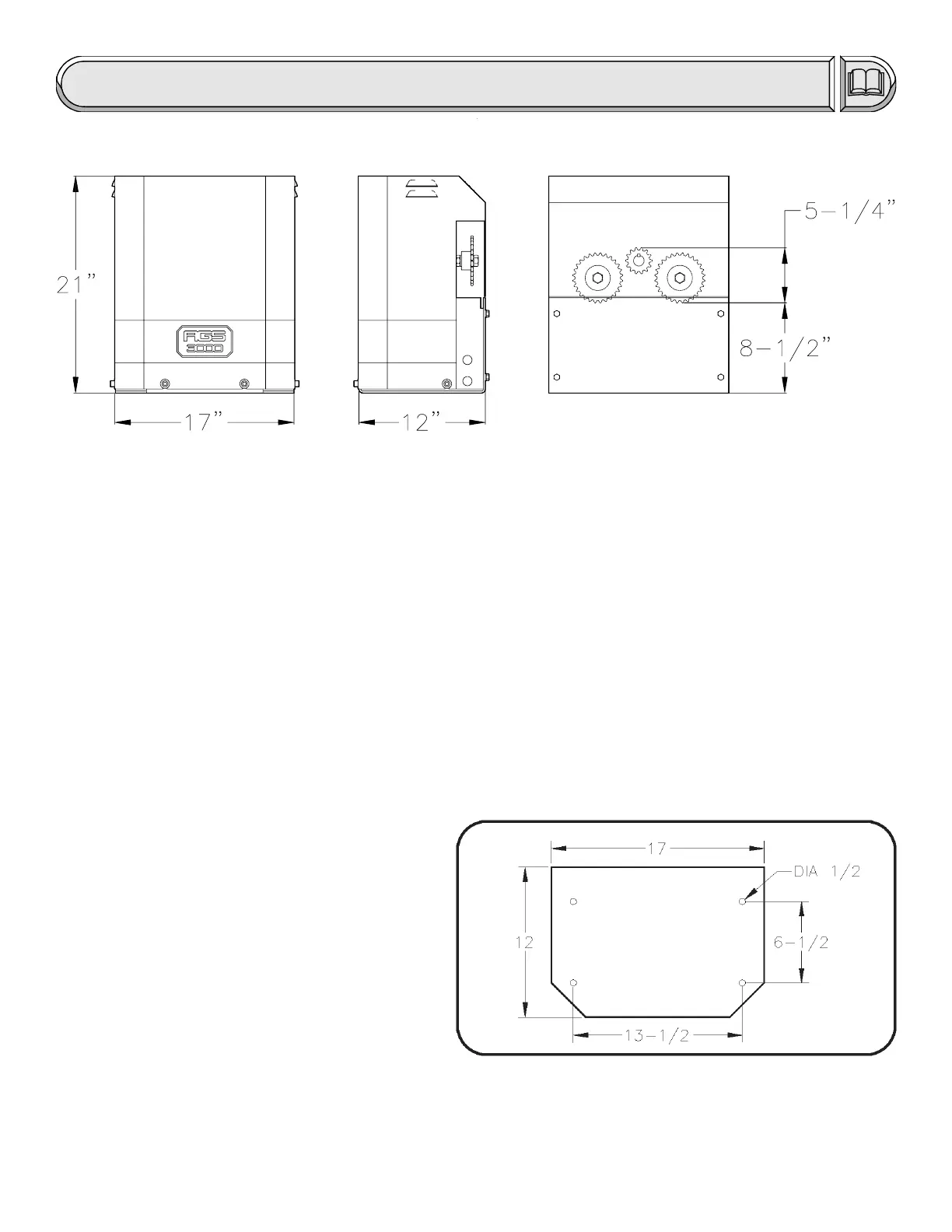

OVERALL DIMENSIONS: Height: 21" (53 cm) Length: 12" (30 cm) Width: 17" (43 cm)
SHIPPING WEIGHT: 140 pounds (64 kg)
z Options: Steel Mounting Stand: 23 pounds (10 kg)
POWER REQUIREMENT: Dedicated 115 Volt AC (+/- 10V), 5 AMP Power Circuit
APPLICATIONS:
z Maximum Gate Weight: 1,500 pounds (680 kg)
z Maximum Gate Length: 40 feet (12 m)
z Maximum Gate Speed: 10in/sec (12in/sec also available)
INCLUDED WITH OPERATOR:
z 40-Feet of # 41 Roller Chain
z 2-Master Links # 41
z 2-Zinc Plated Chain Bolts
z 2-Chain Brackets, Right and Left
z 2-U-Bolts, Round (for chain brackets)
z 2-U-Bolts, Square (for chain brackets)
z 2-Safety Safety Warning Placards
z 1-Hex Wrench 5/16"
z 1-Instruction Manual
z 1-Flexible Conduit End Fitting 1/2"
z 4-Sleeve Anchor Bolts (red heads) 3/8" X 3"
z 1-Hex Bolt with Nut, 1/4"-20
z 1-Self Tapping Screw, 1/4"-20
BASE PLATE HOLE PATTERN
