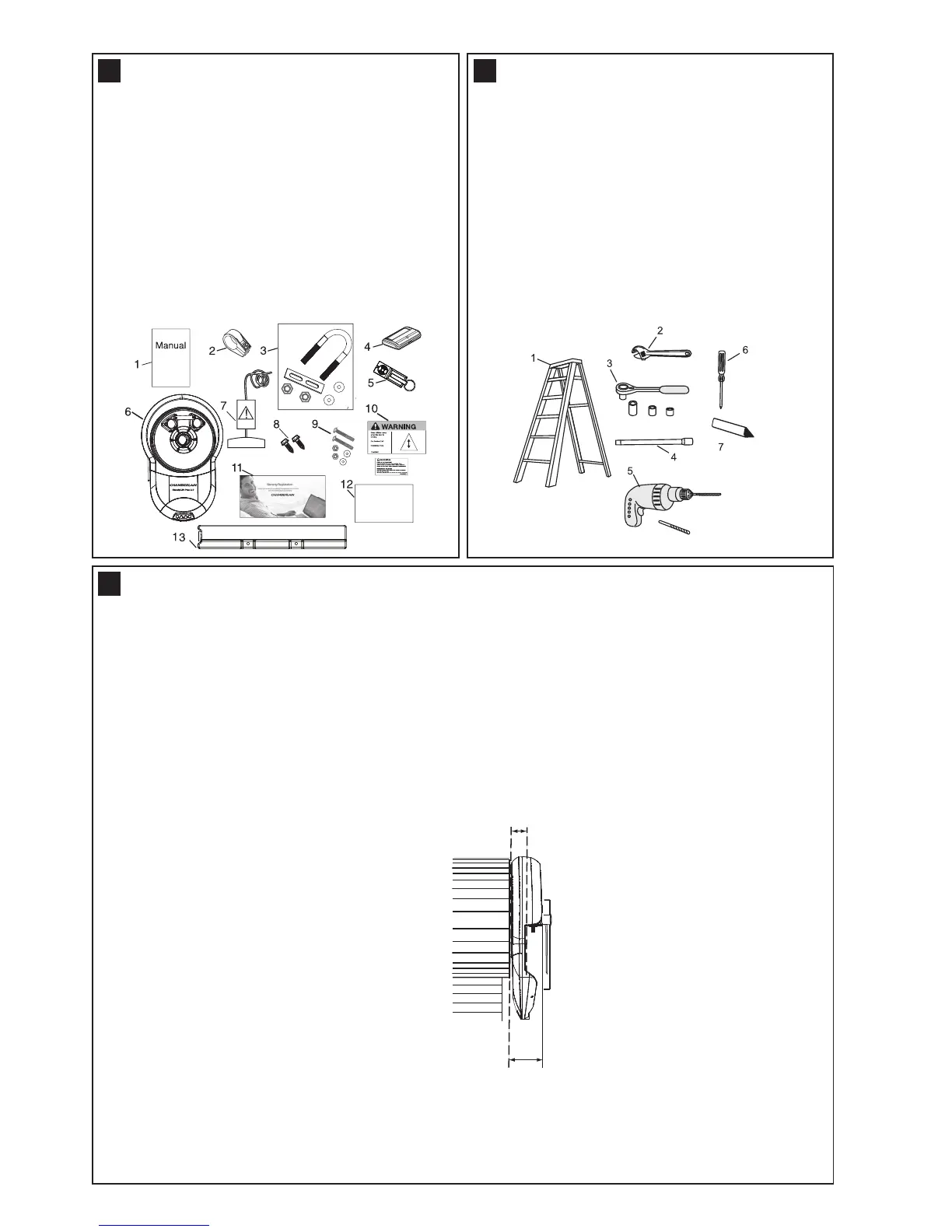

Chamberlain CR625EVO - Carton Inventory; Tools Required; Door Requirements

1. Instruction manual (this document)
2. Stop collar
3. Clamp bracket, plates, washers (2) and nuts (2)
4. E940C car visor transmitter (1)
5. E950C transmitter (1)
6. Opener
7. Manual release handle
8. Self tapping screws (2)
9. Weight bar screws (2), washers (2) and nuts (2)
10. Warning label and risk of entrapment label
11. Warranty registration card
12. Quick start guide
13. Weight bar
C
ARTON INVENTORY
1
Quick Start Guide
13 mm, 10 mm, 8 mm
5.5 mm
M
a
r
k
e
r
P
e
n
TOOLS REQUIRED
2
1. Ladder
2. Adjustable wrench for U-bolts already installed
on the door
3
. 8 mm socket, 10 mm socket and 13 mm extended
socket and socket wrench
4. 300 mm socket extension (for minimum side-room
installations)
5
. Drill and 5.5 mm drill bit
6. Philips-head screwdriver
7. Marker pen
8. Door stand or similar device to safely support door
(not shown)
DOOR REQUIREMENTS
3
Ensure that there is at least 40 mm from the edge of the curtain to the edge of the bracket. If the roller door
drum is on the edge of the curtain or is a smaller diameter, additional clearance may be required.
Assemble the opener to the door axle and the exisitng door bracket using the U clamp assembly provided.
Tighten to 25-28 Nm. Full installation process is in section 12.
95 mm
Minimum distance from
edge of curtain to edge of
door bracket 40 mm
The HandyLift Plus 2.0 (CR625EVO) is suitable for spring balanced Residential Rolling garage doors with:
• Maximum door height of 4.5 m
• Maximum curtain area of 13 m
2
• Maximum door mass of 80 kg
*The obstruction detection beams must be installed if the force at the edge of the closing door exceeds 400 N
(40 kgf). Door axle diameter must not exceed 35 mm.
2
