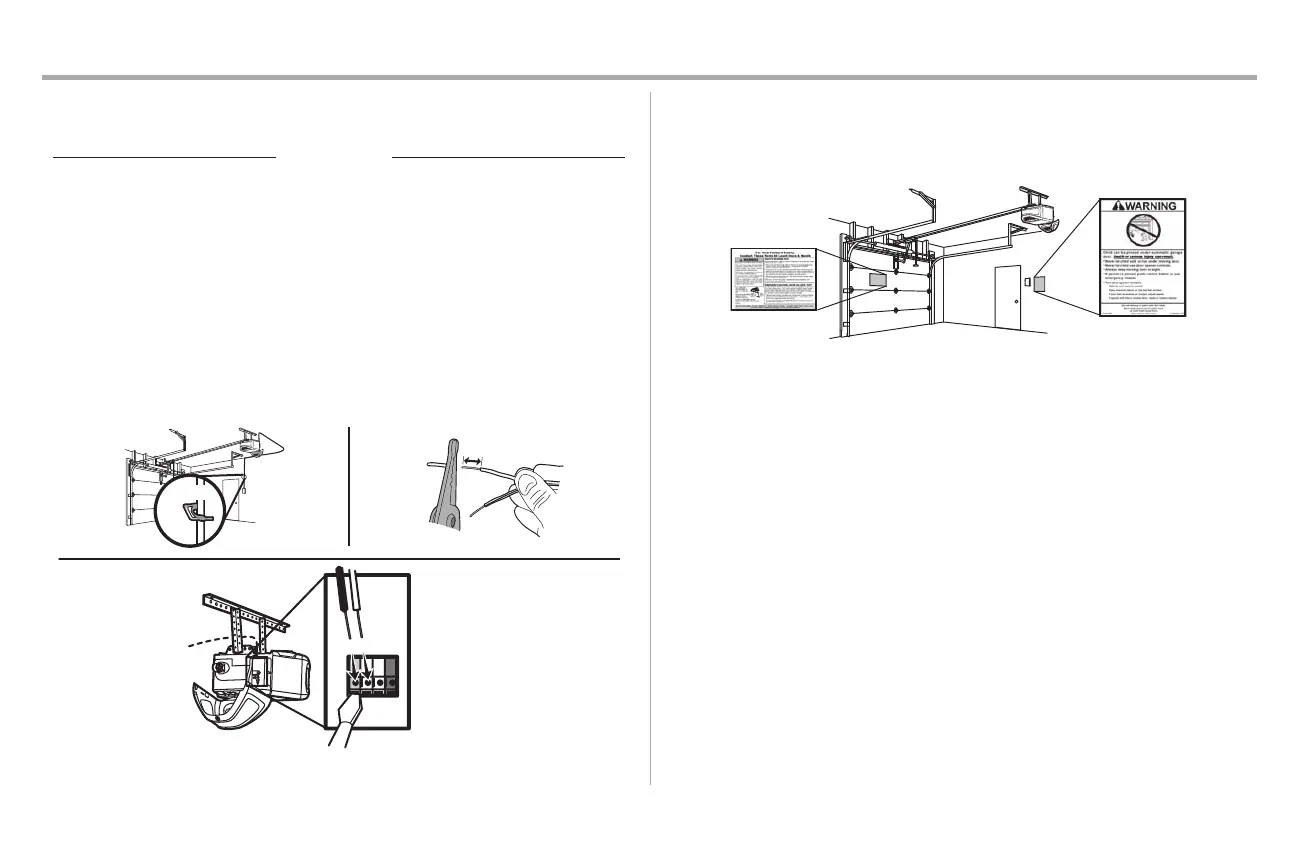

STEP 11 Wire the door control to the garage door opener
HARDWARE
Ins
ulated
Staple
(Not Shown)
1. Run the white and red/white wire from the door control to the garage door opener. Attach the
wire to the wall and ceiling with the staple (notapplicable for gang boxor pre-wired
installations). Do notpierce the wire with the staple as this may cause a short or an open
circuit.
2. Strip 7/16 inch (11 mm) ofinsulation from the end of the wire near the garage door opener.
3. Connectthe wire to the red and white terminals on the garage door opener.If your garage is
pre-wired make sure you use the same wires that are connected to the door control.To insert
or release wires from the terminal, push in the tab with screwdriver tip.
Staple
RED
WHITE
WHITE
GREY
7/16" (11 mm)
2
3
1
STEP 12 Attach the warning labels
1. Attach the entrapment warning label on the wall near the door control with tacksor staples.
2. Attach the manual release/safetyreverse test label in a visible location on the inside ofthe
garage door.
