3

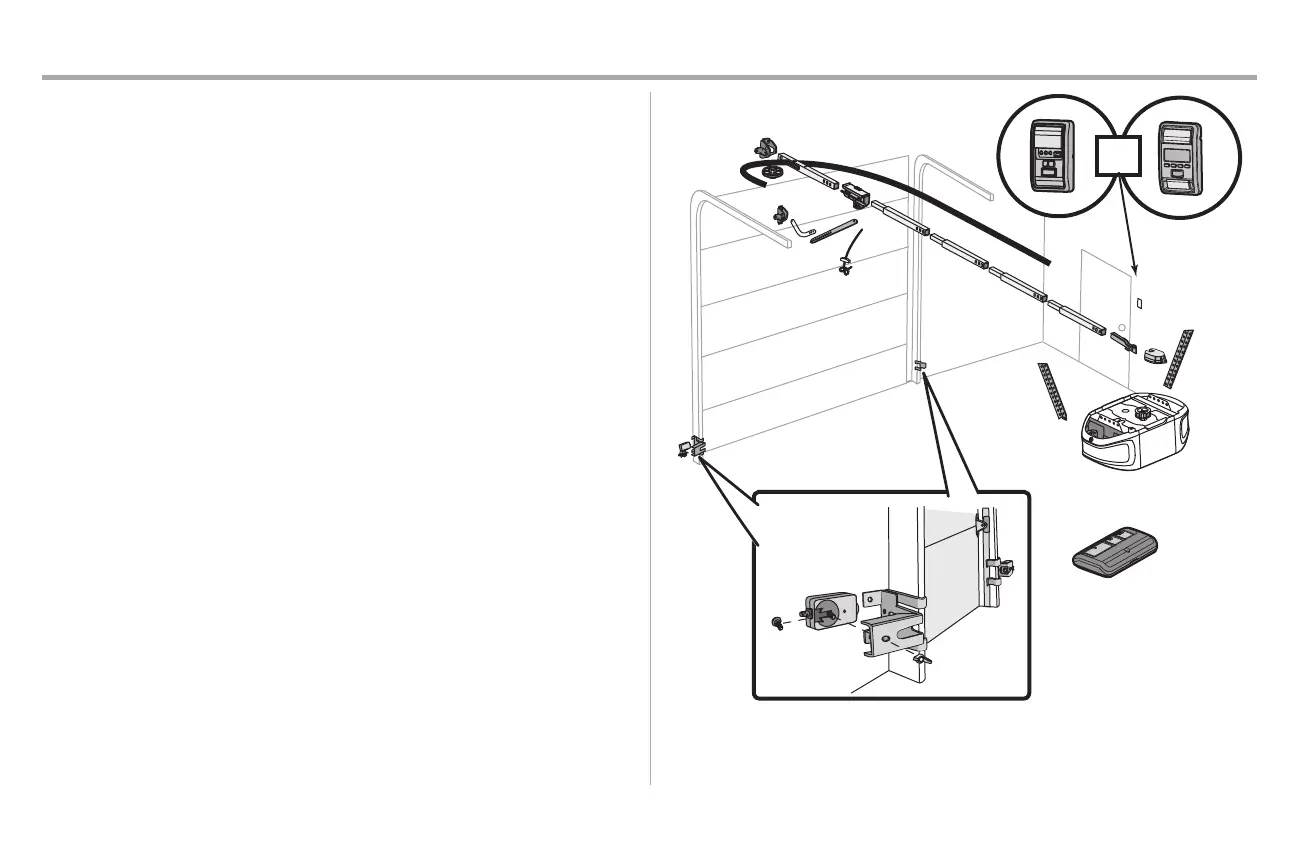

Carton Inventory
Your garage door opener is packaged in one carton which contains the motor unitand all parts
illustrated below. Accessories varydepending on the garage door opener model purchased. Depending
on your model, other accessories may be included with your garage door opener. Instructionsfor these
accessorieswill be attached to the accessoryand are notincluded in thismanual.Ifanything is missing,
carefully check the packing material. Hardware for assembly and installation is shown on the next page.
Save the carton and packing material until the installation and adjustmentiscomplete.The images
throughout this manual are for reference onlyand your productmay look different.
A. Header bracket
B. Pulley
C. Door bracket
D. Curved door arm
E. Straight door arm
(Packaged inside front rail section)
F. Trolley
NOTE: Be sure to assemble the trolley before sliding onto rail.
G. Emergency release rope and handle
H. Rail (1 front and 4 center sections)
I. Hanging brackets (2)
(Packaged inside the front rail section)
J. Garage door opener (motor unit)
K. Sprocket cover and screws
L. “U” bracket
M. Belt
N. Door control (Motion-Detecting Control Panel or Smart Control Panel
®
)
O. Remote control
P. The Protector System
®
Safety reversing sensors with 2 conductor white and white/black wire attached: Sending Sensor (1),
Receiving Sensor (1), and Safety Sensor Brackets (2)
NOTSHOWN
White and red/white wire
Owner's manual
Preparation
