Chamberlain HD920EV User Manual

1
7
5
3
4
3
9
10
6
8
2
4
12
11a
11b

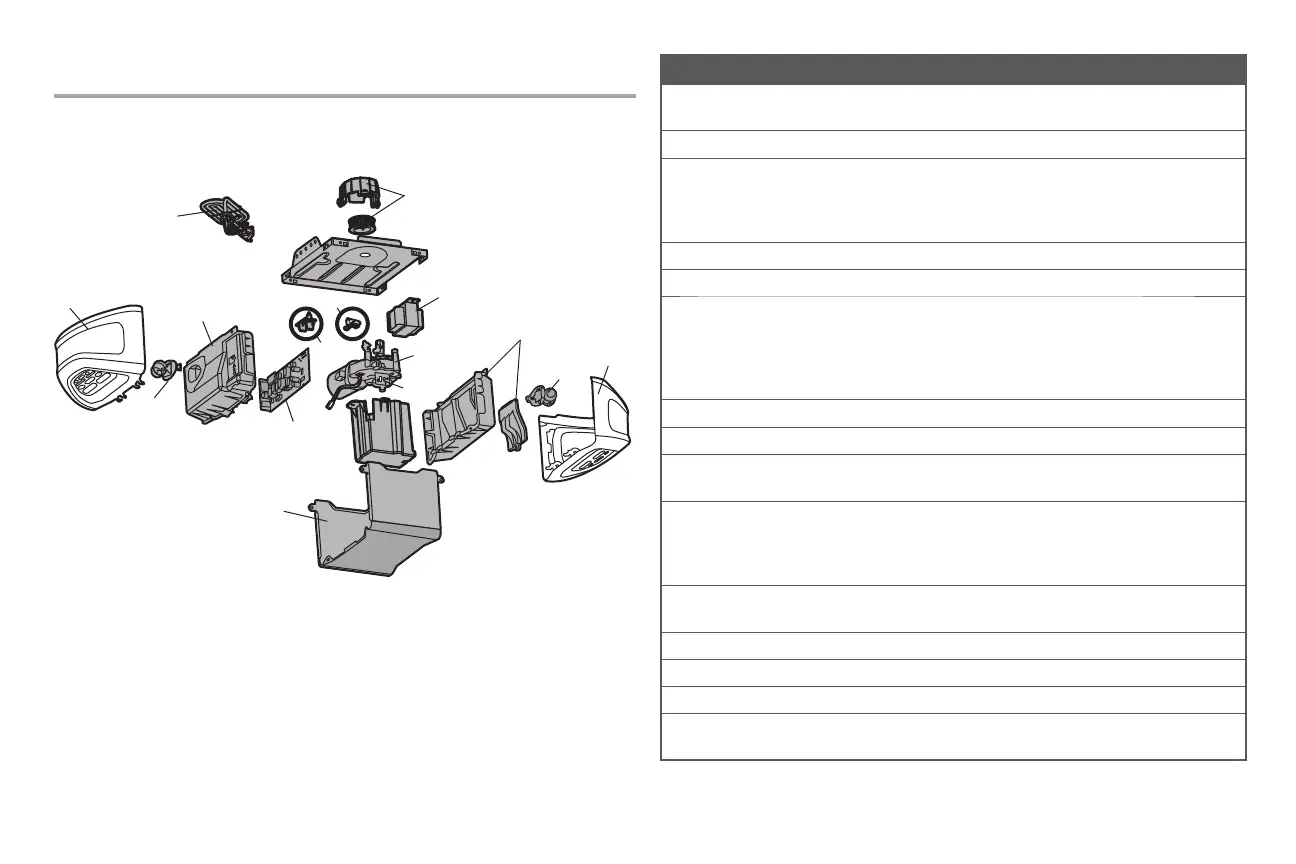

Repair Parts
Description Part Number
1
Sprocket and Sprocket Cover with Screws (Model HD930EV ONLY)
Sprocket and Sprocket Cover with Screws (All other models
041C1751
41C589-2
2
End Panel with light socket 41D7639
3 Light Lens
Model WD962KEV/KPEV/MLEV
Model HD920EV/HD930EV
Model LW5000EV
41D7570
41D7572
41D7571
4 Light Socket
41C279
5 Transformer
41A7635
6 Cover
Model WD962KEV/KPEV/MLEV
Model HD920EV
Model LW5000EV
Model HD930EV
41A7620-6
41A7620-3
41A7620
041A7620-15
7 Motor with Travel Module
41D1739-1
8
End Panel for Receiver Logic Board with light socket
41D7638
9
Receiver Logic Board (Model HD930EV ONLY)
Receiver Logic Board (All other models)
045DCT125
45DCT
10
Line Cord (Models manufactured before
October 2012)
Line Cord (Models manufactured after
October 2012)
41B135-1
41B4245-1
11a
Filter Board with Screws
(Models manufactured before October 2012)
41B7611
11b
Terminal Block (Models manufactured after October 2012) 41A3150
12
Travel Module 41A7114-7
Not Shown
Wire Harness with Screws (Models manufactured before October 2012)
Wire Harness with Screws (Models manufactured after October 2012)
41B7418
041B7610-1
© 2012, The Chamberlain Group, Inc.
114A4242J All Rights Reserved
