11

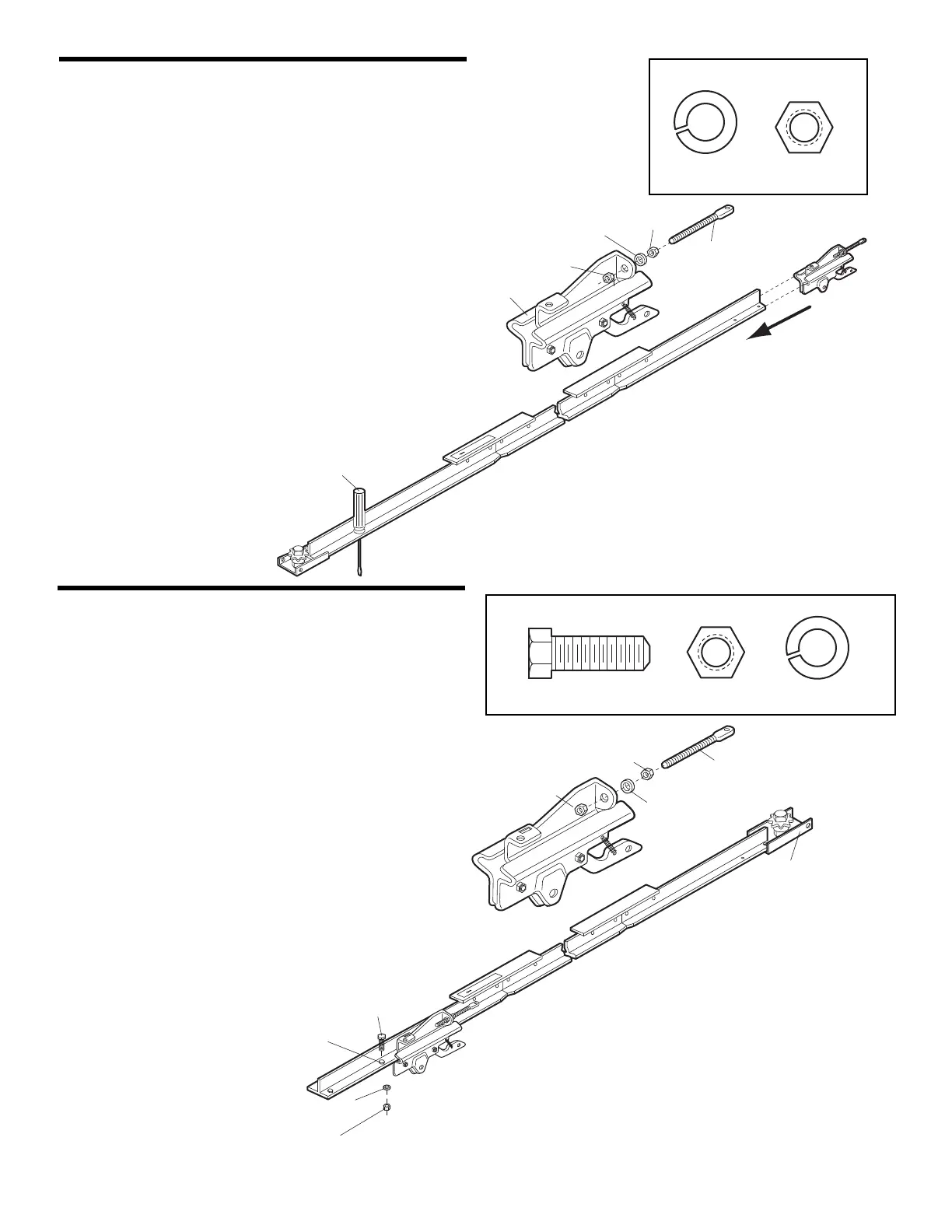

ASSEMBLY STEP 2
For Sectional and One-Piece Doors Only
Install the Trolley
Attach the trolley threaded shaft to the trolley with the
lock washer and nuts as shown.
As a temporary stop, insert a screwdriver into the hole
in the front end of the rail.
Slide the trolley assembly along the rail to the
screwdriver stop.
NOTE: If trolley hits against any nuts on the rail, the
bolts and nuts were attached from the wrong side and
must be repositioned. Review Assembly Step 1.
Trolley
Threaded
Shaft
Lock Washer
5/16"
Outer Nut
5/16"
Inner Nut
5/16"
Trolley
Temporary Stop
Screwdriver
TO G
A
RA
GED
OOR
Lock Washer
5/16"
Nut
5/16"-18
HARDWARE SHOWN ACTUAL SIZE
ASSEMBLY STEP 2
For Sliding and Swinging Gates Only
Install the Trolley
Attach the trolley threaded shaft to the trolley with the
lock washer and nuts as shown.
Insert a hex bolt into the hole in the front end of the rail.
Slide the trolley assembly along the rail until it rests
against the hex bolt (trolley stop).
NOTE: If trolley hits against any nuts on the rail, the
bolts and nuts were attached from the wrong side and
must be repositioned. Review Assembly Step 1.
Outer Nut
5/16"
Trolley
Threaded
Shaft
Lock Washer
5/16"
Inner Nut
5/16"
ROODE
GAR
A
G
O
T
Hex Bolt
Trolley Stop
Hex Bolt
5/16"-18x7/8"
Nut
5/16"-18
Lock Washer
5/16"
Chain Pulley
Bracket
Nut
5/16"-18
Lockwasher
5/16"
Hex Bolt
5/16"-18x7/8"
HARDWARE SHOWN ACTUAL SIZE
