22
To prevent possible SERIOUS INJURY or DEATH from
electrocution:
• Be sure power is not connected BEFORE installing door
control.
• Connect ONLY to 24 VOLT low voltage wires.
To prevent possible SERIOUS INJURY or DEATH from a
closing garage door:
• Install door control within sight of garage door, out of
reach of children at a minimum height of 1.5 m, and away
from all moving parts of door.
• NEVER permit children to operate or play with door control
push buttons or remote control transmitters.
• Activate door ONLY when it can be seen clearly, is properly
adjusted, and there are no obstructions to door travel.
• ALWAYS keep garage door in sight until completely closed.
NEVER permit anyone to cross path of closing garage door.

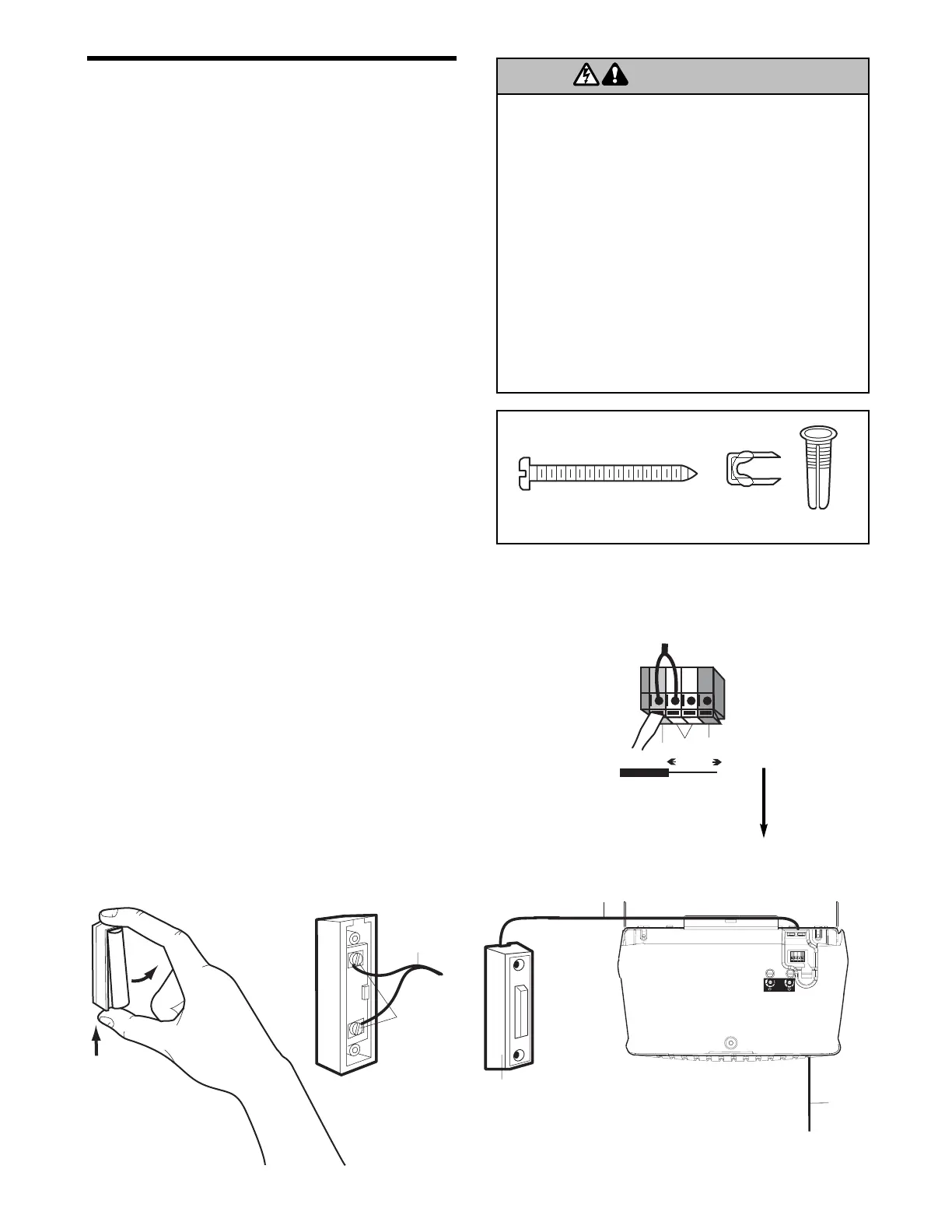

INSTALLATION STEP 6
Install the Door Control
Locate the door control within sight of the door at a
minimum height of 1.5 m where small children
cannot reach, and away from all moving parts of the
door and door hardware.
1. Strip 11 mm of insulation from one end of the bell
wire. Connect it to the two screw terminals on the
back of the door control by color: white wire to 2
and white/red wire to 1.
2. Remove the cover from the Lighted Door Control.
Fasten the Lighted Door Control Button securely
with 6ABx1-1/2" screws. If installing into drywall,
drill 5/32" holes and use the anchors provided.
3. Run the bell wire up the wall and across the
ceiling to the motor unit. Use insulated staples to
secure the wire in several places. Do not to pierce
the wire with a staple, creating a short or open
circuit.
4. Receiver quick-connect terminals and the antenna
are located on the back panel of the motor unit.
Position the antenna wire as shown.
5. Strip 11 mm of insulation from end of bell wire.
Connect the bell wire to the quick-connect
terminals as follows: white to white and white/red
to red.
NOTE: When connecting multiple door controls to
the opener, twist same color wires together. Insert
wires into quick-connect holes: white to white and
red/white to red.
6. Use tacks or staples to permanently attach the
entrapment warning label to the wall near the door
control, and the manual release/safety reverse
label in a prominent location on the inside of the
garage door.
WIRING INSTRUCTIONS FOR ACCESSORIES
The Protector System™: To opener terminals: White
to White and Black to Grey.
Outside Keylock Accessory connections: To opener
terminals: Red/white to Red and White to White.
