NOTICE

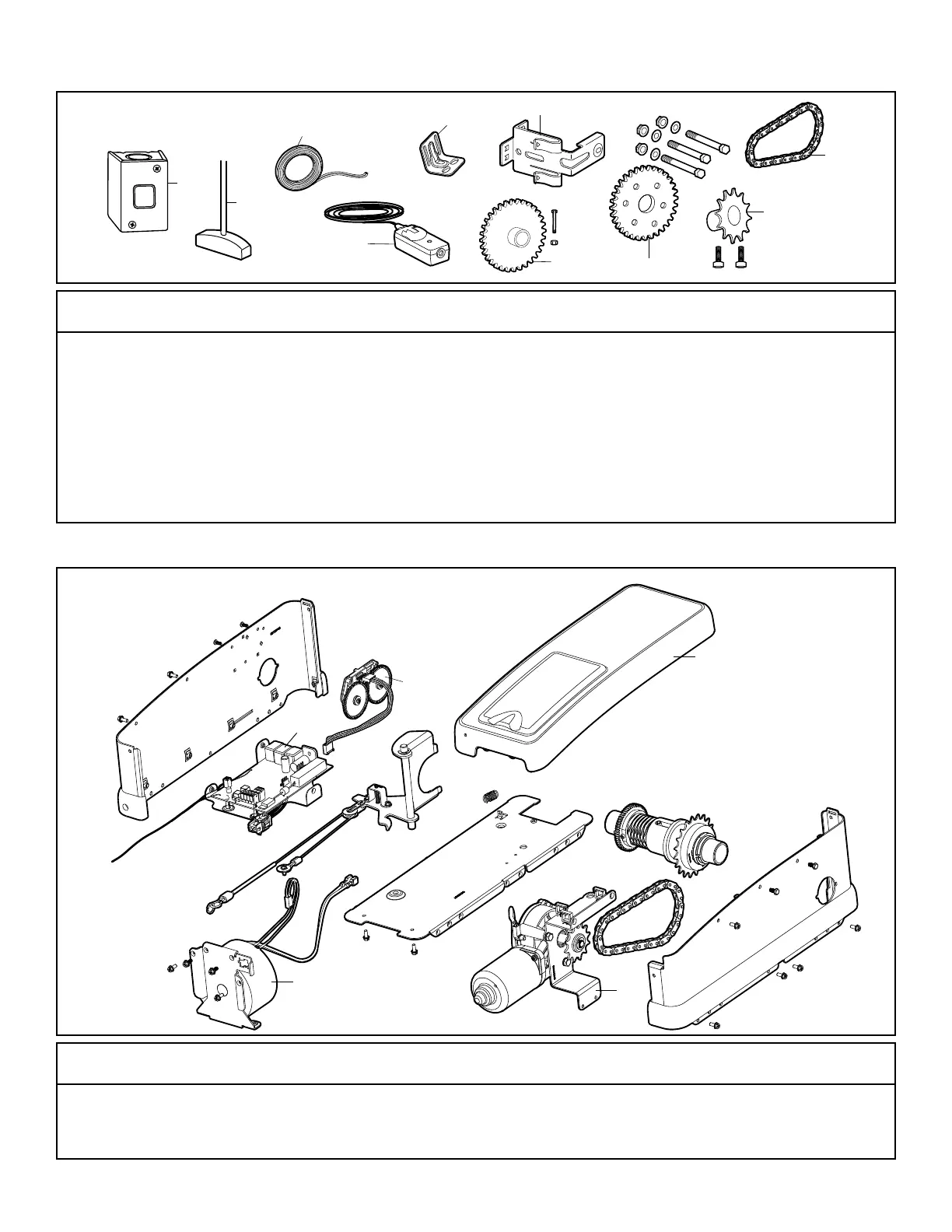

Installation Parts
REPAIR PARTS
KEY PART
NO. NO. DESCRIPTION
1 APBS 1 Single button control station
2 41A6298-5 Emergency release rope, handle assembly
and installation hardware bag
(includes hardware listed on page 4)
3 41B4494-1 2-conductor bell wire white & white/red
4 41C0902 Mounting bracket (1)
5 41A5034 Safety reversing sensor kit (receiving and
sending eyes) with 3 feet (.9 m)
2-conductor bell wire attached
KEY PART
NO. NO. DESCRIPTION
6 41A5266-1 Safety reversing sensor brackets (2)
7 41A7279 Live shaft sprocket kit
8 41A7280 Dead shaft sprocket kit
9 41A7278 12 tooth sprocket kit
10 41A7314 Drive chain (#48)
NOT SHOWN
114A4066 Owner’s manual
KEY PART
NO. NO. DESCRIPTION
1 K41DJC001 Logic board complete with plate (315 MHz)
2 41A6408 Travel Module
3 41C168 Transformer
KEY PART
NO. NO. DESCRIPTION
4 41A6095 Motor with bracket
5 41A6348-3 Cover
3
2
5
4
1
Motor Unit Assembly Parts
