2-Conductor Bell Wire
White & White/Red
Safety Labels
and
Literature
Mounting Bracket (4)
Door Sprockets
The Protector System
®
(2) Safety Reversing Sensors
(1 Sending Eye and 1 Receiving Eye)
with 2-Conductor White & White/Black
Bell Wire attached
Safety Reversing Sensor
Bracket (2)
Operator
Single Button Control
Station
12 Tooth Drive Sprocket
with Drive Chain

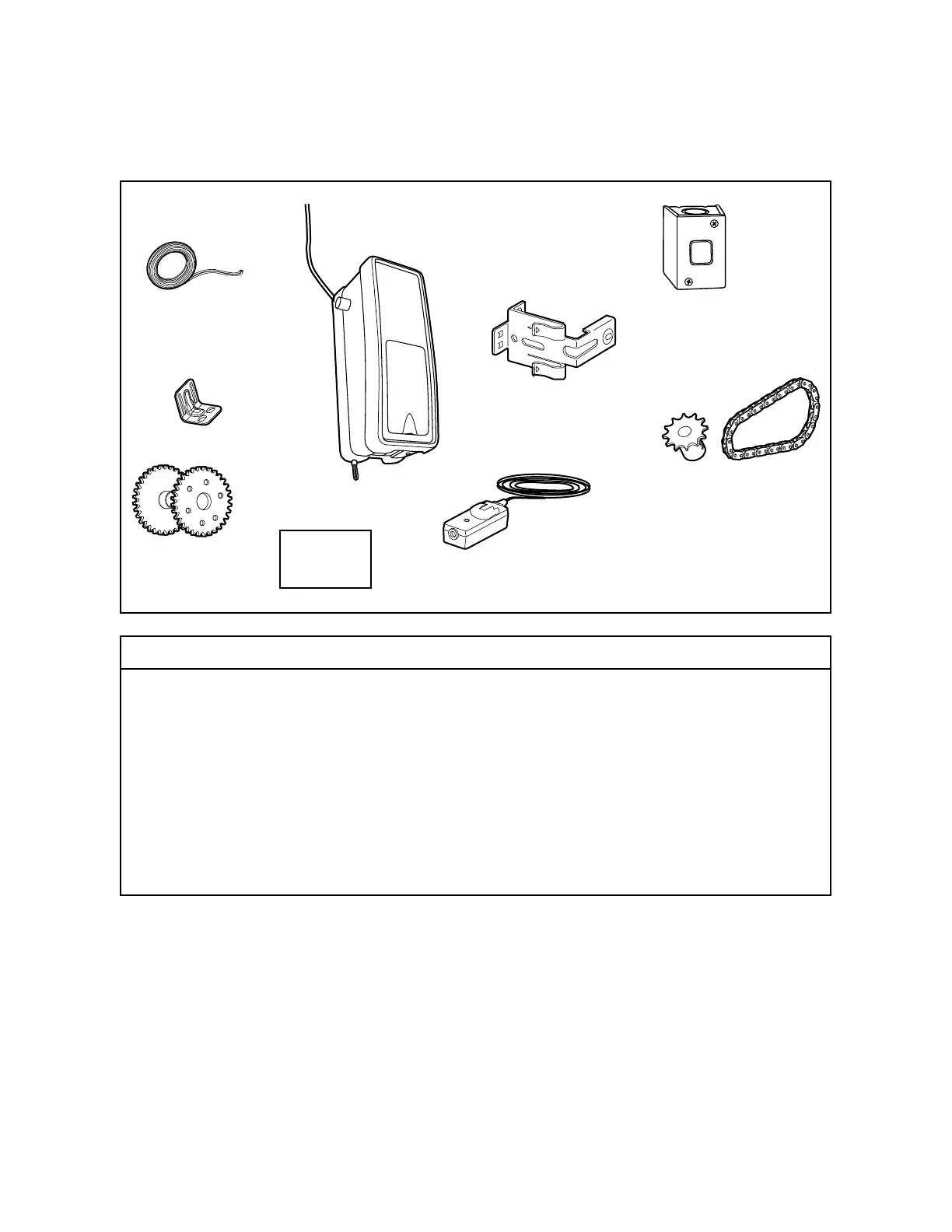

Carton Inventory
Your door operator is packaged in one carton which contains the
motor unit and the parts illustrated below.
Note that accessories will depend on the model purchased. If
anything is missing, carefully check the packing material.
Hardware Inventory
Installation Hardware
Tubular Spacer 1/2" (6)
Tubular Spacer 2" (3)
Cap Screw 1/4"-20 x 2" (1)
Nylock Lock Nut 1/4"-20 (1)
Hex Head Bolt 3/8"-16 x 4" (3)
Flat Washer 3/8" (3)
Serrated Flange Nut 5/16"-18 (3)
Carriage Head Bolt 1/4"-20 x 1/2" (2)
Self Taping Screw #10-32 (8)
Rope (1)
Handle (1)
Wing Nut 1/4"-20 (2)
Hex Drive Round Head Bolt 1/4"-20 x 1/2" (2)
Warning Tag for Release Handle (1)
