The Chamberlain Group, Inc.
Position Header Bracket
One Piece Door Without Track
1/30/92 - 4/7/92
Header Wall
Vertical
Centerline
Vertical
Centerline of
Garage Door
2x4
Unfinished
Ceiling
Structural Supports
2x4
Header Support
OPTIONAL CEILING MOUNT
FOR HEADER BRACKET

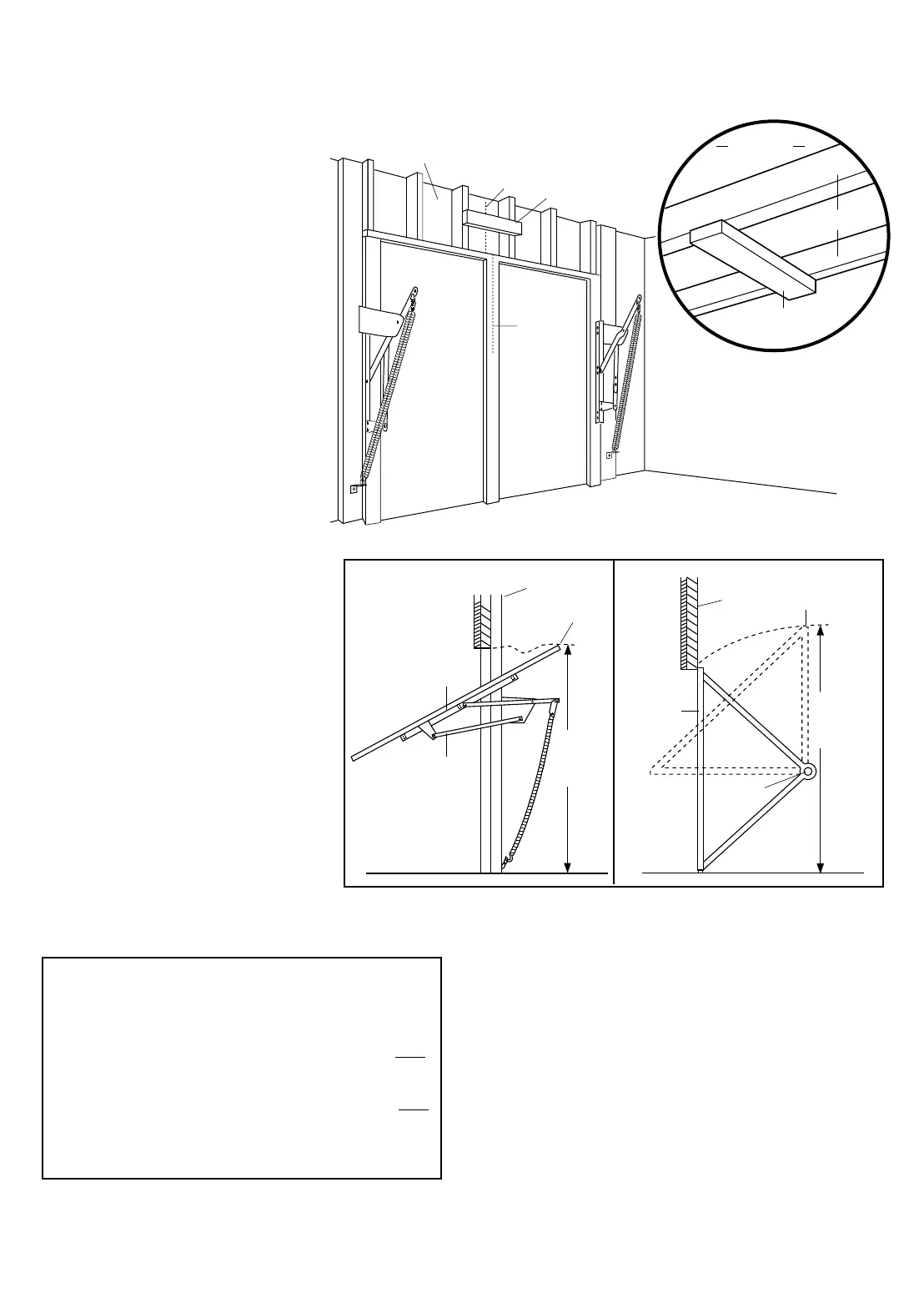

• Close the door and mark the inside
vertical centerline of your garage door.
Extend the line onto the header wall
above door.
If headroom clearance is minimal, you
can install the header bracket on the
ceiling. See page 14.
• If you need to install the header
bracket on a 2x4 (on wall or ceiling),
use lag screws (not supplied) to
securely fasten the 2x4 to structural
supports as shown.
• Open your door to the highest point of
travel as shown. Measure the distance
from the top of the door to the floor.
Subtract the actual height of the door.
Add 8" to the remainder. (See
Example).
• Close the door and draw an
intersecting horizontal line on the
header wall at the determined height.
If the total number of inches exceeds
the height available in your garage,
use the maximum height possible, or
refer to page 14 for ceiling
installation.
Proceed to Step 2, page 14.
EXAMPLE
Distance from top of door
(at highest point of travel) to floor . . . . . . . . . . . . .92"
Actual height of door . . . . . . . . . . . . . . . . . . . . . .-88"
Remainder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4"
Add . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+8"
Bracket height on header wall . . . . . . . . . . . . . . .=12"
(Measure UP from top of CLOSED door.)
Door
Highest Point
of Travel
Header
Wall
Pivot
Distance
Header Wall
Highest Point
of Travel
Door
Floor
Floor
Distance
Jamb
Hardware
The Chamberlain Group, Inc.
Position Header Bracket
Doors Without Track
1/30/92 - 4/7/92
One-piece door without track
pivot hardware
One-piece door without track
jamb hardware
ONE-PIECE Door Without Track
Read the Safety Instructions on page 12. They also apply to doors without tracks.
