Chamberlain Security+ 9950D - Installation Parts; Rail Assembly Parts; Repair Parts

37
7
10
12
5
NOTICE
6
4
9
13
8
1
LOCK
LIGHT
11
UP
CEILIN
G
M
O
UN
T O
NL
Y
3
2
3
1
5
8
10
7
2
9
4
6

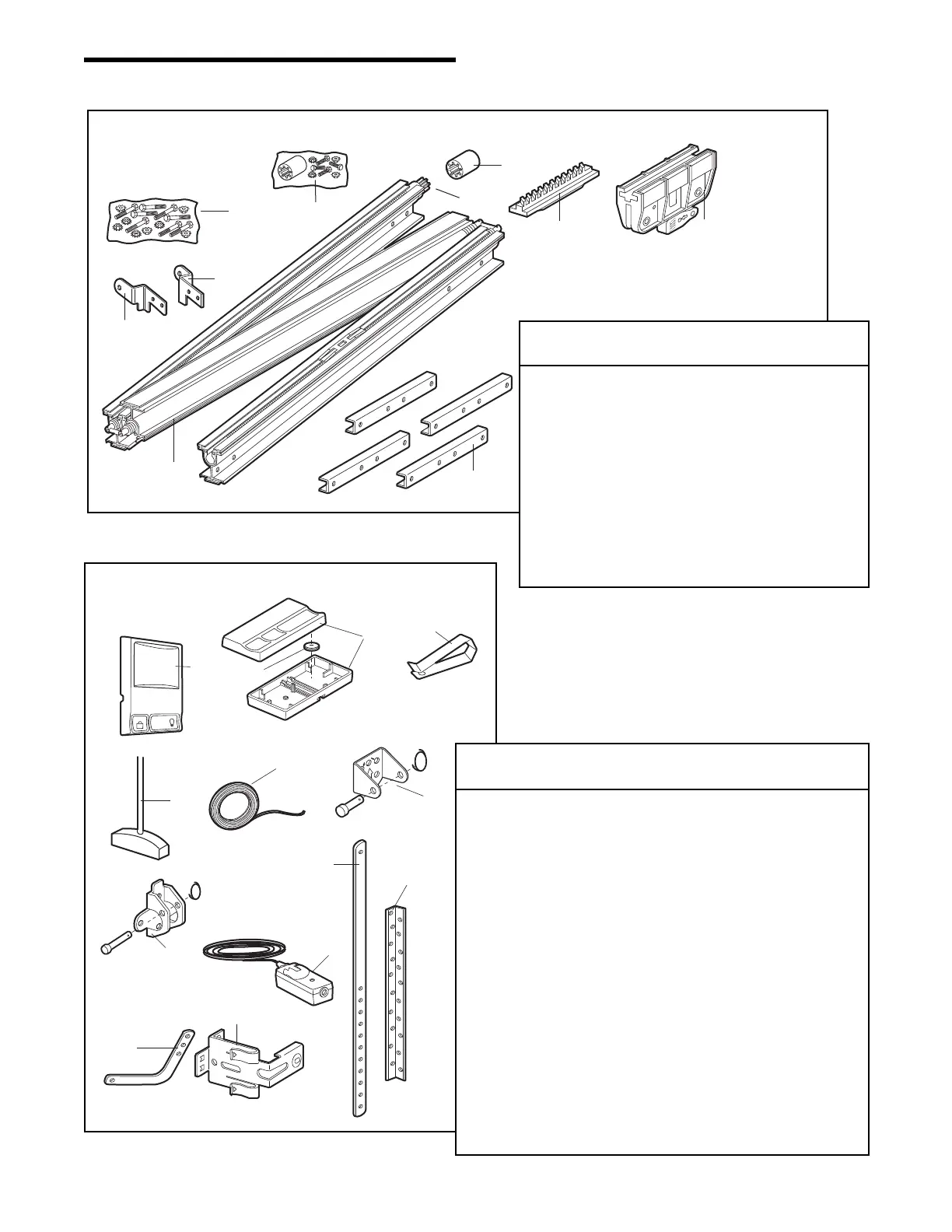

Installation Parts
REPAIR PARTS
Rail Assembly Parts
KEY PART
NO. NO. DESCRIPTION
1 41A4796 Hardware bag
2 41A4795 Hardware bag (includes
sprocket coupling)
3 12B569-1 Left rail bracket
4 12B569-2 Right rail bracket
5 1C4827-1 Screw drive rail assembly
6 12B560M Rail support braces (4)
7 81C168 Rack
8 41C4677 Complete trolley assembly
9 25C20 Sprocket coupling
10 41A4836 Drive sprocket kit
KEY PART
NO. NO. DESCRIPTION
1 41A5273-9 Multi-function door control
2 953D 3-Button remote control
3 10A20 3V 2032 Lithium battery
4 29B137 Visor clip
5 41A2828 Emergency release rope & handle assy.
6 41B4494-1 2-Conductor bell wire: white & white/red
7 41A4353 Header bracket w/clevis pin & fastener
8 41A5047 Door bracket w/clevis pin & fastener
9 41A5034 Safety sensor kit: receiving and
sending eyes with 3' (.9 m) 2-conductor
bell wire attached
10 178B34 Straight door arm section
11 12B776 Hanging brackets
12 178B35 Curved door arm section
13 41A5266-1 Safety sensor bracket
NOT SHOWN
41A4675-7 Installation hardware bag (see page 7)
114A3054 Owner’s manual
114A3054SP Owner’s manual - Spanish
