INTRODUCTION TO PROGRAMMING
PROGRAMMING
Before programming the logic board, set the operator’s open and
close limits. LEDs on the logic board are provided to assist setting
the limits. As each limit is activated the corresponding LED will
light up. The abbreviations are Open Limit Switch (OLS), Close
Limit Switch (CLS) and Sensing Limit Switch (SLS).
When power is applied to the operator, the following LED’s will
illuminate: STOP, CLOSE, OPEN, LMEP, 24Vac, RADIO, DATA,
TIMER ENABLE, OLS MID, SLS, CLS, and MAS. Once the power
up process is completed (approximately 2-3 seconds) only the
appropriate LED’s will continue to be lit (i.e., STOP, 24Vdc, limit
LED(s) if limit(s) is activated).
NOTE: When the power up process is over, the MAS LED will
blink a code indicating the version of firmware. If the selector dial
is in the DIAG, OPTN, or PROG position, the MAS will not provide
this code. After the code has been provided the MAS LED will go
out.
Many programmable functions require that a LiftMaster Entrapment Protection (LMEP) Device be installed in order to function.
LOGIC BOARD PUSH BUTTONS (OPEN, CLOSE, STOP)
Open, Close and Stop buttons are mounted directly on the logic
board. Thus, making it easy to program as well as having the door
control at the electrical box.
Either the stop control or a jumper MUST be wired between
terminals 4 and 5 for the push buttons to function.

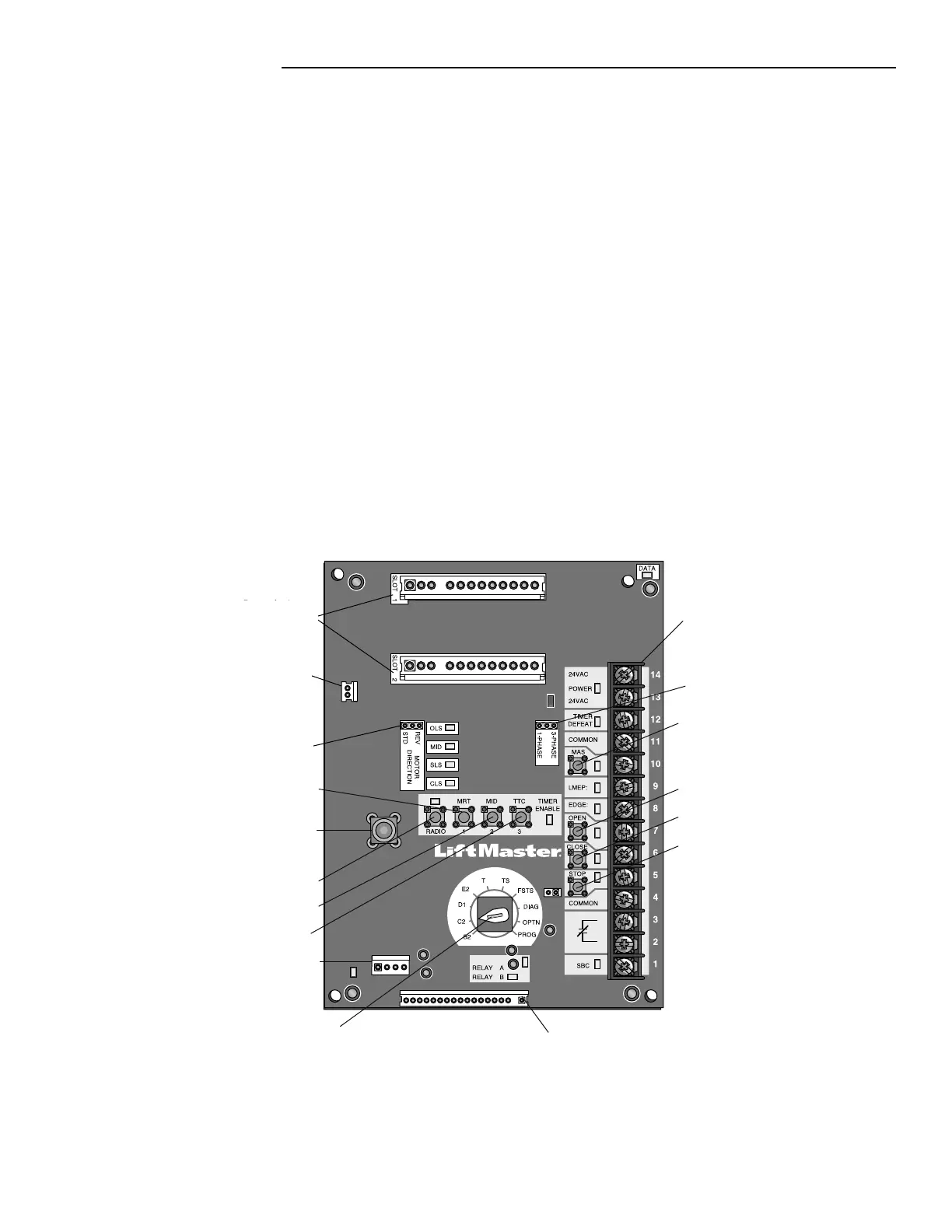

LOGIC BOARD OVERVIEW
Detección de corriente
(trifásica ÚNICAMENTE)
Bloque de terminales
de cableado de control
Receptáculos
opcionales de
tarjetas auxiliares
Conector de
antena coaxial
Conector de
distribución
del sistema (J3)
Puente de dirección
del motor
Current Sense
(3 Phase ONLY)
Selector Dial
(used for programming
and selecting wiring type)
Main Motor Control Harness Connection
Maximum Run
Timer Button
Optional Auxiliary Card
Receptacles
Mid-Stop Learn Button
Timer-To-Close
Learn Button
Radio Learn Button
Open Button
Close Button
Stop Button
Control Wiring
Terminal Block
System Wiring
Connector (J3)
Coaxial Antenna
Connector
Motor Direction
Jumper
Maintenance Alert
System Button for
Programming
Single Phase &
Three Phase Jumper
