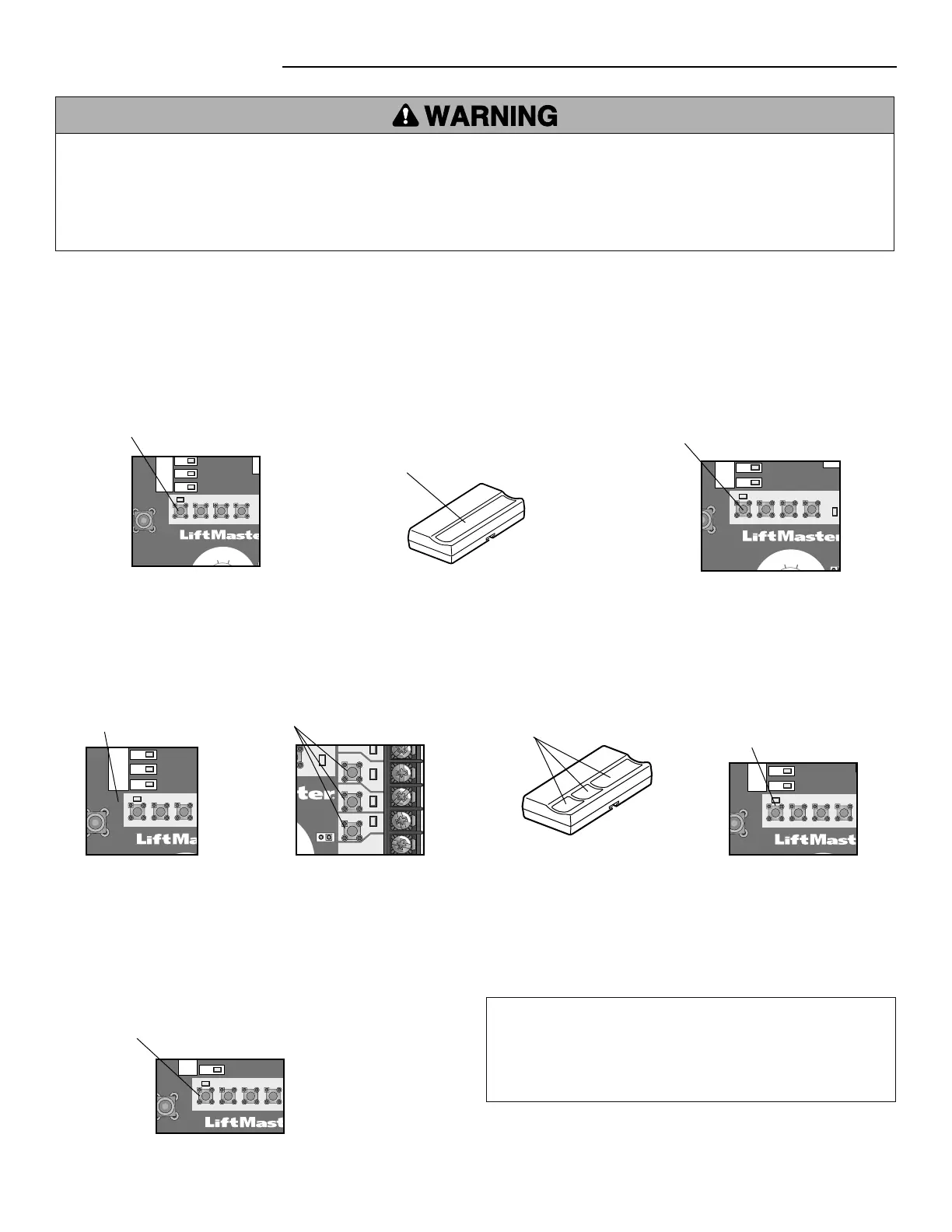

REMOTE CONTROLS
To prevent possible SEVERE INJURY or DEATH:
• Install a LiftMaster Monitored Entrapment Protection (LMEP)
Device.
• NEVER permit children to operate or play with door control
push buttons or remote controls.
• Activate door ONLY when it can be seen clearly, is properly
adjusted and there are no obstructions to door travel.
• ALWAYS keep door in sight until completely closed. NEVER
permit anyone to cross the path of closing door.
SINGLE BUTTON REMOTE CONTROL
3-BUTTON REMOTE CONTROL TO OPERATE AS A WIRELESS 3-BUTTON CONTROL STATION
NOTE: The feature will use 3 of the 90 memory channels in the operator.
TO ERASE ALL REMOTE CONTROLS
1
Press and release the RADIO button (RADIO
LED will light).
2
1
23
Press and release the RADIO
button on the logic board
(the Radio LED will light).
Press and release the desired button on the
logic board (OPEN, CLOSE or STOP). The
Radio LED will flash and then stay on solid.
Press and hold the desired button
of the remote control until Radio
LED flashes rapidly, then release.
Repeat steps 1 through 4 to program additional buttons.
Press and hold the remote control button until the
RADIO LED flashes rapidly, then release remote
control button. The RADIO LED will then remain on
solid after releasing the button. Repeat to add
additional remote control(s).
1
Press and hold the RADIO button on the logic board until the RADIO LED flashes
rapidly (approximately 5 seconds). All remote controls will be erased.
RADIO
SLS
MRT MID TTC
TIMER
ENABL
123
FSTS
TTS
E2
CLS
MOTOR
RECTION
E
E
3
Press and release the RADIO button to complete the
programming. The programming mode is exited if no
activity is performed within 30 seconds.
RADIO
SLS
MRT MID
12
CLS
MID
EV
TD
MOTOR
DIRECTION
Built in 3-channel, Security+2.0
®
radio receiver allows you to add up to 90 remote control devices and up to 30 keyless entry devices.
NOTE: The following programming requires a LiftMaster Monitored Entrapment Protection (LMEP) Device.
PROGRAMMING
4
RADIO
SLS
MRT MID TTC
E
123
CLS
MOTOR
IRECTION
Press and release the RADIO button to
complete the programming. The
programming mode is exited if no activity
is performed within 30 seconds.
NOTICE: To comply with FCC and/or Industry Canada (IC) rules, adjustment or modifications of this
transceiver are prohibited. THERE ARE NO USER SERVICEABLE PARTS. Any changes or modifications
not expressly approved by the party responsible for compliance could void the user’s authority to
operate the equipment. This device complies with Part 15 of the FCC rules and IC RSS-210. Operation
is subject to the following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause undesired
operation. This Class B digital apparatus complies with Canadian ICES-003. This device must be
installed in a way where a minimum 8" (20 cm) distance is maintained between users/bystanders
and device.
