1. Remove the condensate removal shroud
from its shipping container.

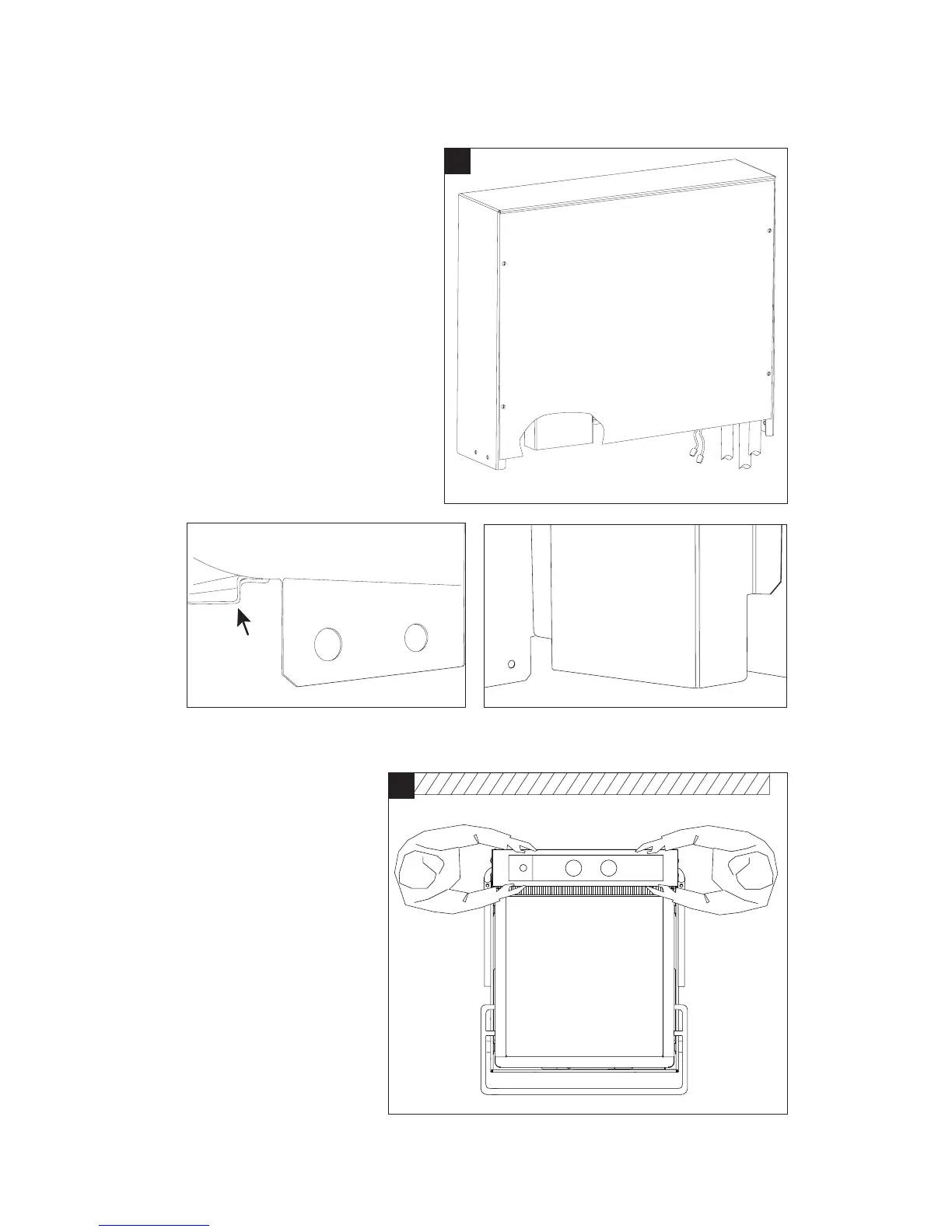

2. Refer to Figure C and note that the
shroudhasafrontange(Ca)
and a rear extension (Cb) which interlock
with the dishwasher vent opening.
3. Make sure (Ca) and (Cb) are properly
connected to the dishwasher when the
shroud is installed.
4. Refer to Figure C and note there
are two electrical wires (Cc) and three
hoses (Cd) attached to the shroud.
5. Carefully route (Cc) and (Cd) to the
rear of the dishwasher when installing
the shroud.
6. Two persons are needed
to install the shroud on
the dishwasher. (See Figure D).
7. Remove the (4) 1/4-20 x 1/2"
truss head shroud mounting
screws from the dishwasher hood.
8. Lift the shroud over the rear of the
dishwasher and carefully lower it into
position making sure that (Ca)
and (Cb) connect the shroud to the
dishwasher.
9. Reinstall the mounting screws.
90
P/N 115107 - Condensate Removal Option Installation Instructions
Installing the Condensate Removal Shroud
D
Ca
Cb
C
Ca
Cb
Cc
Cd
