P/N 115107 - Condensate Removal Option Installation Instructions
The Condensate Removal Electrical Control Box
is shipped prewired to the dishwasher and stowed
in the back of the machine. Mounting holes and
fasteners are provided to mount the control box to
the left side of the machine. (See Figure E).
To Install the Electrical Control Box:
Installing the Condensate Removal Electrical Control Box
on the Left-hand side of the DH5000T
1. The electrical control box must be
installed before the dishwasher is
permanently placed and before the
dishwasher tables are connected to the
dishwasher.

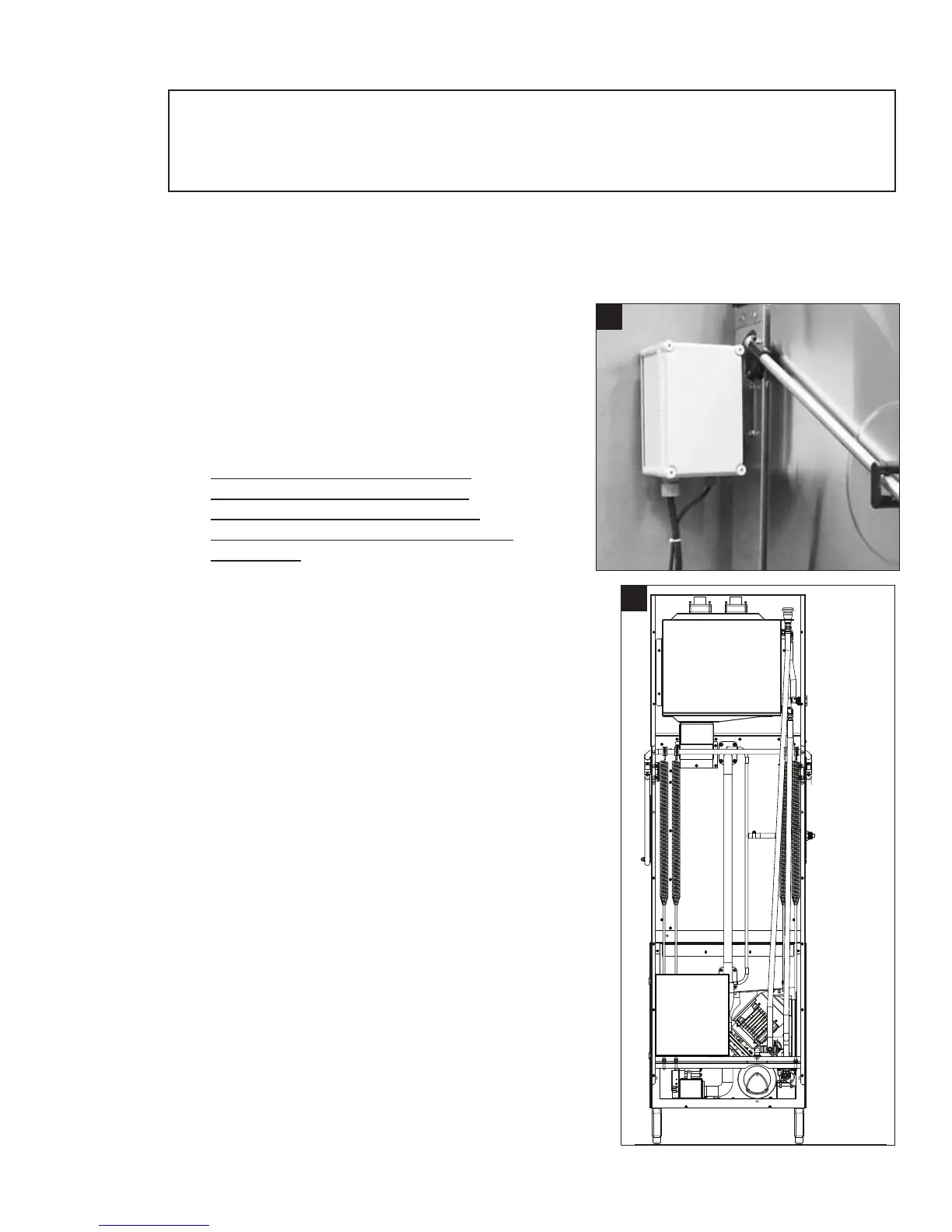

2. Refer to Figure E at right. The photo
shows the electrical control box mounted
on the left side of the dishwasher
approximately 46" [1.2 m] above the
nishedoor.
3. Refer to Figure F at right. The photo
shows the storage location for the
electrical control box during shipping.
4. Carefully lift the control box and
mounting bracket assembly from the rear
of the dishwasher and place it on the
oorontheleft-handsideofthemachine
when viewed from the front.
(continued on next page)
E
CONTROL
BOX
! ATTENTION !
The Condensate Removal Control box can be wall-mounted using a
Wall Mount Kit, P/N 900958.
See the last page of this manual for further instructions.
F
CONTROL
BOX
To Next Page
