Disassembly of the base section of the console:
Whether you need to replace the LCD display, motherboard, or DMX PCB, you will always
first need to remove the display to access all parts. This is screwed into the display base
tray and needs to first be removed as a whole unit. To do this, remove the 4x M3 nyloc
nuts from around the base tray using a 5.5mm nut driver or adjustable spanner. Once
the tray is free, carefully lift it up from the top to a 90-degree angle and you will see

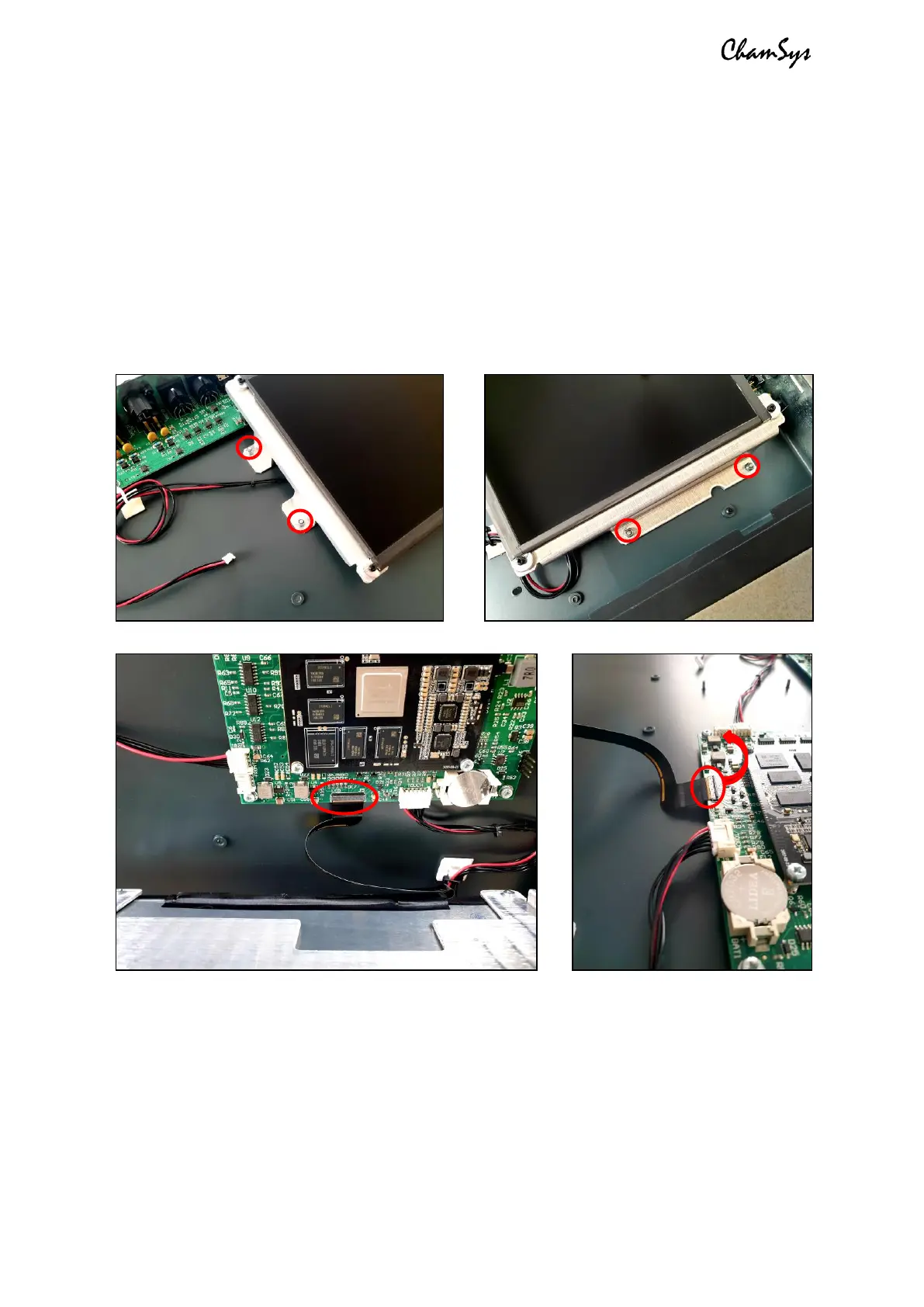

where the display is connected to the mother board, as pictured below. To disconnect
this, the tab on the connector must be lifted before the ribbon cable can be removed.
Attempting to remove the cable without first lifting the tab is likely to break the
connector, resulting in this, or possibly the entire motherboard, needing replacing.
Replacing the LCD display: Once the display unit has been disconnected and removed,
you may wish to remove the display itself from the base tray, in order to replace the
display. This is done by removing the 4x M2.5x6 black screws from the four corners of
the display, using a PZ1 screwdriver. Note that there are also spacers that sit between
the display and the base tray, which will come loose when removing the screws. These
will need to be replaced in the correct orientation when re-fitting the display. You can
now remove the display and replace if required.
