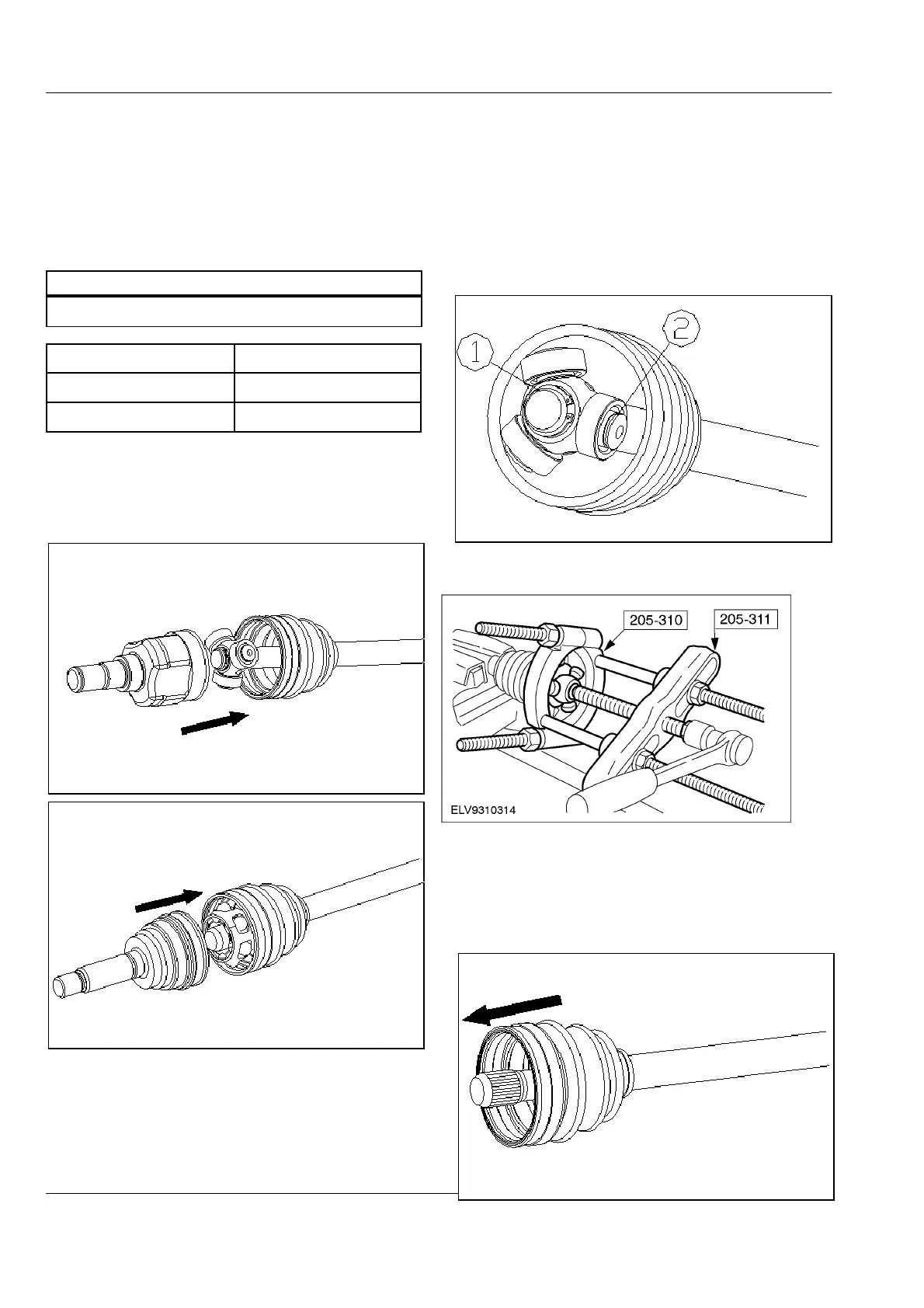

202-01-22 Driving Axle 202-01-22
DISASSEMBLY AND ASSEMBLY
BENNI MINI
DISASSEMBLY AND ASSEMBLY
The special tool for semi-axle (movable
joint): caliper (CA201-002)
General Tool
Retaining Ring Caliper
Name
Model
High Performance Grease
G.A.Cpalex GTE
Nip of Dust Shield
2. Uncover the inner constant speed universal joint
housing.
• Eliminate the grease.
3. Disassemble the three-ball-pin/ ball-cage and
dust shield.
1. Disassemble the retaining ring.
2. Uncover the dust shield.
3. unlock three-ball-pin frame, and disassemble the
rolling column.
unlock the ball pin assembly according to the following
diagram
4. Disassemble and discard the nip of the dust
shield.
1. Take off the sliding dust shield, and clear away
grease.
2. Take out the driving axle from the constant
speed universal joint.
