Chapin 8201A - Installation, Parts, and Maintenance; Auger Installation; Storage and Maintenance; Replacement Parts List

CHAPIN INTERNATIONAL, INC. P.O. BOX 549 700 ELLICOTT ST. BATAVIA, NY 14021-0549 www.chapinmfg.com 800-950-4458
STORAGE AND MAINTENANCE
• When nished spreading empty hopper of any remaining material
• oroughly wash spreader and allow to dry before storing
• To fold down handle:
- Simply remove the bottom two bolts on the handle
- Loosen two thumb nuts and fold down handle
- Replace two bottom bolts
- Tighten thumb nuts completely

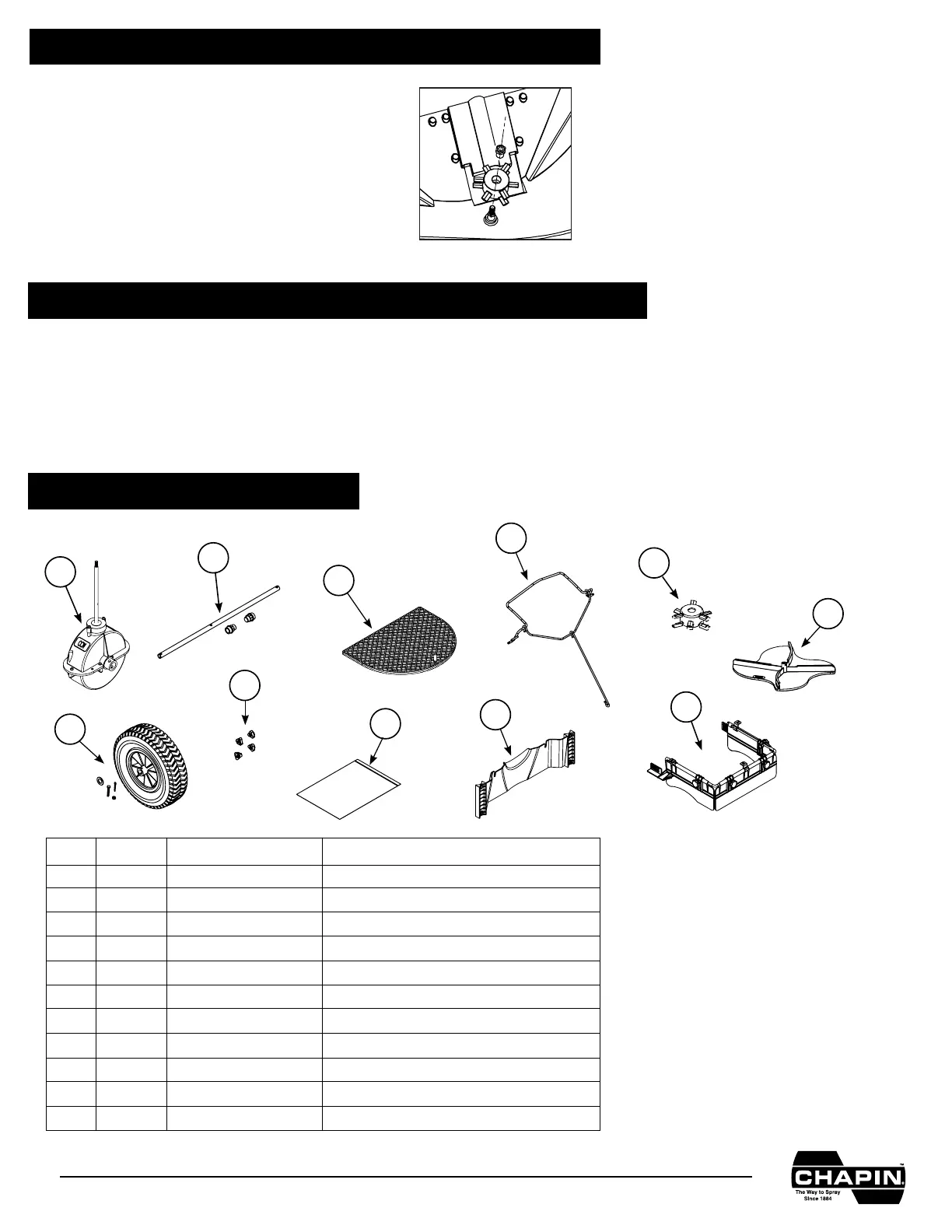

Ref.# Qty Part No. Description
1 1 6-9071 Gear Box Assembly
2 1 6-9040 Drive Shaft w/2 bearings
3 1 6-9001 Grate
4 1 6-9073 Bail Assembly
5 1 6-9048 Auger
6 1 6-9061 Impeller
7 1 6-9020 Wheels w/hardware & instructions
8 1 6-9021 Thumb Nuts
9 1 6-9022 Hardware Bag
10 1 6-9050 Rear Baffle
11 1 6-9083 Baffle System
REPLACEMENT PARTS
2
6
7
8
9
4
10
3
1
5
11
AUGER INSTALLATION
• Screw auger onto impeller sha. Screw
auger retaining nut into auger hole with M6
socket driver. Tighten completely with
wrench to secure.
