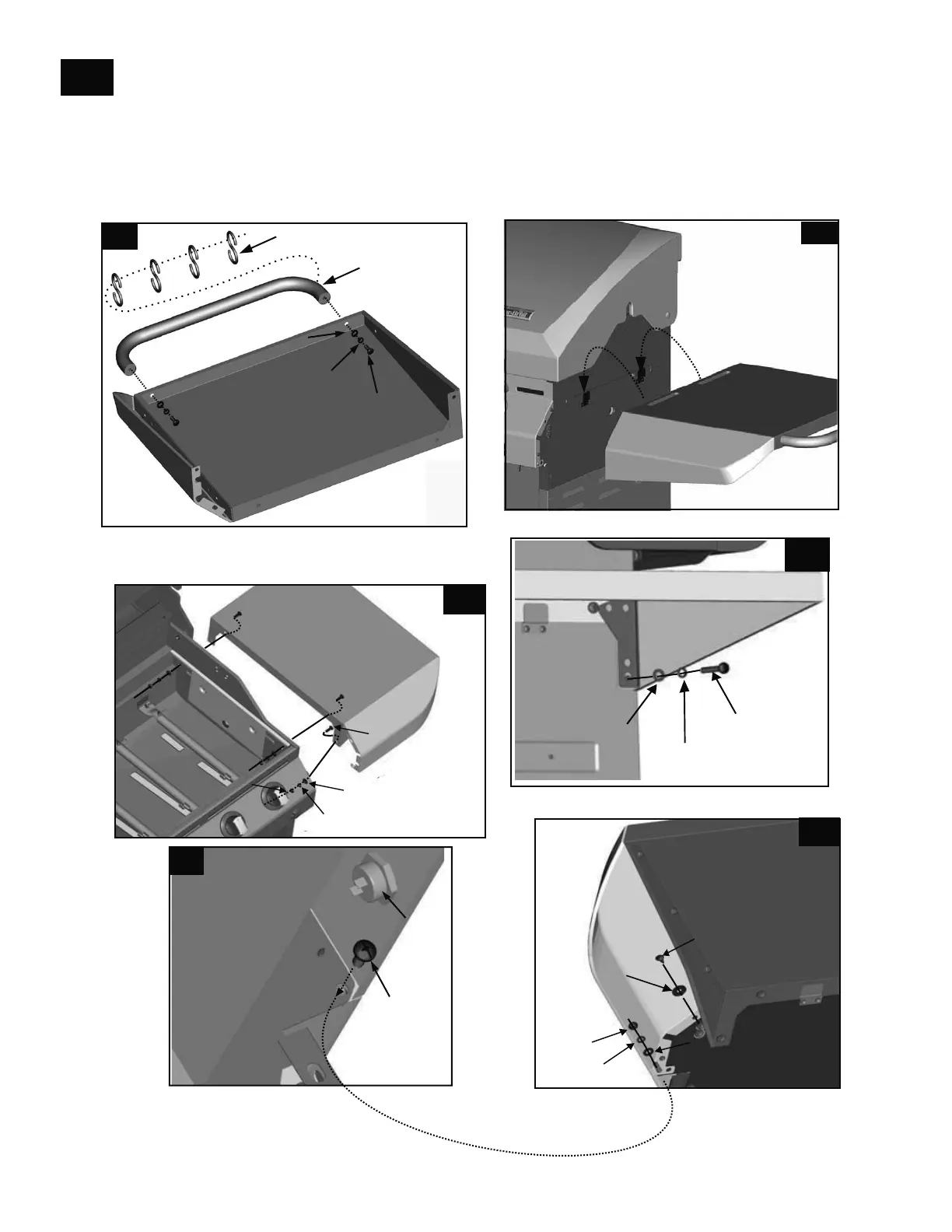

Insert flange on right side shelf into side shelf brackets on side of firebox, shown B.
flat washer, shown E.
Attach front of shelf and fascia using one #8x3/8” self-tapping screw and large
Attach front of shelf and fascia using one 1/4”-20x3/4” screw, 7mm lock washer, 7mm flat washer and 1/4” nut, shown E/F.
#8x3/8” self-tapping
Large flat
washer
1/4”nut
7mm flat washer
E
screw
7mm lock
washer
7mm flat
washer
D
1/4-20x1½”
screw
F
Back of main control panel
1/4-20x3/4”
Igniter Switch
screw
washer
7mm lock
Towel bar
S hook
1/4-20x3/4” screw
7mm lock
washer
7mm flat
washer
A
Hang the four S hooks on towel bar. Attach towel bar to right side shelf using two 1/4-20x3/4” screws, 7mm lock washers
and 7mm flat washers, shown A.
B
Attach rear of shelf using one
1/4-20x1½”
screw
, 7mm lock washer, and 7mm
flat washer in lower hole, shown D.
Attach right side shelf using three 1/4”-20x3/4” screws, 7mm lock washers,
7mm flat washers, 1/4” nuts, shown C.
1/4-20x3/4”
screw
1/4”nut
washer
7mm flat
washer
C
7mm lock
for clarity of illustration
Note: some parts omitted
