Handle
Grill Lid
(Lid style may vary)
Logo Plate
463822004 • 9
7
Qty. 2
Qty. 2
Qty. 2

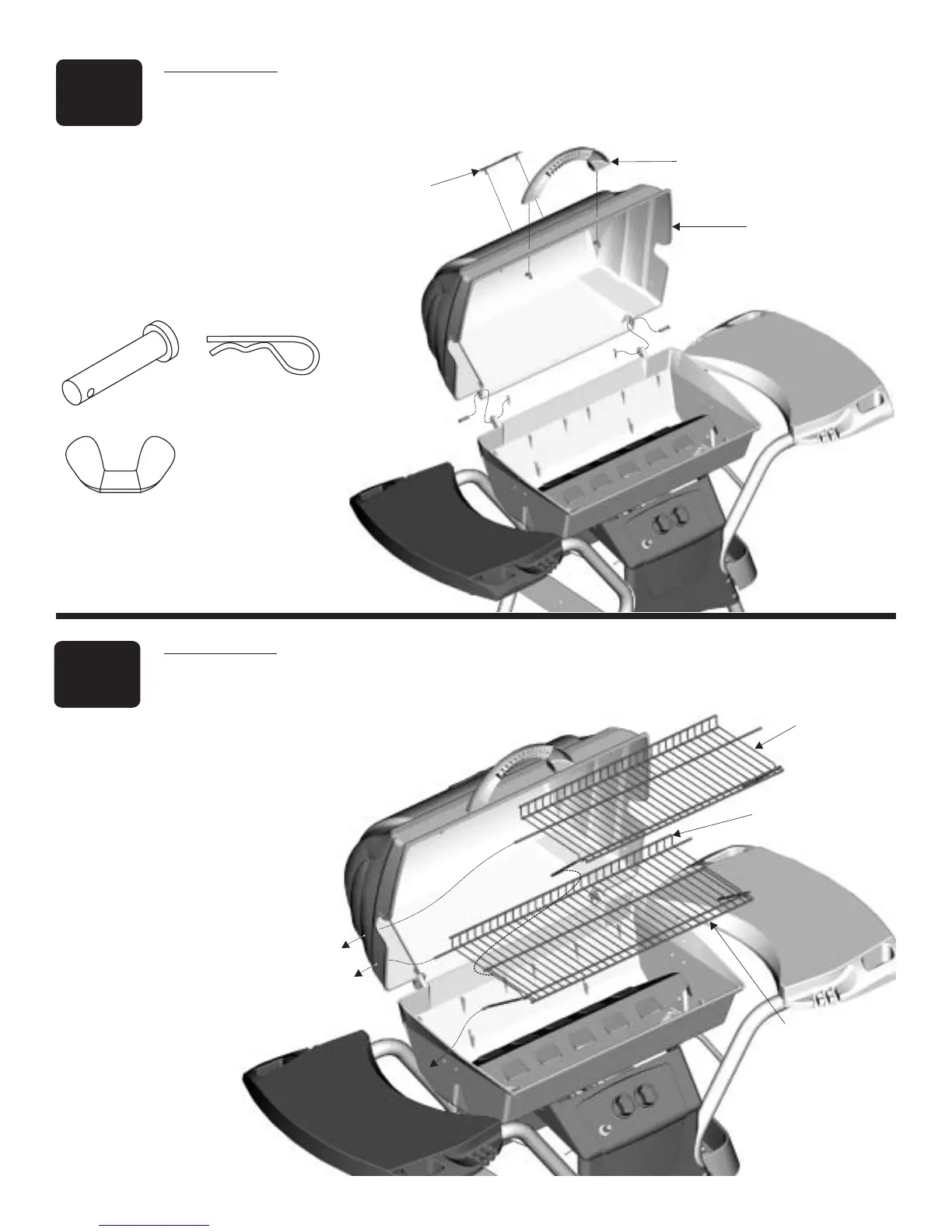

Parts to assemble:
1 Grill Lid
1 Handle
1 Logo Plate
2 Metal Wing Nut
2 Hinge Pin
2 Hitch Pin
A. Attach lid to grill bottom with
hinge and hitch pins.
B. Attach handle to lid with two
metal wing nuts.
C. Snap logo plate into lid.
8
Parts to assemble:
1 Lower SwingAway
1 Upper SwingAway
A. Slide rear pivot wire of lower SwingAway
into lower holes in side of grill lid.
B. Insert leg wires into top hole of three-hole
pattern in side of grill bottom.
C. Slide rear pivot wire of upper
SwingAway into middle holes in side of
grill lid.
D. Insert leg wires into loop on sides of
lower .warming rack
Lower
SwingAway
Upper
SwingAway
Note: Wires at rear of
SwingAways should
point upward.
