Char-Broil T-36D User Manual

ASSEMBLY
1

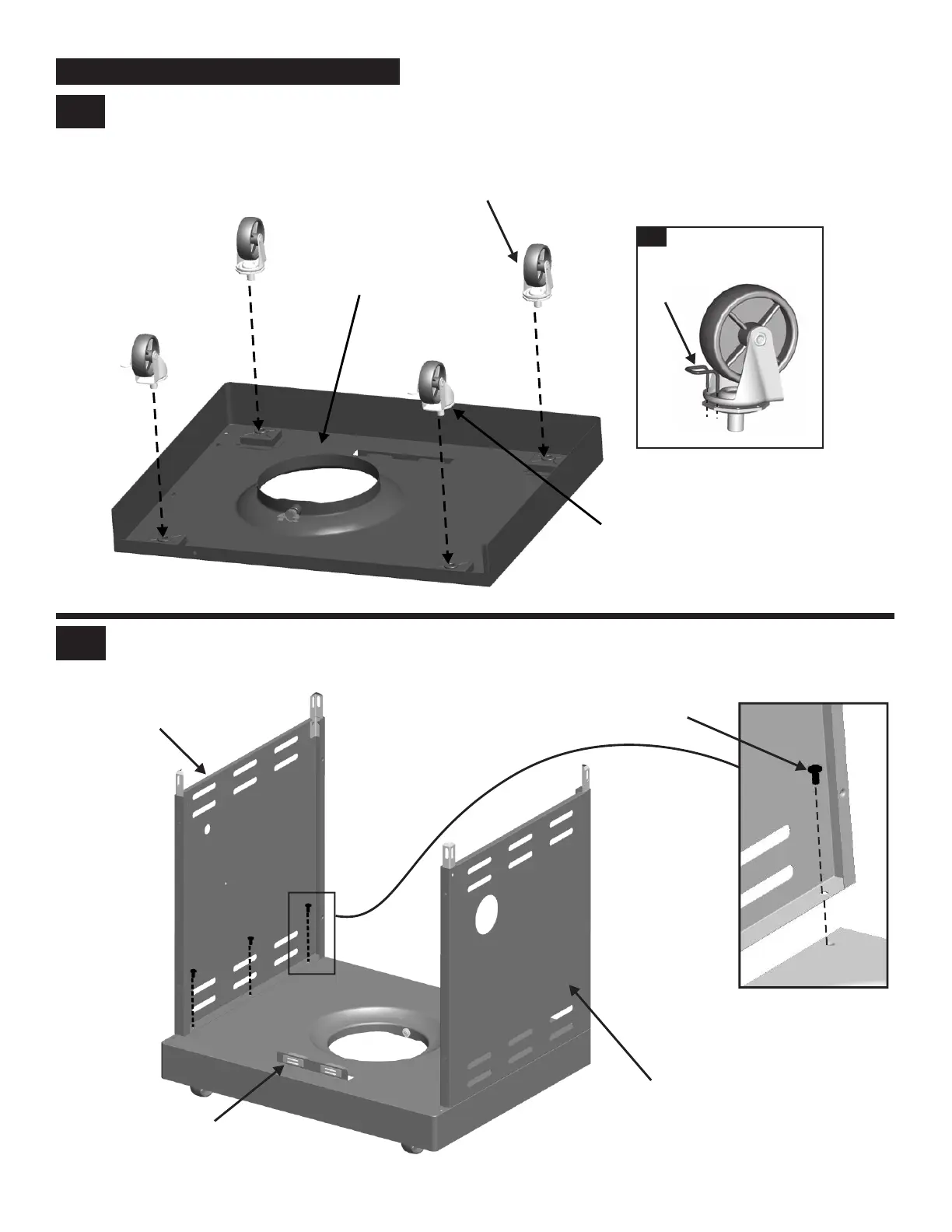

Place bottom shelf upside down. Insert Caster Pin into the caster mounting plate to lock it in place, shown A. Spin the caster
clockwise into the threads on the bottom shelf until secure. Remove the Caster Pin and repeat for remaining casters. Make
sure the two locking casters are secured at the rear and the non-locking casters are secured at the front. After all 4 casters
are secured remove the Caster Pin and save for future maintenance.
Caster Pin
A
Locking caster
Non-lock caster
Bottom shelf
Rear
Fr ont
2
Attach side panels to bottom shelf using three 1/4-20x1/2” screws per panel.
IMPORTANT: Panel with large hole must be on Right side of bottom shelf.
Left side panel
Magnet
Right side panel
Front
1/4-20x1/2” screw
