Char-Broil T-36D User Manual

.
14
15

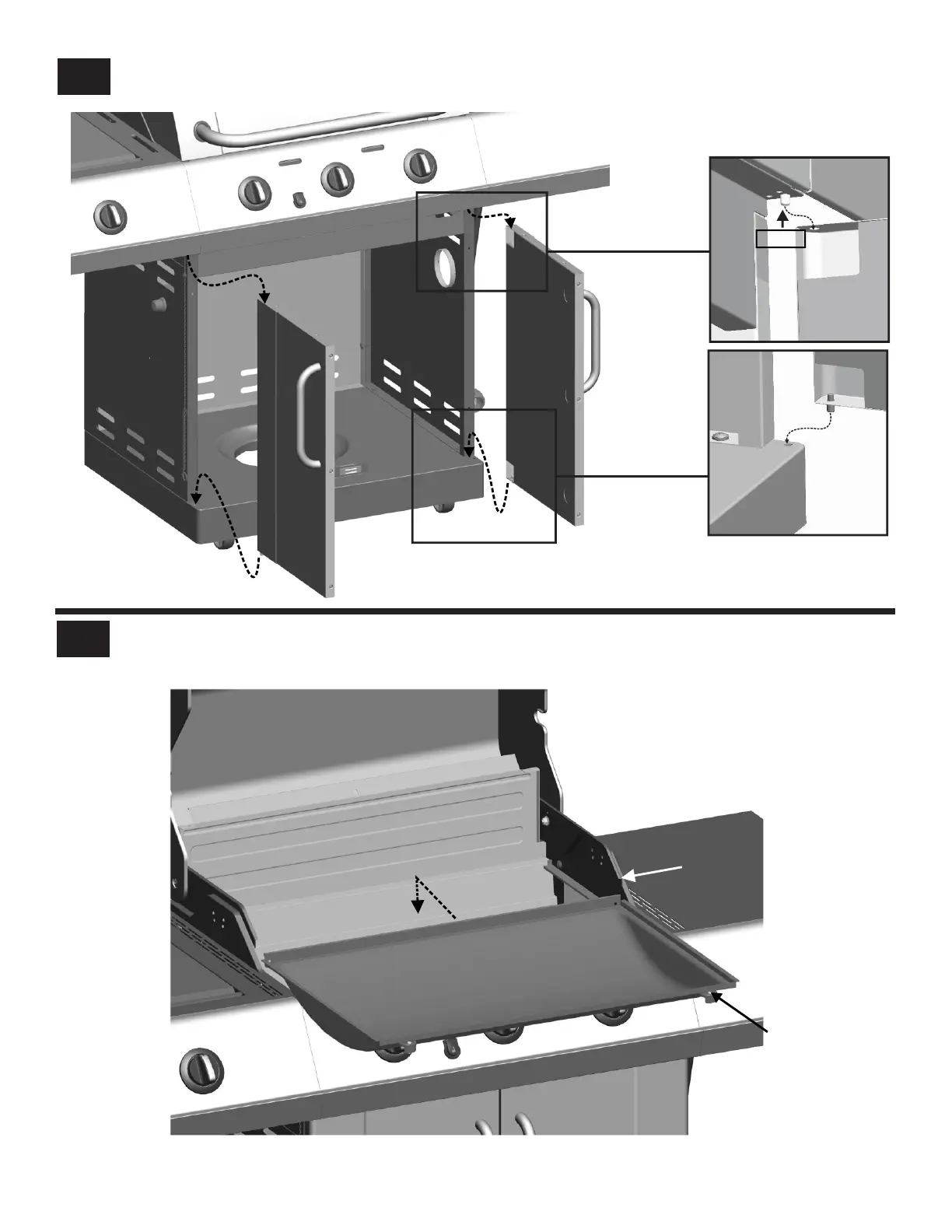

Insert hinge pin on bottom of doors into hole in bottom shelf. Press upper hinge pin in front brace, align hinge hole
on top of door, and release hinge pin into door.
PRESS
Top of
Right door
door
Hinge pin
on bottom
of door
21
Trough
Cut out
Trough pin
Install trough into firebox by sliding trough below the cut out on the firebox side panels. Align pins at front of trough with
the holes at front of fire box.
