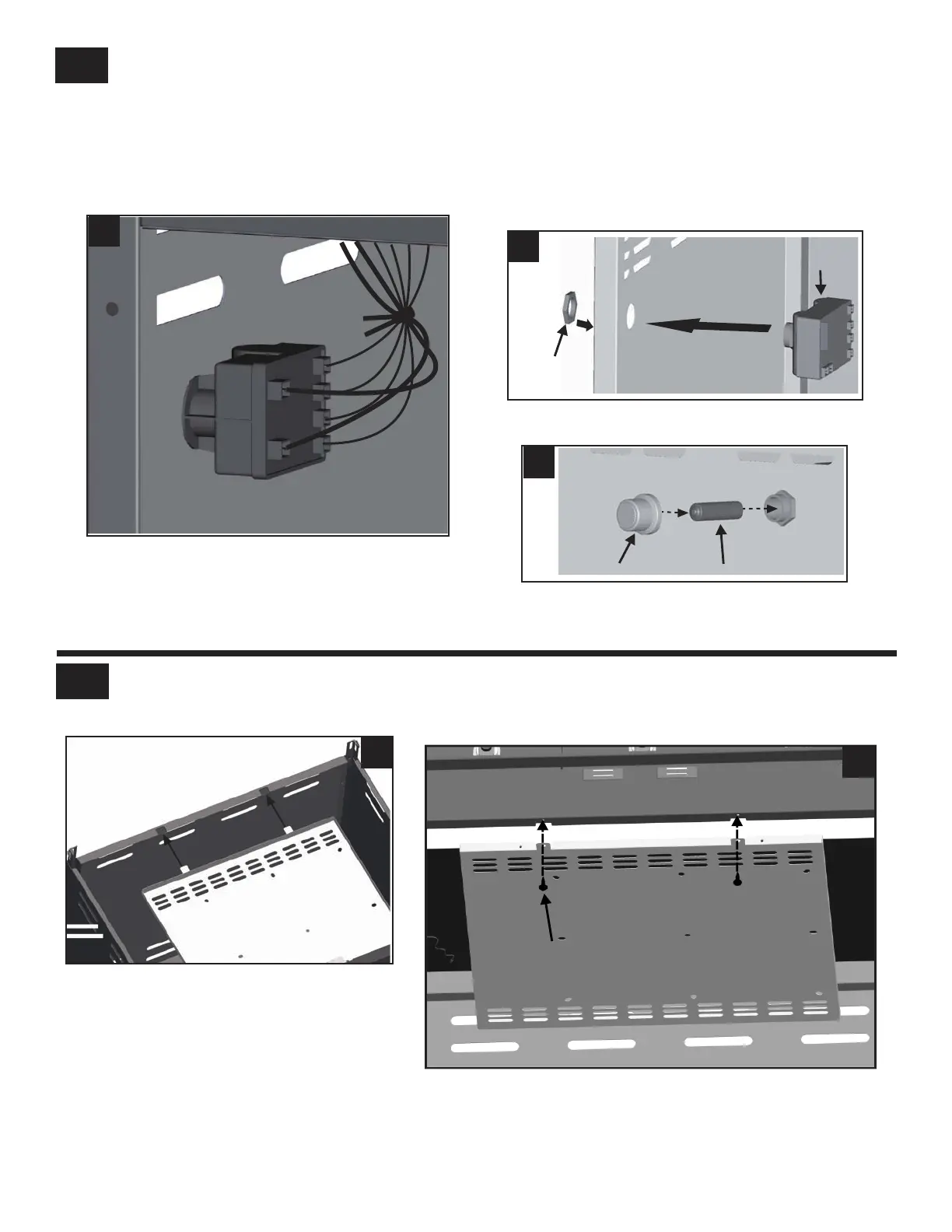

Inside of cart, insert rear tabs(w/o holes) of tank heat shield into slots on the top of lower back panel, shown A.
Attach front tabs(w/holes) of tank heat shield under front brace using two #8x3/8" self-tapping screws, shown B.
Connect each of the wires from the main burner electrodes, and sideburner electrode into the back of the Electronic Ignition
Module. Total (4) connections. Connect the two wires[(a) and (b)] from the switch wiring harness into the back of the
Electronic Ignition Module. Total (2) connections, shown A.
Unscrew the cap and nut from electronic ignition module. Attach electronic ignition module to the cart left side panel with the
nut, shown B.
Insert AA battery into ignition module, negative (-) end first. Then put on the cap, shown C.
ignition module
Electronic
Left side panel
A
B
B
C
-
+
AA batteryCap
Nut
4
(a)
(b)
Front brace
Tank heat shield
#8x3/8" self-tapping
screw
3
1
2
A
Tank heat shield
Note: some parts omitted for clarity
of illustration
NOTE: Switch terminals are larger than electrode terminals
and should only be installed in location shown as (a),(b).
