Char-Broil T-36D User Manual

8a
10
11
A
B
C

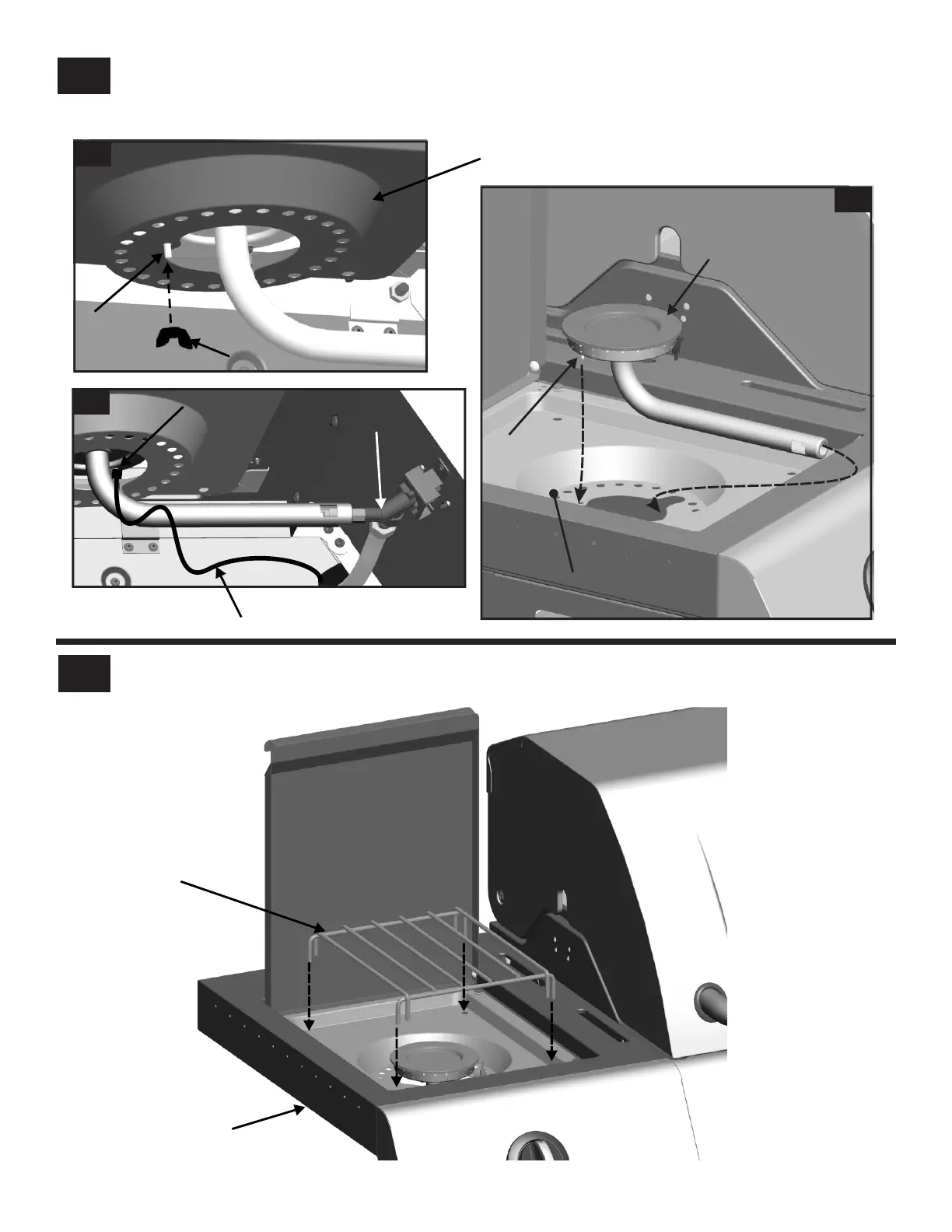

Insert sideburner burner into left shelf.
pan on shelf, shown . Secure burner to sideburner drip pan with one Wing nut, shown B. Under sideburner
shelf, attach sideburner igniter wire to electrode. Make sure burner tube engages sideburner valve, shown C.
The stud on bottom of burner fits into rear small hole in sideburner drip
A
Sideburner drip pan
Left shelf
Sideburner
drip pan
Wing nut
Burner tube
Sideburner
valve
Electrode
Igniter wire
Sideburner burner
stud
stud
Sideburner grate
Sideburner shelf
Place sideburner cooking grate onto sideburner shelf, aligning grate legs with holes in shelf.
