9

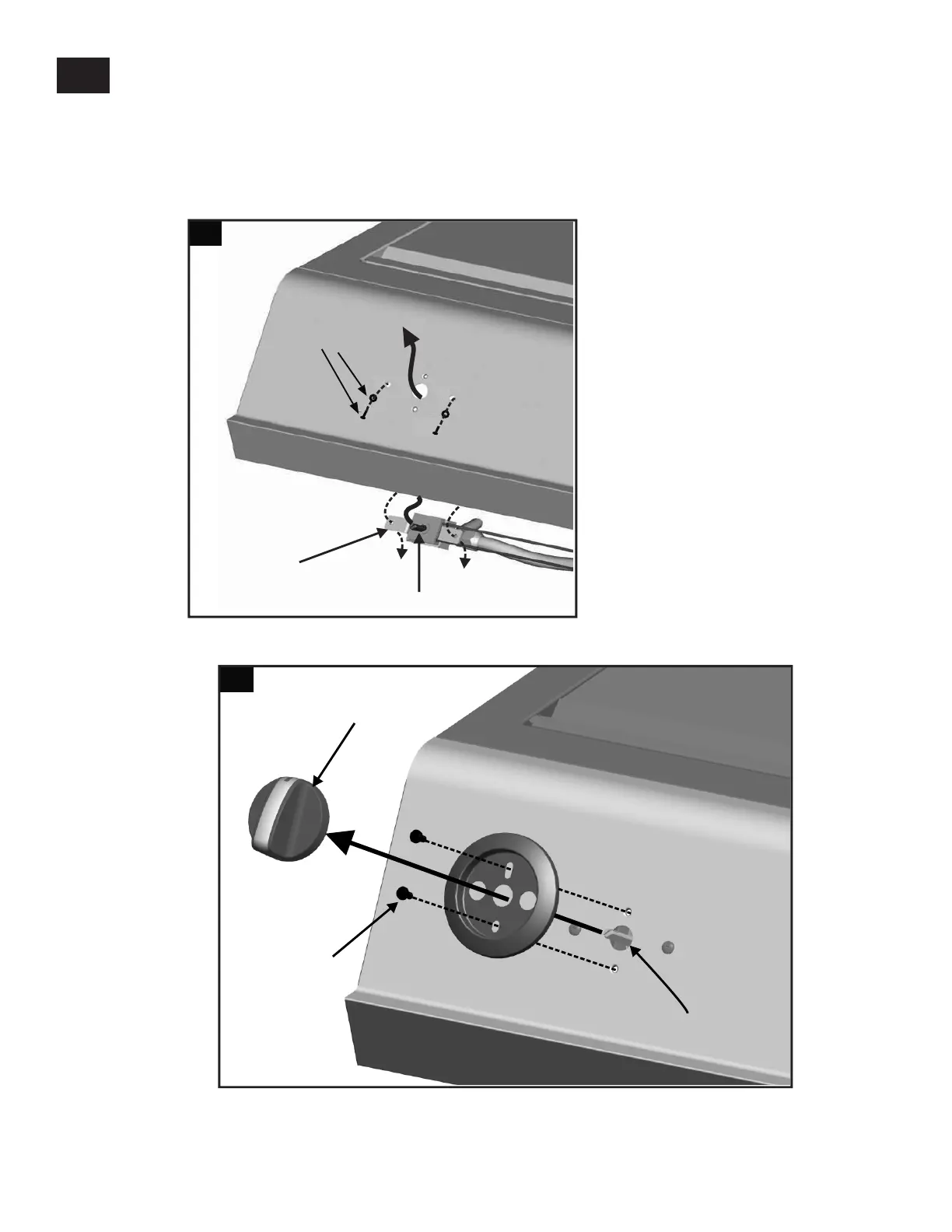

First, remove the two screws and lock washers attached to the sideburner valve bracket.
Position sideburner valve bracket beneath sideburner shelf fascia so that valve stem comes through larger
center hole in fascia. Align the holes on valve bracket with left and right holes on fascia. Secure using screws
and lock washers that were removed from bracket, shown A.
side of fascia. Align small holes on bezel with upper and lower holes on fascia. Attach sideburner bezel to fascia
using two #8-32x3/8” screws. Press sideburner control knob onto valve stem, shown B.
Place sideburner bezel over valve stem on front
valve stem
#8-32x3/8"
screw
B
Note: Make sure to set the Bezel with
the longer slot at the top.
Sideburner Bezel
Control Knob
Valve bracket
Valve stem
A
Sideburner shelf Fascia
Sideburner shelf
Screws and washers
removed from valve bracket
Note: Use upper and lower holes
on fascia to attach bezel
Note: Use left and right holes
fascia to attach valve bracket
on
18
