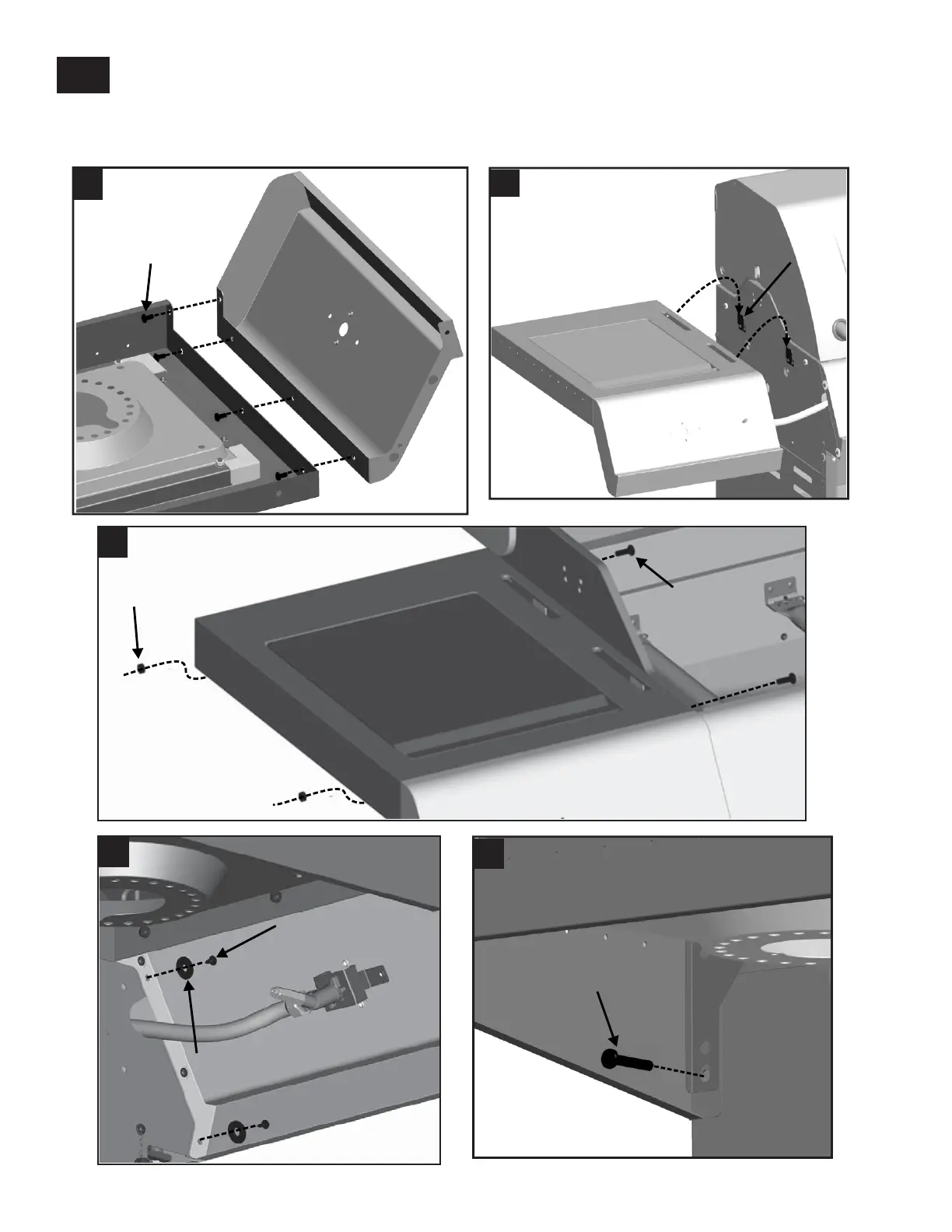

Attach left side fascia to left side shelf using four #10-24x3/8” screws, shown A. Insert flange on left side shelf
into side shelf brackets on side of firebox, shown B. Attach left side shelf to firebox using two 1/4-20x1/2”
screws and 1/4” nuts, shown C. Attach front of shelf using two #8x3/8” self-tapping screws and large flat
washers, shown D. Attach rear of shelf using one 1/4-20x1½” screw, shown E.
left side shelf
side shelf bracket
B
#10-24x3/8"
screw
left side fascia
A
1/4-20x1/2"
screw
1/4" nut
C
D
E
#8x3/8" self-tapping screw
Large flat washer
1/4-20x1 ½" screw
