Char-Broil T-36D User Manual

7
16
D
E
#10-24x3/8" screw
right side fascia
right side shelf
A
side shelf bracket
B
1/4-20x1/2" screw
#8x3/8" self-tapping
screw
Large flat washer
1/4" nut
C
1/4-20x1 ½" screw

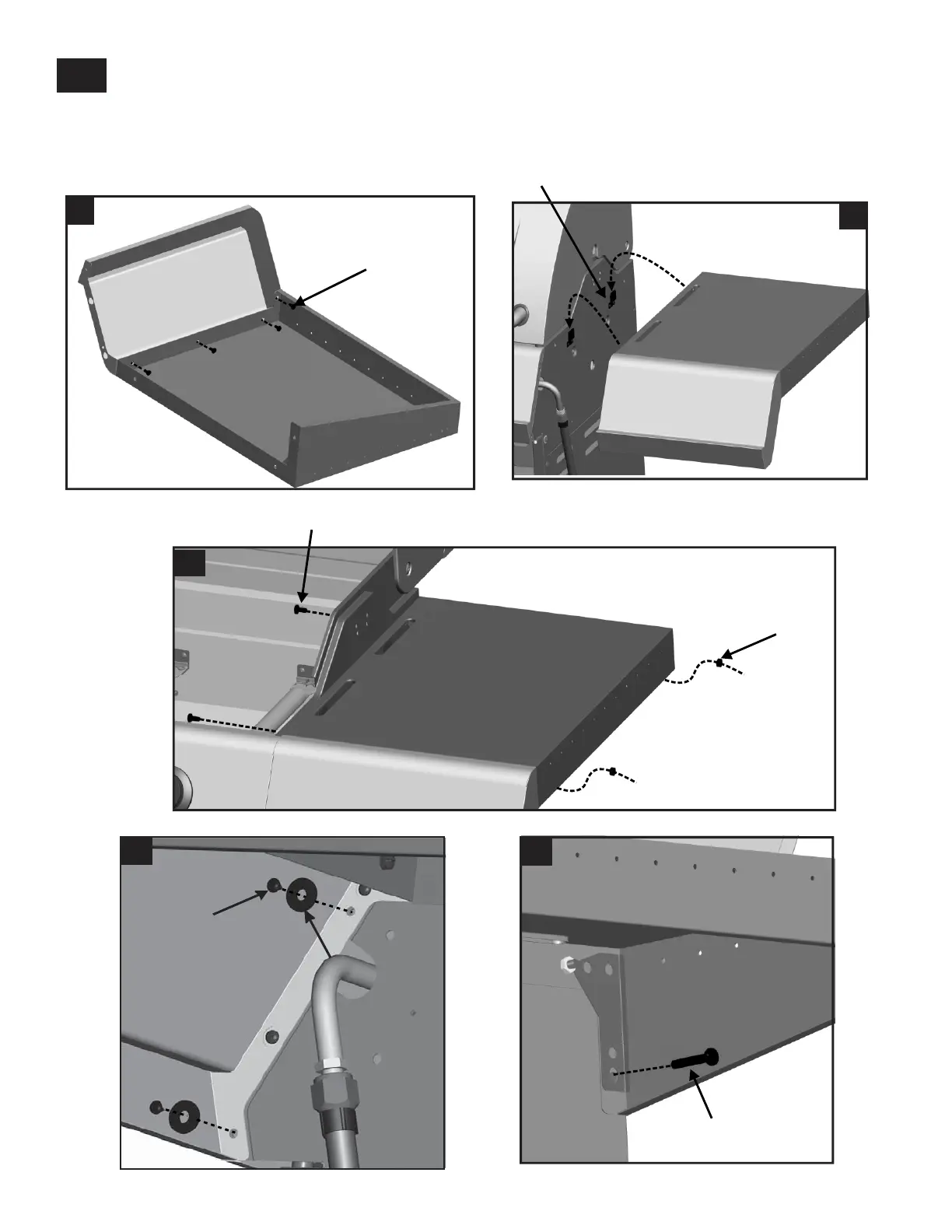

Attach right side fascia to right side shelf using four #10-24x3/8” screws, shown A. Insert flange on right side
shelf into side shelf brackets on right side of firebox, shown B. Attach right side shelf to firebox using two 1/4-
20x1/2” screws and 1/4” nuts, shown C. Attach front of shelf using two #8x3/8” self-tapping screws and large
flat washers, shown D. Attach rear of shelf using one 1/4-20x1½” screw, shown E.

Char-Broil T-36D Specifications

General

Brand	Char-Broil
Model	T-36D
Category	Grill
Language	English
