Upper back panel

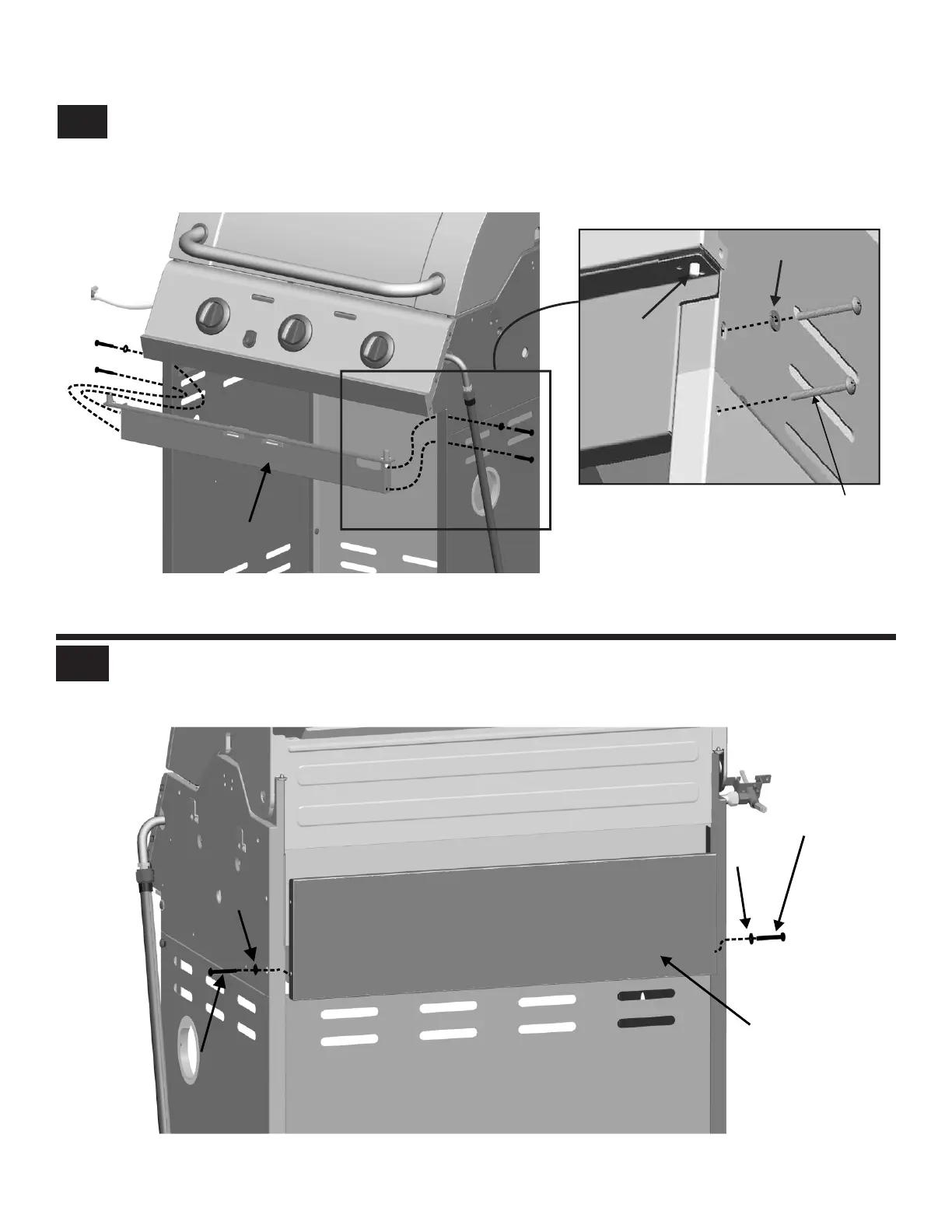

On back of grill, place upper back panel between side panels. Secure upper back panel in lower holes using one
1/4-20x1½” screw and fiber washer on each side.
6
1/4-20x1½”
screw
1/4-20x1½”
screw
Fiber
washer
Fiber
washer
15
1/4-20x1 ½"
screw
fiber washer
Door
Hinge Pin
for clarity of illustration
Note: some parts omitted
Front brace
Note: DO NOT over tighten screws and washers that come into contact with porcelain coated surfaces. Over tightening may
cause the porcelain coating to crack and break, resulting in exposed metal that will be prone to rust.
Insert front brace under control panel and between cart side panels. Make sure door hinge pins are on the top side
and facing the front. Secure upper holes using one 1/4-20x1½” screw and fiber washer on each side. Secure
lower holes using one 1/4-20x1½” screw on each side.
