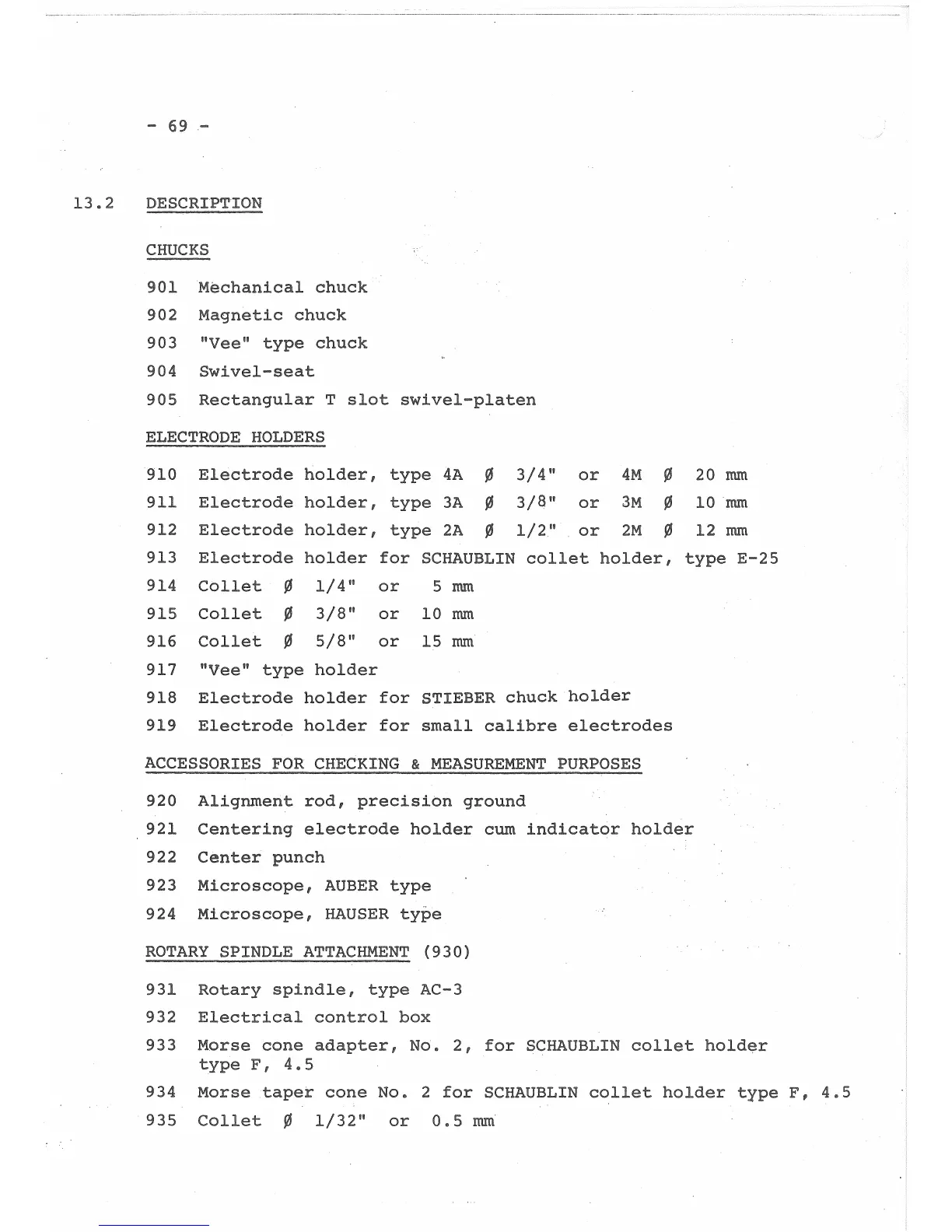

13.2 DESCRIPTION
CHUCKS
901 Mechanical chuck
902 Magnetic chuck
903 "Vee" type chuck
904 Swivel-seat
905 Rectangular T slot swivel-platen
ELECTRODE HOLDERS
910 Electrode holder, type 4A
!iJ
3/4"
911 Electrode holder, type
3A
!iJ
3/8
11
912 Electrode holder,
type
2A
!iJ
1/2"
or 4M
!iJ
20 :mm
or
3M
f£'
10 :mm
or
~
12 mm
913
Electrode holder for
SCHAUBLIN collet holder, type E-25
914
Collet
!iJ
1/4" or
5
:mm
915 Collet
~
3/8
11
or 10 mm
916 Collet
!iJ
5/8
11
or
15 :rnm
917 "Vee" type
holder
918 Electrode holder for
STIEBER chuck
holder
919 Electrode holder for
small calibre
electrodes
ACCESSORIES FOR CHECKING & MEASUREMENT PURPOSES
920 Alignment rod, precision ground
921 Centering electrode holder cum indicator holder
922 Center punch
923 Microscope, AUBER type
924 Microscope, HAUSER type
ROTARY SPINDLE ATTACHMENT {930)
931 Rotary spindle, type AC-3
932 Electrical control box
933 Morse cone adapter, No. 2, for SCHAUBLIN collet holder
type F, 4.5
934 Morse taper cone No. 2
SCHAUBLIN collet holder type F, 4.5
935 Collet !lJ 1/32
11
or 0.5 mm
