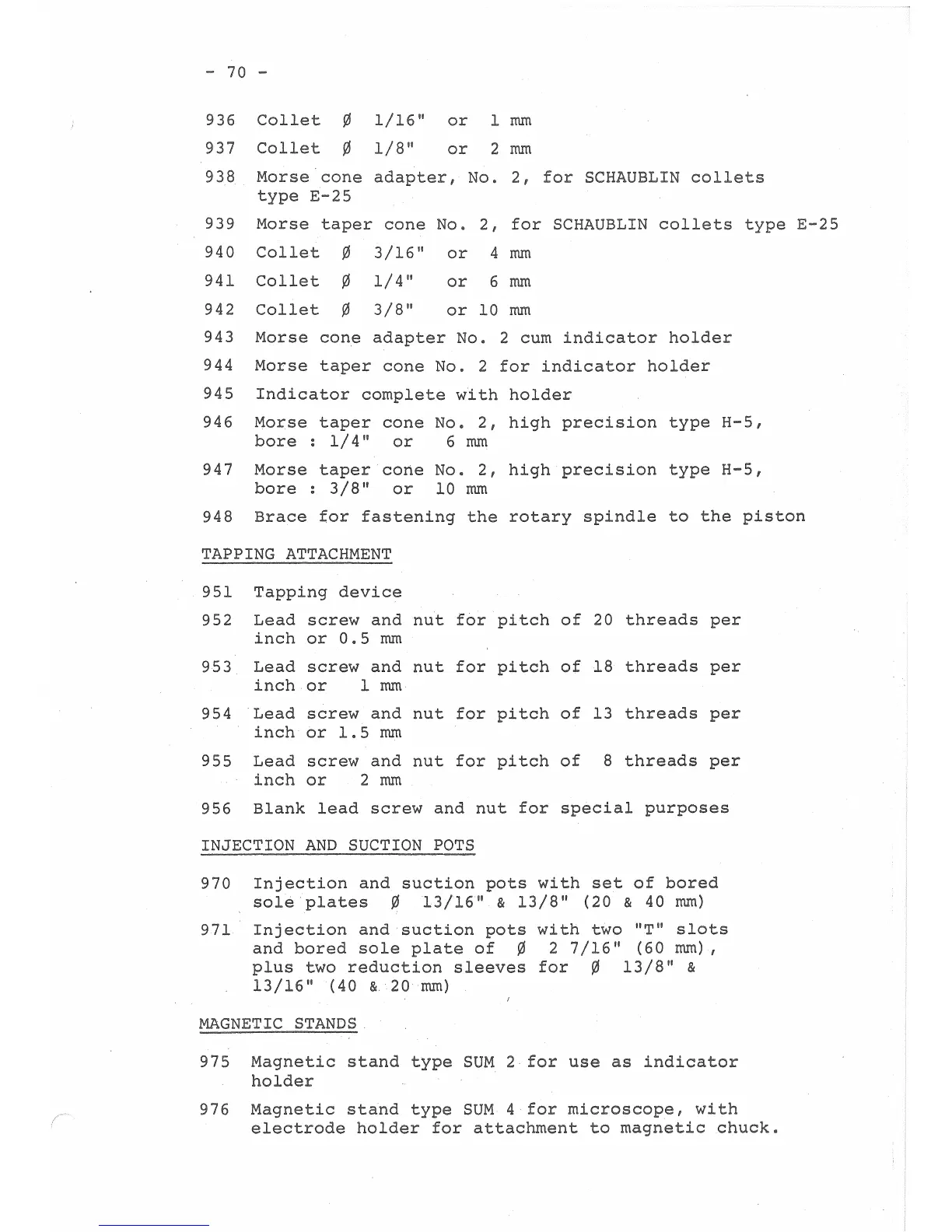

Charmilles E110-D10 - Page 72

- 70 -
Collet
fZl
1/16" or 1 mm
Collet
fZl
1/8
11
or 2 mm
936
937
938
Morse cone
adapter,
No.
2 p
for SCHAUBLIN collets
type E-25
939 Morse taper cone No. 2, for SCHAUBLIN col ts type E-25
940 Collet fZl 3/16'' or 4 mm
941 Col t fZI l/4" or 6 mm
Collet fZl 3/8"
or 10 mm
Morse cone adapter No. 2 cum indicator holder
Morse taper cone No. 2 for indicator holder
Indicator complete with holder
942
943
944
945
946
Morse taper
cone
No.
2 '
high precision
type H-5
bore :
1/4" or
6 mm
947 Morse taper
corte No.
2, high precision
type H-5,
bore
.
3/8
11
or 10 mm
.
948 Brace f'or fastening
rotary spindle to the
TAPPING ATTACHMENT
951 Tapping device
952 Lead
screw and
nut for
pitch of 20 threads
per
inch or 0.5 mm
953 Lead screw and nut for pitch of 18
threads per
inch
or lmm
954
Lead
screw and
nut
for
pitch
of
13
threads per
inch or 1.5 mm
955 Lead screw and
nut
for pitch of 8 threads
per
inch or 2 mm
956
Blank lead screw and nut for
special purposes
INJECTION AND SUCTION POTS
970 Injection and suction pots th set of bored
sole plates fZl 13/16
11
& 13/8" (20 & 40 mm)
971 Injection and suction pots with two "Tu slots
and bored sole plate of fZl 2 7/16" (60 rnm),
plus two reduction s s for fZl 13/8" &
13/16
10
(40 & 20 mm)
MAGNETIC STANDS
975 Magnetic stand type SUM 2 for use as indicator
holder
976 Magnetic st type SUM 4 for microscope, with
piston
electrode holder attachment to magnetic chuck.
