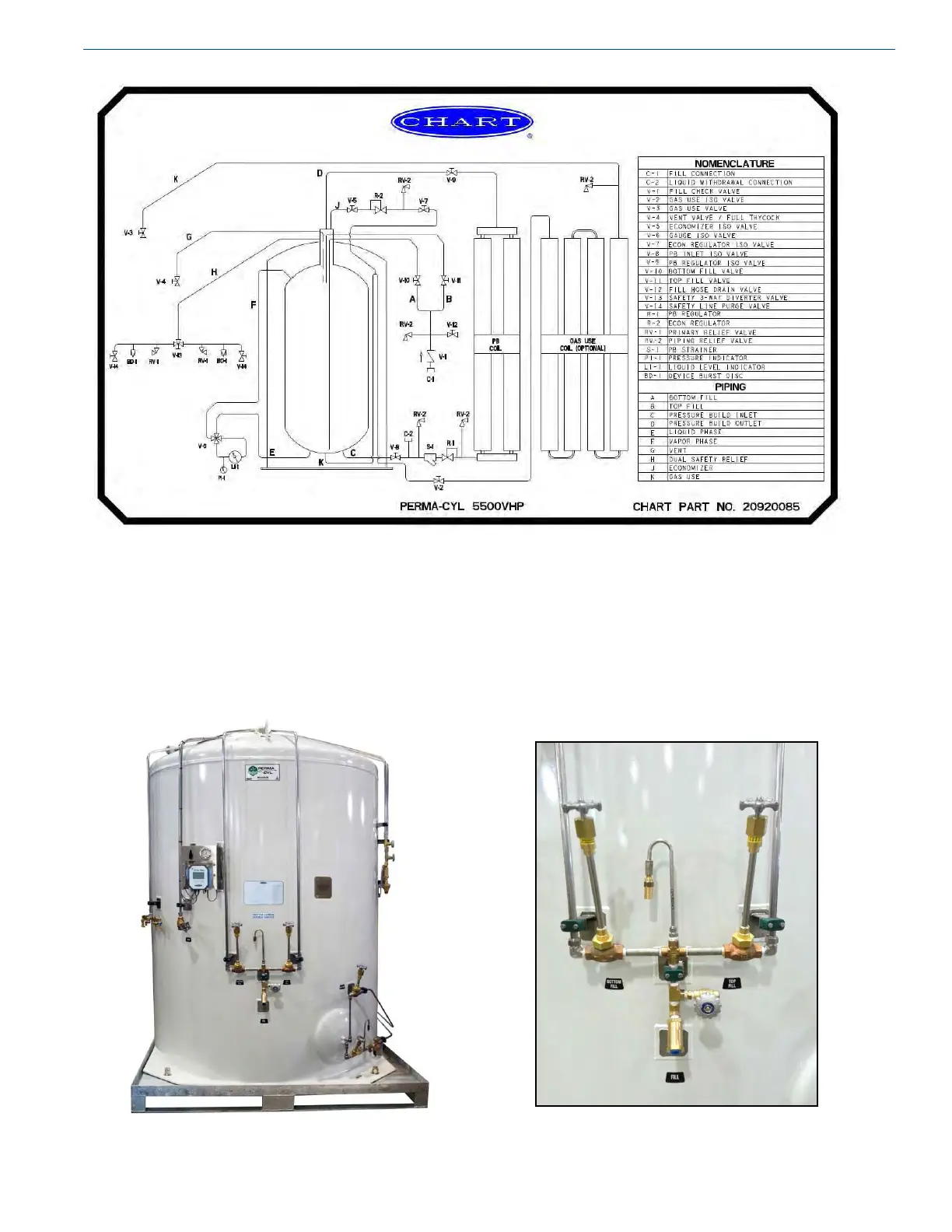

Figure 3 - Schematic with vaporizer for 5500 MP/VHP models.
5500 MP/VHP Primary Plumbing Circuits
(Refer to Figure 3)
Fill
The standard ll plumbing circuit is exactly the same as all
the other Perma-Cyl models (refer to page 8, Fill). A bulk
ll connection option kit is offered to add a 1-1/2" CGA
connection in place of a standard are tting.
Photo 6 - Fill Circuit
5500 MP/VHP Operation
For the 5500 model, a single external vaporizer provides
all pressure building vaporization. An optional 3500 SCFH
hang-on or optional 5000 SCFH stand alone vaporizer may
be added to the plumbing to provide all process vaporization.
This plumbing conguration is referred to as Option 07 and
is unique to the 5500 model.
Photo 5 - Perma-Cyl 5500 VHP
