CHART CryoDoser FleX - Electro-Mechanical Connections; Installing the Nozzle

7
InstallationProduct Manual - CryoDoser FleX
™
LN
2
Dosing System
Electro-Mechanical Connections

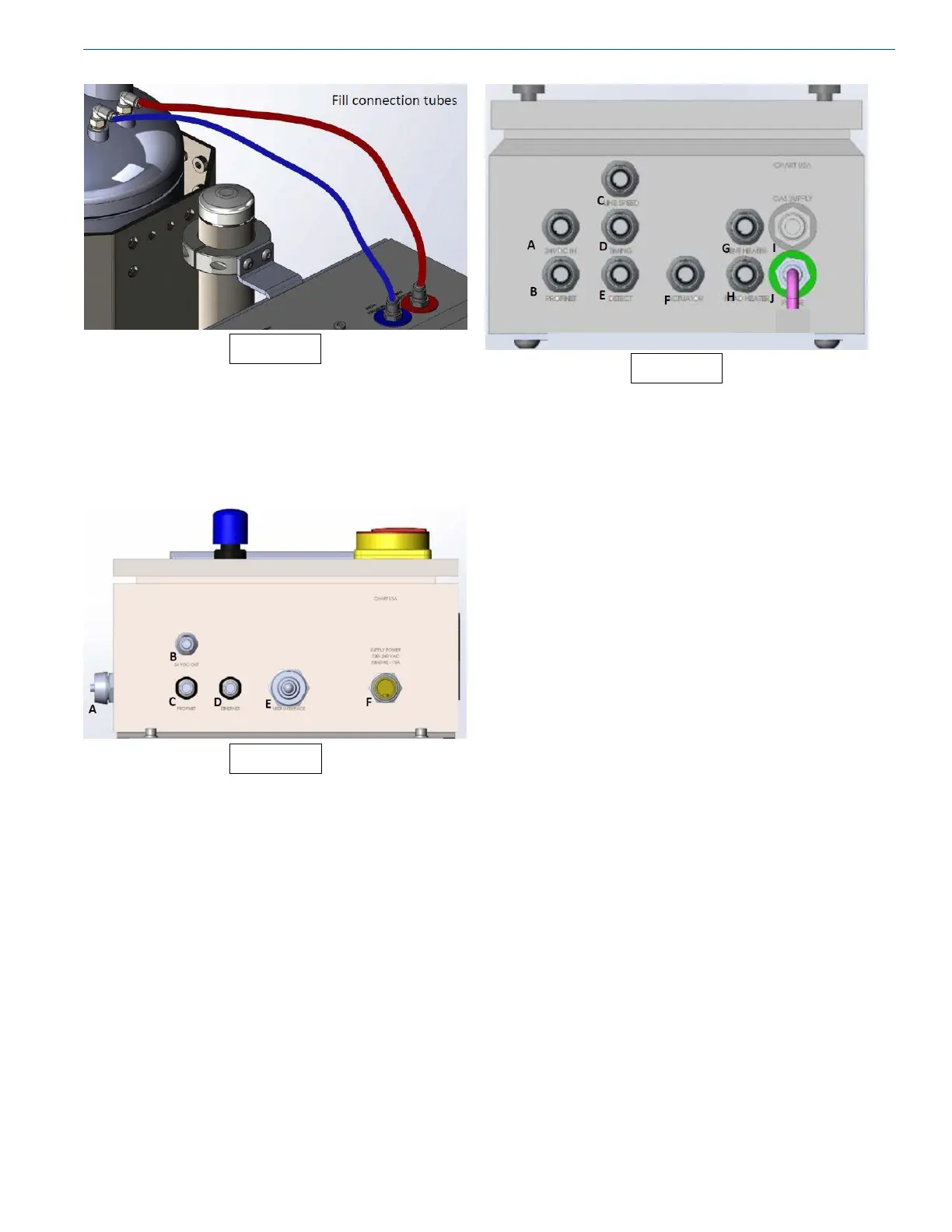

The bottom of the Control and Interface boxes are provided
with connectors and ttings for communication, power, and
gaseous nitrogen feed. Depending on system conguration,
not all connectors will be utilized.
A. USB Port Connector - Use this port with a USB
memory stick to load any future software changes/
upgrades.
B. 24 VDC Out Connector - DC power from the Control
box to Interface box. Connect the DC power cable.
C. Pronet Connector - Industrial Ethernet. Connect
the Green Ethernet cable to the Ethernet port of the
Interface Box.
D. Ethernet Connector - Used only when external
communication is to be used.
E. User Interface Connector - High end applications
when I/O signals will be exchanged between the dosing
system and lling lines.
F. AC Power Connector - Connect the AC power cord to
a 110VAC Outlet.
A. 24VDC IN Connector - Connect DC cable from the
control box to this connector.
B. Pronet Connector - Connect the green Ethernet cable
from the control box to this connector.
C. Line Speed Connector - For systems that will be using
either an encoder or speed sensor, connect the encoder
or speed sensor cable to this connector.
D. Timing Connector - All systems will use this connector
to detect a container or container pocket (all Craft
Custom users, connect the container sensor cable to this
connector).
E. Container Detect Connector - For Pack Premier users,
connect the container detect cable to this connector.
F. Actuator Connector - Connect either the EDS or
EASE actuator cable to this connector.
G. Vent Heater Connector - The short heater cable
connects to this connector.
H. Head Heater Connector - The longer heater cable
connects to this connector.
I. Gas Supply Fitting - Main gas inlet. Connect the black
polytube.
J. Purge Fitting - Connect the polytube to the tting on
the actuator.
Installing the Nozzle
Three nozzles are supplied with the CryoDoser FleX system
(0.040 inch, 0.050 inch, and 0.060 inch). Custom sizes may
be ordered from Chart.
1. Remove the dosing head heater.
Image 6
Image 7
Image 8
