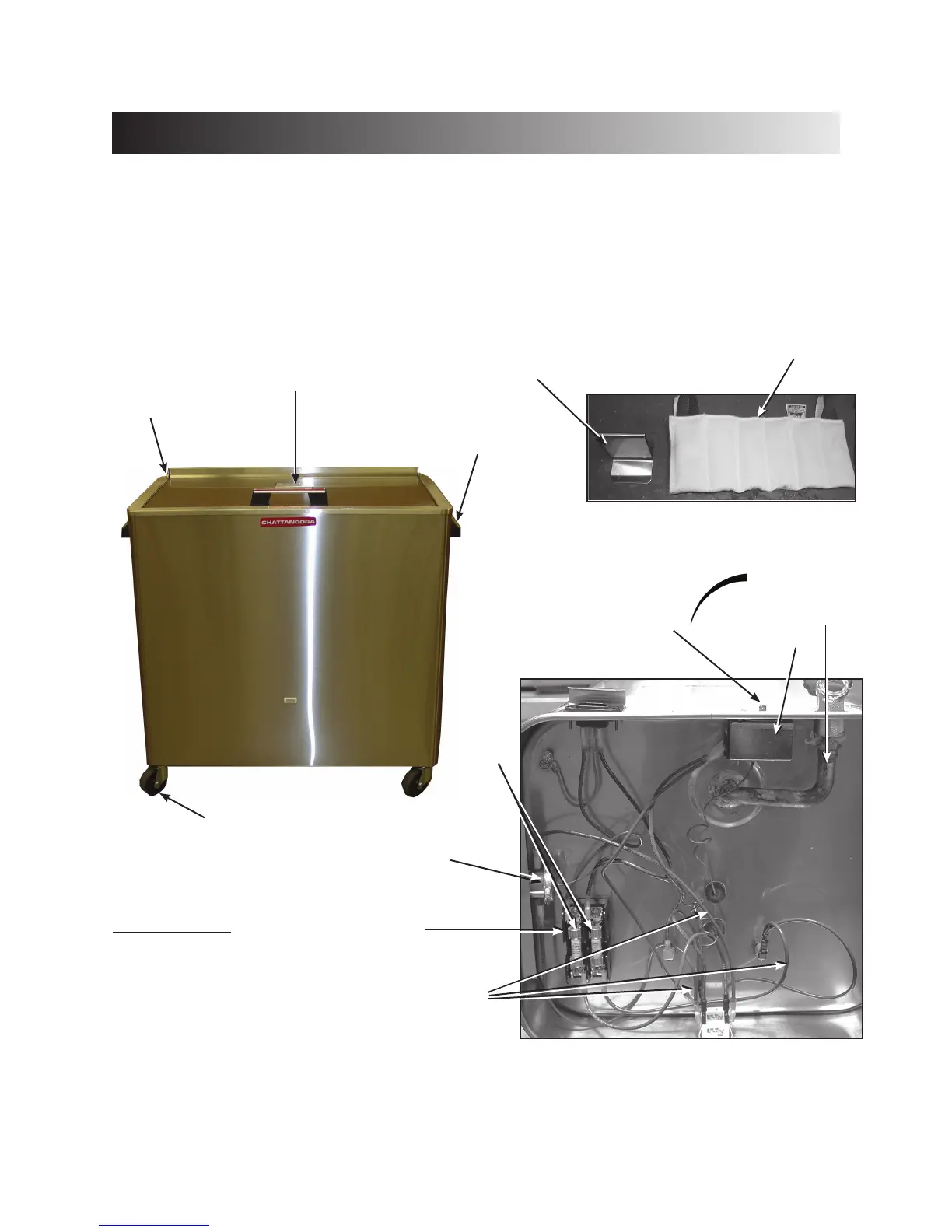

Chattanooga hydrocollator - Component Identification (Continued); Further Component Diagrams; Bottom View (J-Box Open)

7
NOMENCLATURE
Hydrocollator
®
Heating Units
16. Lid Hinge Rod 22. Thermostat, Hydraulic
17. Lid Knob/Handle 23. Drain, Copper Tube
18. Side Handle 24. Fuses
19. Caster, 3-inch (M-2, M-4, and SS-2 only) 25. Overtemp Thermostat
20. Neck Pac Insert 26. Fuse Block
21. HotPac 27. Internal Wiring Harness
21
20
17
Diagram (CONTINUED)
Not illustrated:
28. Stainless Steel Wire Rack
29. DrainValve, Ball - 1/2 in Replacement
30. Drain, Hose, Bib
31. Replacement Tank
32. Outer Jacket
33. Handle, Lid Kit
34. Water Thief
35. Bracket, Element Support (2 each) [M-4 only]
36. Plastic Feet
37. Hose, Drain
16
23
22
26
27
25
Thermostat
Intensity
Control
24
NOTE: M-4 model shown above. Nomenclature also applies to M-2, SS-2, SS, E-1, and E-2 models.
19
18
Bottom View (Upside Down)
(J-Box Open)
