iGage X9x User Manual page 18 of 53
NOTE: If you choose to manually setup a Bluetooth
connection to a CHC base or rover, then you may need
a passcode. The default passcode is ‘0000’.
Using SurvCE to establish the Bluetooth connection (the
preferred method) will automate the process and no
code is needed.

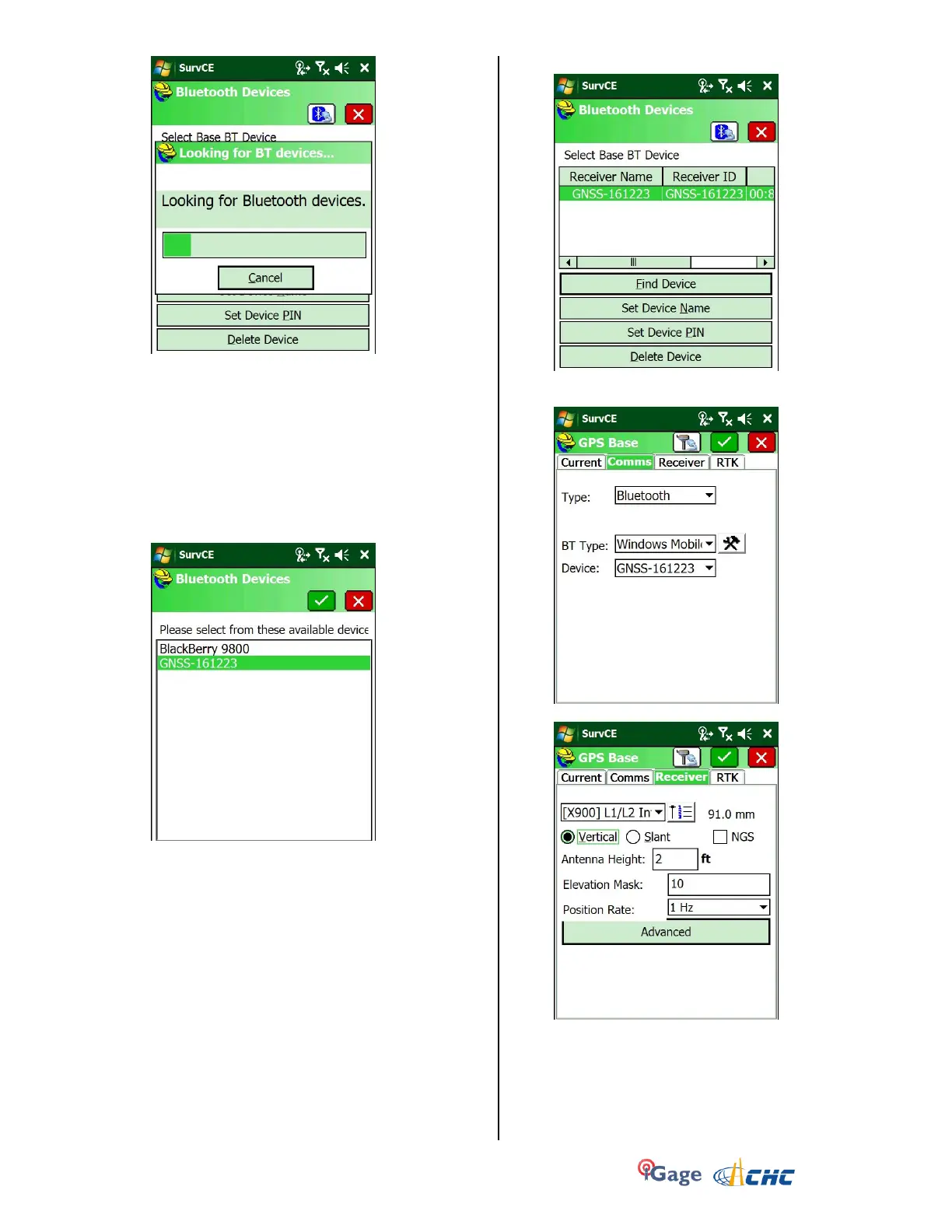

13. Select the correct receiver, the listed name matches the
device serial number:
14. Click on the green check mark:
15. Click on the blue and white Bluetooth icon button to
the left of the red X:
16. Select the Receiver tab:
NOTE: for most applications 1Hz is preferred on the
Base. With 1 Hz on the base, it is still possible to select
2 or 5 Hz on the rover.
Make sure the ‘Antenna Height is correct for your
tripod configuration. You can type “2M”:
