CHC X91+ - X9 X 10-Pin Connector; X9 X GPS to PC Data Cable

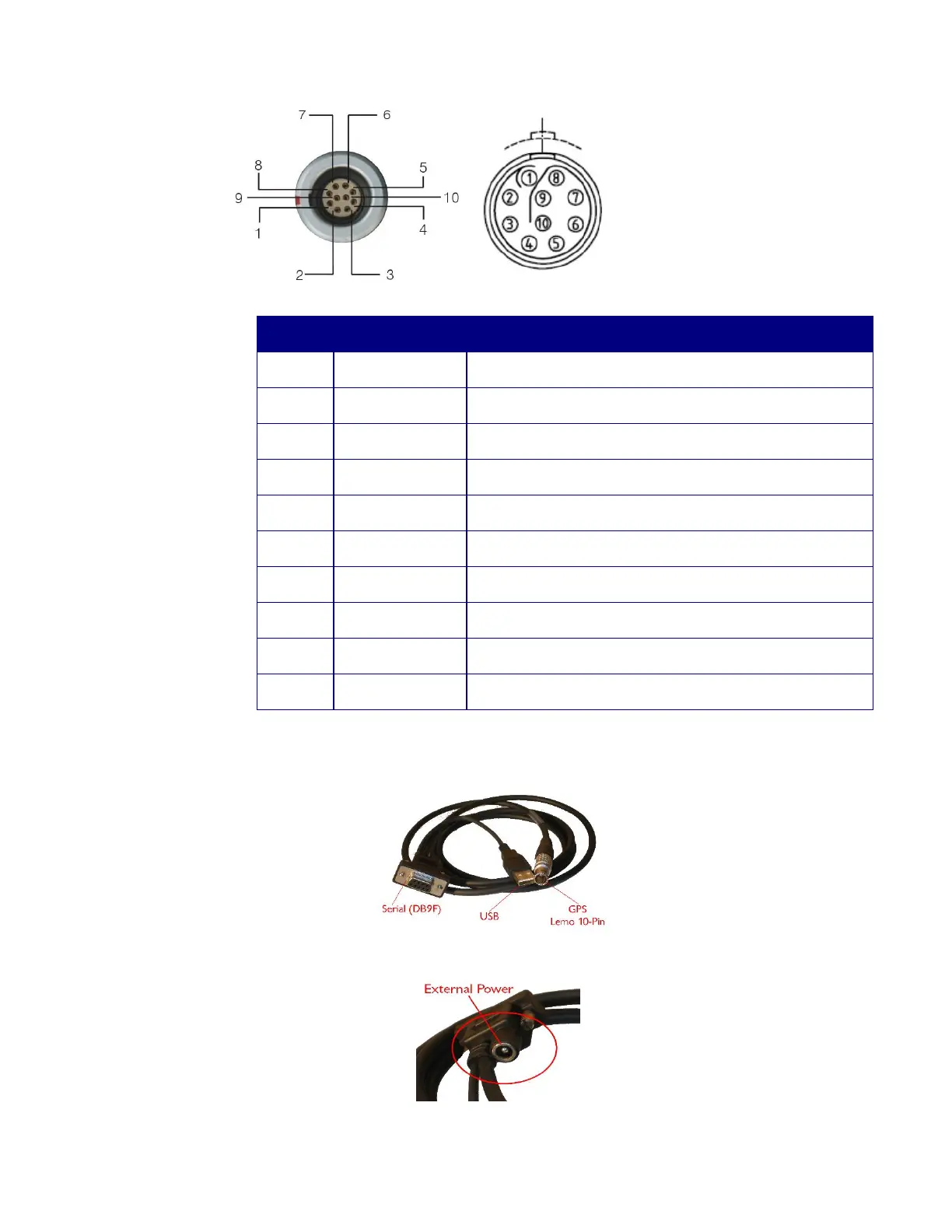

X9x 10-Pin Connector
PIN
Signal Name
Description
1
TXD
Transmit Data(PC receive data through this pin)
2
RXD
Receive Data(PC transmit data through this pin)
3
PWR
External Power Input (9-15 V DC)
4
PWR
External Power Input (9-15 V DC)
5
GND
External Power Ground
6
GND
External Power Ground
7
USB PWR
USB Power
8
D-
USB Data-
9
D+
USB Data+
10
(Txd2)
Optional (High Speed Data Output)
X9x GPS to PC Data Cable
The supplied interface cable includes connections for GPS, USB, Serial and External Power:
Interface Cable
External Power
