29.

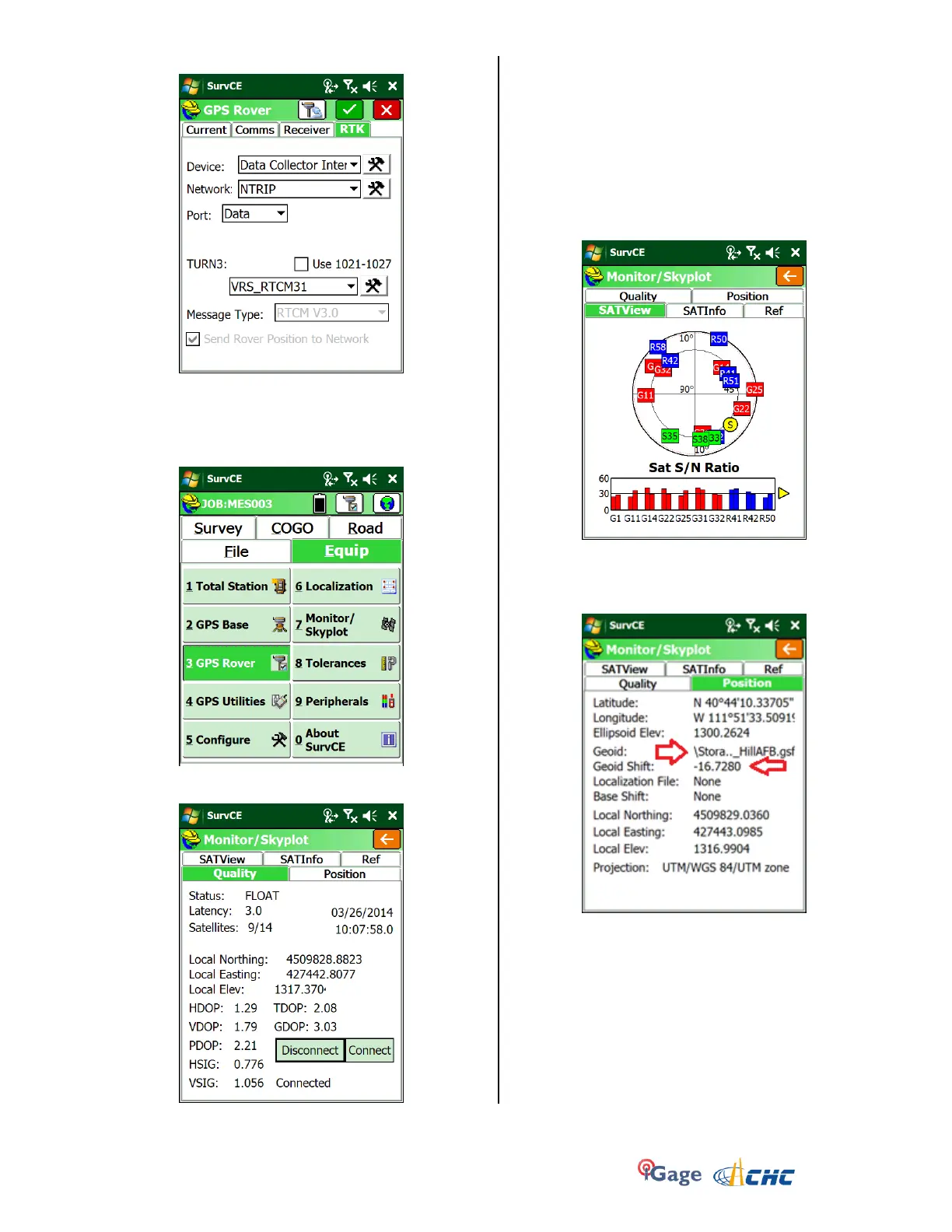

Click the Green checkmark again to configure the
rover and connect to the network.
You will see “Waiting for Reading, Initialize
Modem, Connect to Network”.
30. Finally you will return to the main menu:
31. You can check if all is well using “Equip: 7 Monitor
Skyplot”:
within 20 seconds after the receiver makes a
network connection, it should show “Status:
Float.”
The Latency should be less than 5 seconds.
The Satellite count should be reasonable.
The HSig should be dropping.
After some period of time, the status will change
to FIXED.
32. If fixing is difficult, check the SAT View screen:
There should be a US SV (red) in every quadrant;
there should be a GLONASS SV (blue) someplace.
33. You can verify that the GEOID is loaded and in use
on the Position tab:
The Geoid Shift should be negative and the Local
(orthometric) elevation should be above the
Ellipsoid elevation as shown above.
