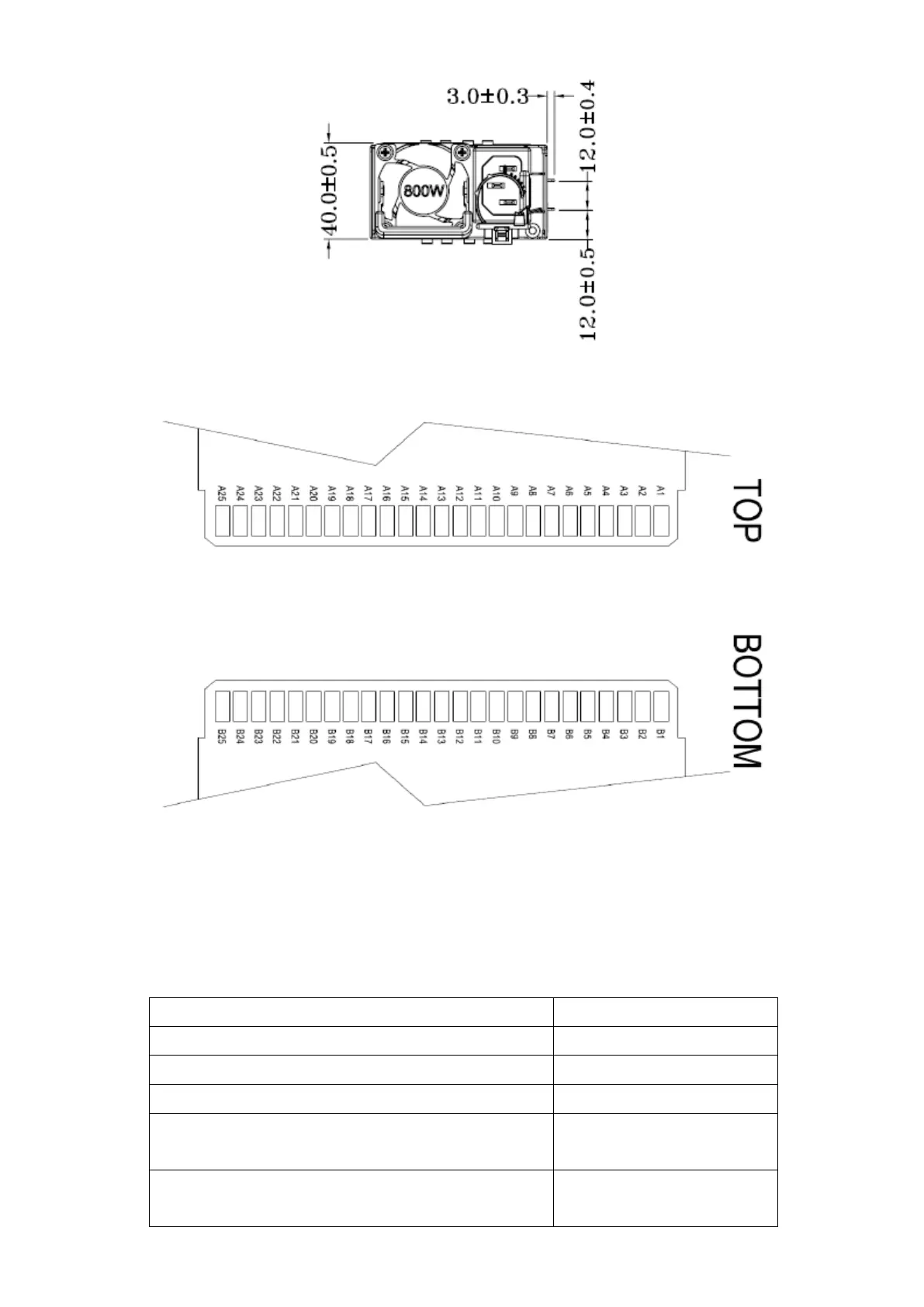

Figure 14. FSP800W-20ERM Power Supply Mechanical drawings
Figure 15. FSP800W-20ERM Card Edge Diminsion
3.1.2 LED Marking and Identification
The power supply shall have two LED for indication of the power supply status.
Table 7.LED Status Information
Power supply condition
Power supply LED
Output ON and OK
Green
No AC power to all PSU
OFF
AC present/only standby output on
1 Hz Flashing Green
AC cord unplugged or AC power lost;with a second power
supply in parallel still with AC input power.
Amber
Power supply warning events where the power supply
continues to operate;high temp,high power,high
1Hz Blink Amber
(0.5s:OFF; 0.5s:Amber)
