RM23712 TPS
53

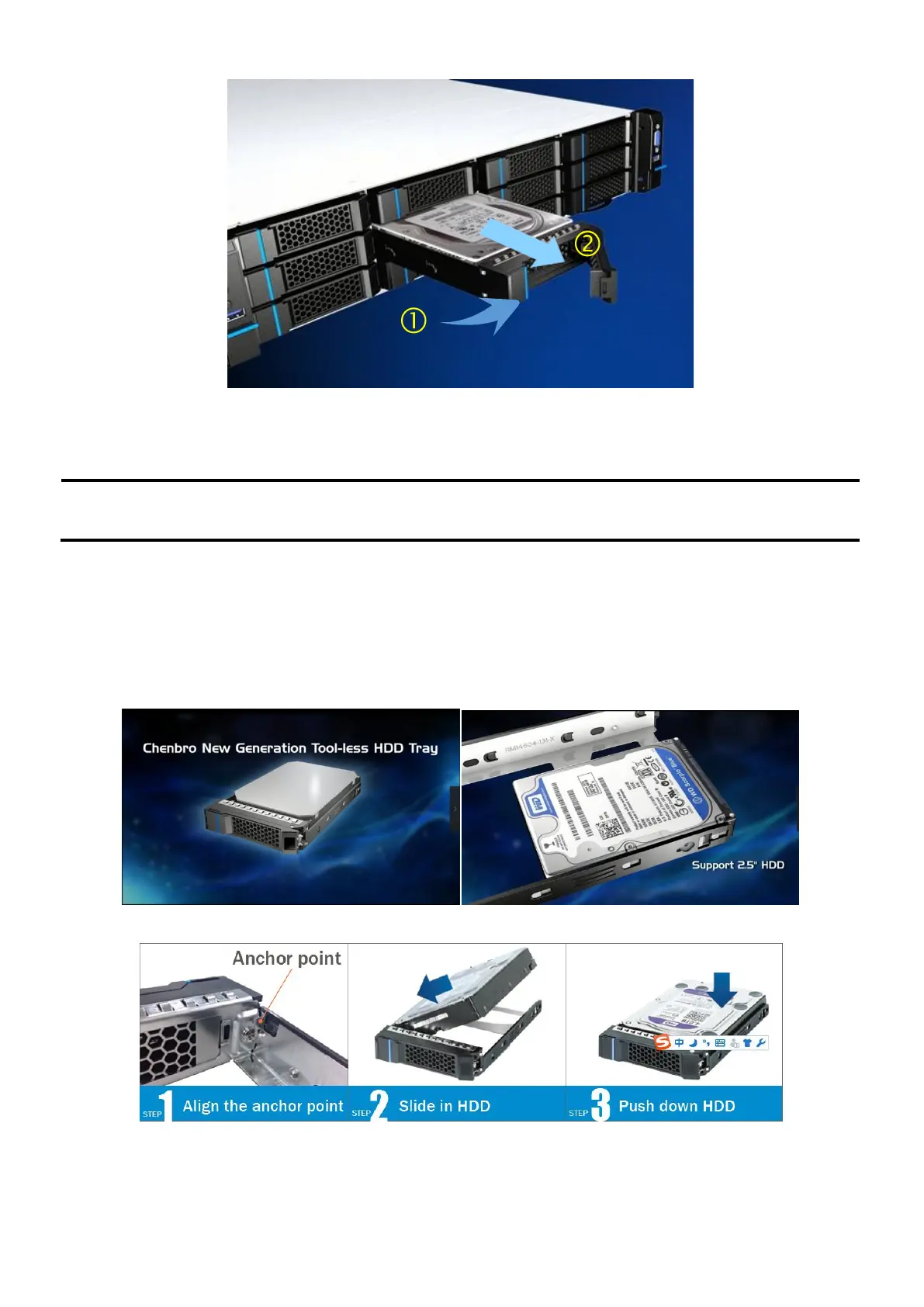

Figure 28. Hot Swap Storage Device Carrier Removal
NOTE: To ensure proper system air flow requirements, all front drive bays must be populated with
a drive carrier. Drive carriers must be installed with either a drive or supplied drive blank.
There are drive carriers to support 2.5” devices and 3.5” devices. To maintain system thermals, all
drive bays must be populated with a drive carrier mounted with a hard disk drive, SSD, or supplied
drive blank. Drive blanks used with the 3.5” drive carrier can also be used to mount a 2.5” SSD into
it as shown below.
Figure 29. 2.5’’ SSD mounted to 3.5’’ Drive Tray
Figure 30.3.5''HDD Installation
