RM23712 TPS
17
current,slow fan.
Power supply critical event causing a
shutdown;failure,OCP,OVP,Fan Fail
Amber
Power supply FW update mode
2Hz Blink Green

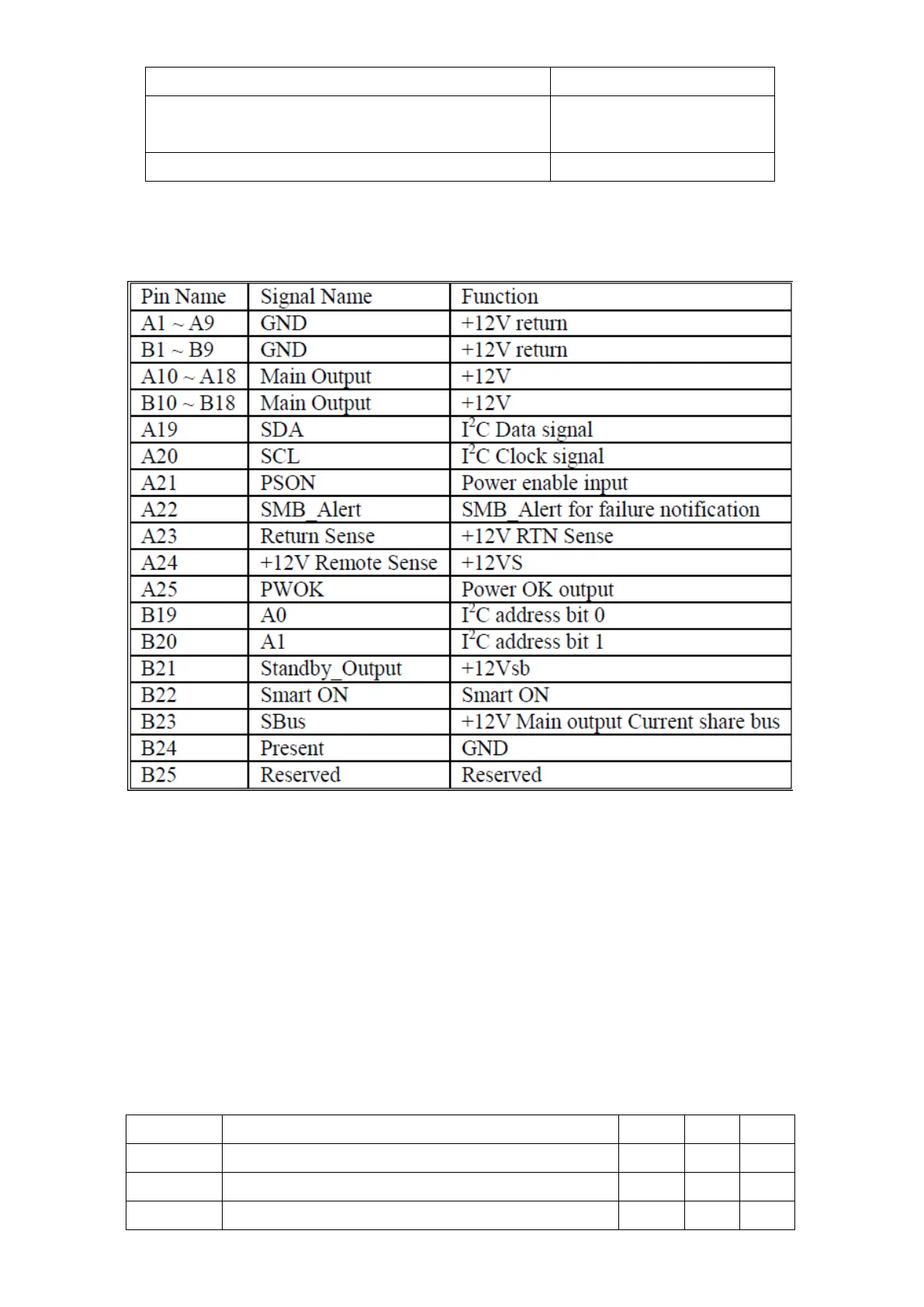

3.1.3 Power Supply Card Edge Pin-Out
Table 8.LED Status Information
3.1.4 Environmental Requirements
The power supply shall operate within all specified limits over specified condition in 2.3.
The defined operation condition include temperature, humidity, altitude, shock and vibration.
3.1.4.1 Temperature and Humidity Requirements
The power supply shall operate within all specified limits over Top temperature range and specified
humidity Range. All airflow shall pass through the power supply and not over the exterior surfaces of
the power supply.
The power supply shall withstand thermal storage specified in Tnon-OP without any damage.
Table 9.Temperature Requirements
Item
Description
MIN
MAX
Unit
Top
Operation temperature range.
0
50
oC
Tnon-OP
Non-Operating temperature range
-40
70
oC
HOP
Operating humidity range, non condensing
90
%
