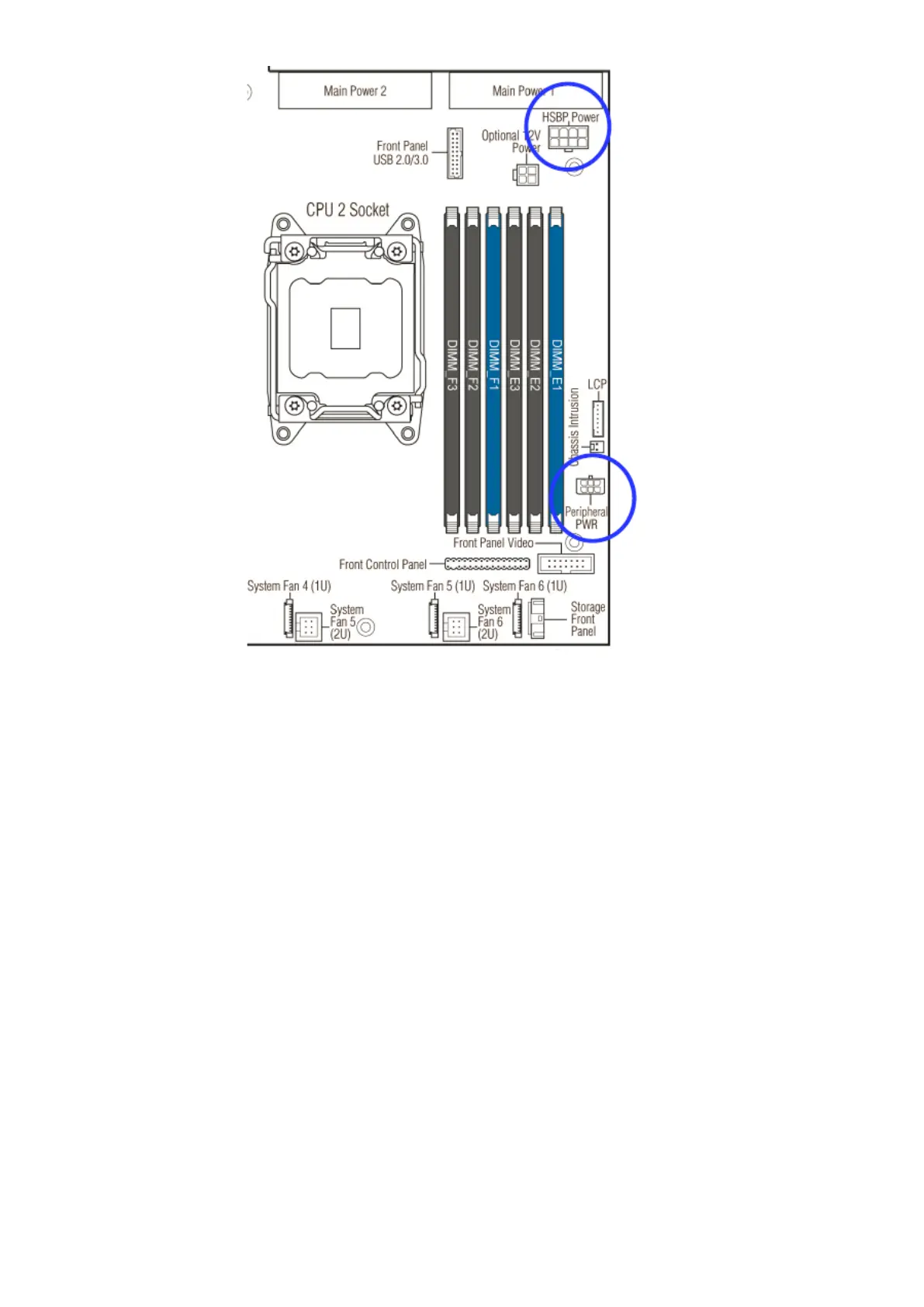

Figure 33.Server Board Peripheral Power Connectors
HSBP Power – The hot swap backplane power connector provides power for all front mounted
backplane options. Appropriate power cables to support any given backplane option will be
included with the given system model or given backplane accessory kit. See Table 27. Hot Swap
Backplane Power Connector Pin-out (“HSBP PWR").
Peripheral Power – The “Peripheral_PWR” connector is used to provide power to various add-in
options including: Optical SATA Drive, internal mounted SSD Storage devices, and the 2 x 2.5” Rear
Mount Hot Swap Backplane Accessory Kit. Appropriate power cables to support any supported
peripheral option will be included with the given system model or given accessory kit option.
5.5 Storage Backplane Optional
RM23712 has support for two backplane options.
 12 x 3.5” Mini SAS HD backplane
All available backplane options mount directly to the back of the drive bay as shown in the
following illustration.
