CHERUBINI A510073 - Safety Instructions; Technical Features; Electrical Connections

SAFETY INSTRUCTIONS
- Only professional technicians must perform installation, complying
with all safety instructions, especially those regarding electrical
connections.

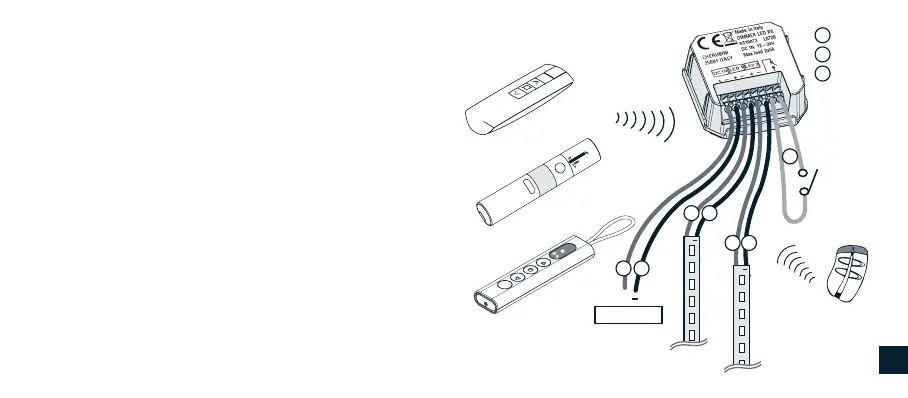

ELECTRICAL CONNECTIONS
17
Red+
Black -
Blue
TECHNICAL FEATURES
- Power Supply 12V - 24 V dc
- Max power 12 V 2x60 W
- Max power 24 V 2x120 W
- Decoder System CRC
- Operating temperature -10°C +55°C
- Dimensions (mm) 48,5 x 48,5 x 22
- Weight 30 g
- Protection degree IP20
Optional
control
12/24 V dc
+
STRIP LED 2
STRIP LED 1
+
+
A530058 Remote
Control with 4
independent
channels
GIRO Series
POP Series
SKIPPER Series
1 2
3
1
2
3
1 2
1 2
