MODE 2L (two independent loads)
This mode allows you to control the Led Dimmer RX outputs
independently from each other.

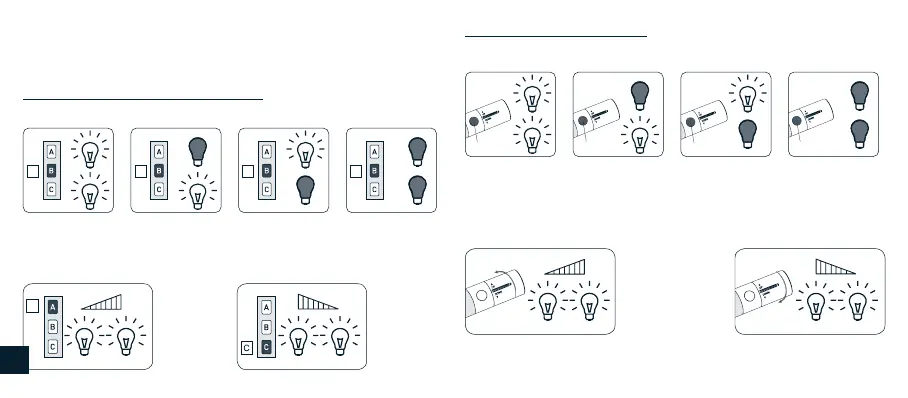

Skipper/ POP series remote controls
Button B (stop) turns outputs 1 and 2 on and off in the sequences below:
1 1 1 1
2 2 2 2
B B B B
ON 1/2 OFF 1/ON 2 ON 1/OFF 2 OFF 1/2
With the outputs switched on, each time the button is pressed long (>1sec),
outputs 1 and 2 both change in brightness as in the indications below:
With the outputs switched on, with each long rotation (>1 sec),
outputs 1 and 2 both change in brightness as in the indications below:
1
2
A
+
+-
1
2
+ -
DIM+ 1/2
Button A
increases the
brightness of
the outputs
that are on.
DIM- 1/2
Button C
decreases the
brightness of
the outputs
that are on.
Giro series remote controls
The STOP Button turns outputs 1 and 2 on and off, as in the sequence:
1 1 1 1
2 2 2 2
ON 1/2 OFF 1/ON 2 ON 1/OFF 2 OFF 1/2
STOP
STOP
STOP
STOP
UP
1
2
+
+-
DOWN
1
2
+ -
Rotate in the UP
or DOWN direction
to change the
brightness of
outputs 1 and 2.
DIM+ 1/2 DIM- 1/2
